51 13 402 Removing and installing handle strip (on trunk lid)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

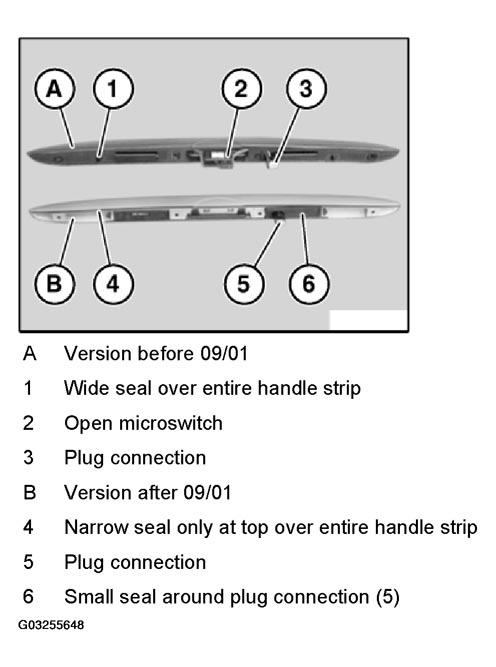

Difference between versions before and after 09/01:

A: Version before 09/01.
1. Wide seal over entire handle strip.
2. Open microswitch.
3. Plug connection.
B: Version after 09/01.
4. Narrow seal only at top over entire handle strip.
5. Plug connection.
6. Small seal around plug connection (5).

Installation:

In version (B), closed expansion nuts and shorter screws (3.5 x 13 mm) must be used.

Fig 1: Identifying Different Handle Strip Versions

Courtesy of BMW OF NORTH AMERICA, INC.

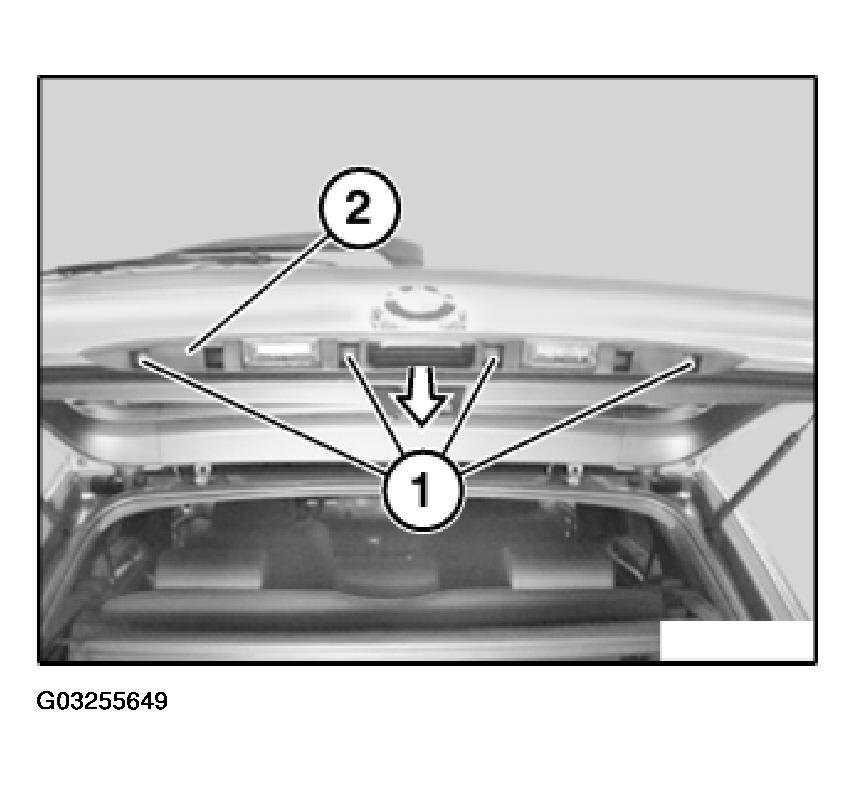

Release screws (1) and withdraw handle strip (2) somewhat.

Fig 2: Locating Handle Strip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

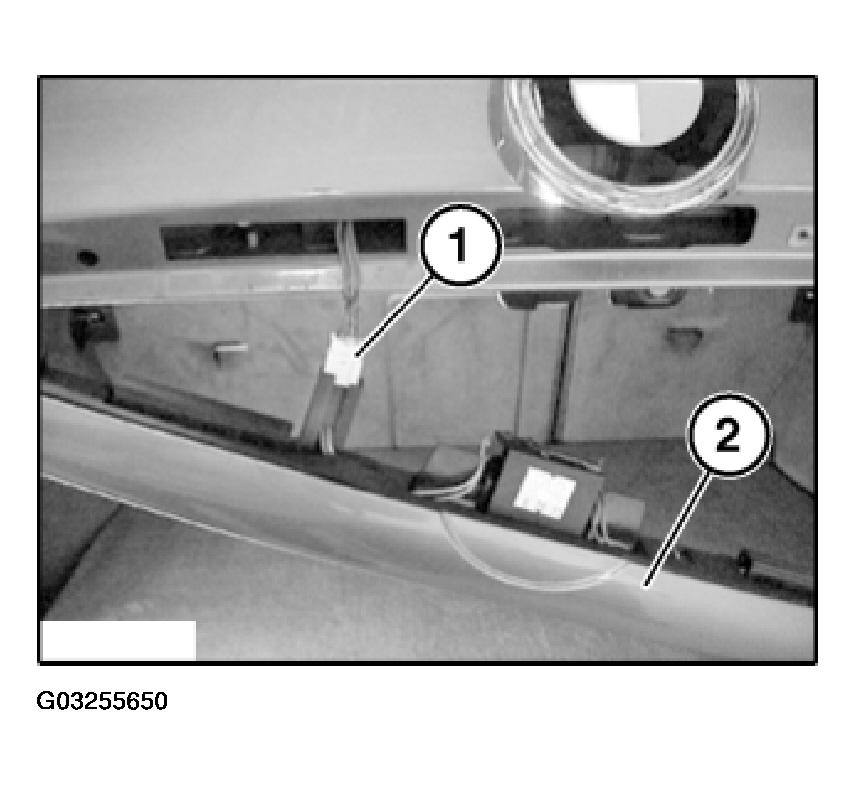

Disconnect plug connection (1) and remove handle strip (2).

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal(s) of handle strip (2) must not be damaged.

Tightening torque, (2.5 N.m.).

Perform function check with trunk lid open.
