51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Remove rear entrance cover strip (2).

Partially remove mucket from B-pillar finisher.

Unclip clips (1) in lower panel.

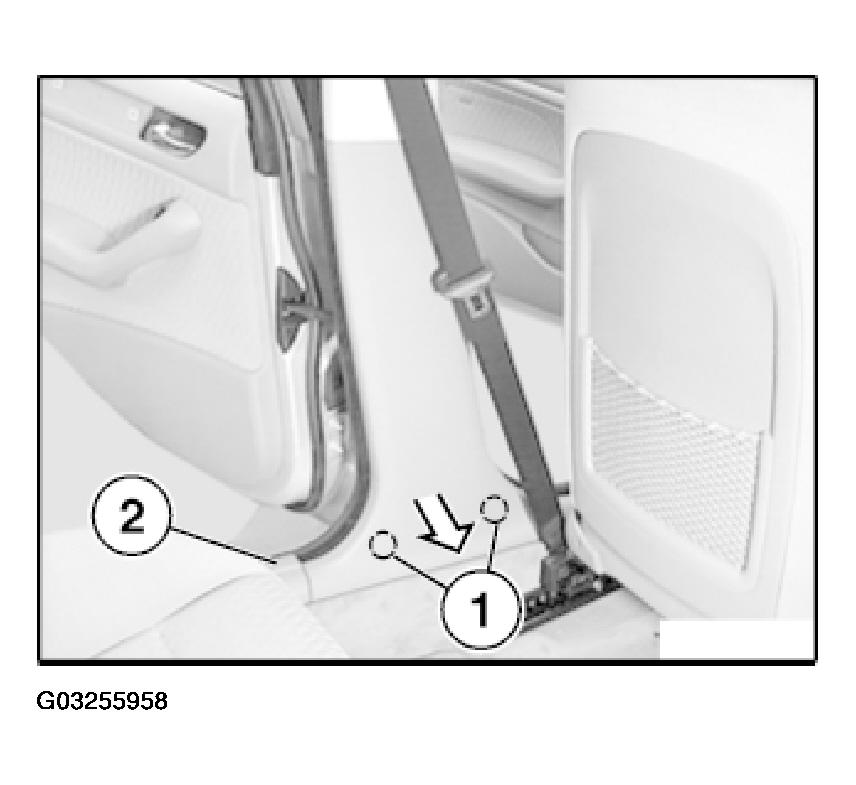

Fig 1: Unclipping Lower Clips In Lower Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (1) in lower panel.

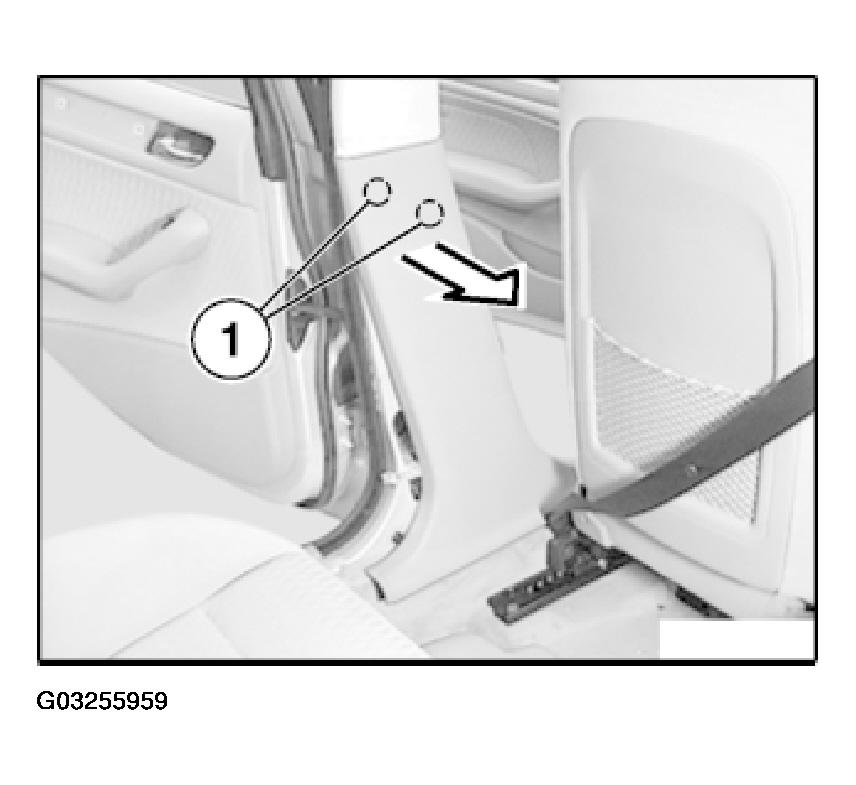

Fig 2: Unclipping Upper Clips In Lower Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clip (1) in upper panel.

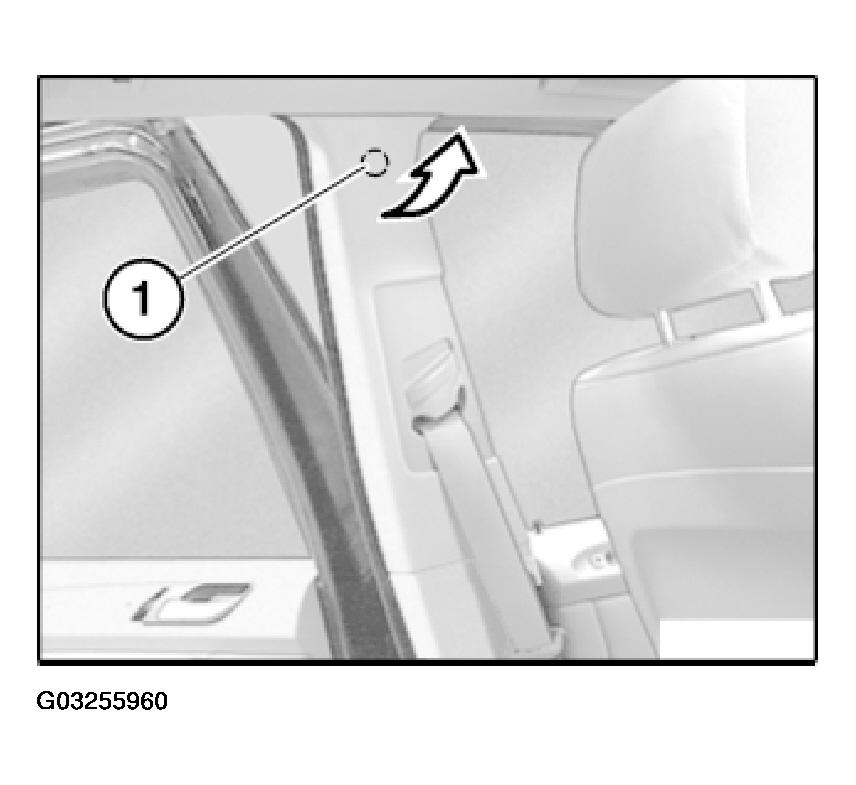

Fig 3: Unclipping Clip In Upper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt upper panel upwards as far as possible.

Installation:

If necessary, replace defective clip (1).

Belt adjustment fixture (2) must enclose head of belt screw (3).

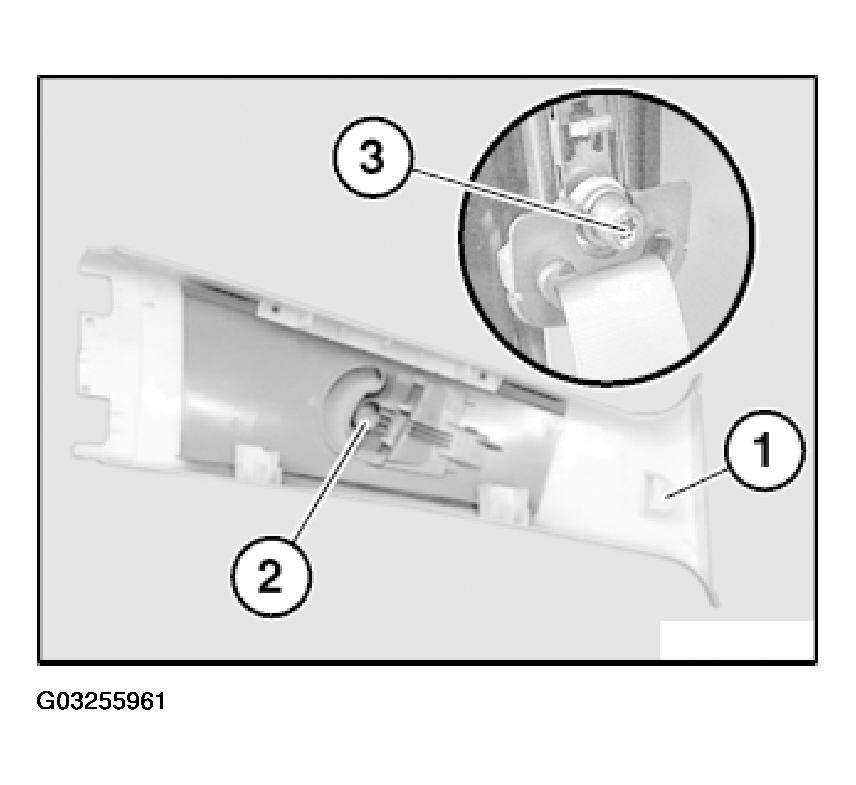

Fig 4: Locating Belt Screw In Belt Adjustment Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lower panel (1) carefully from upper panel (2).

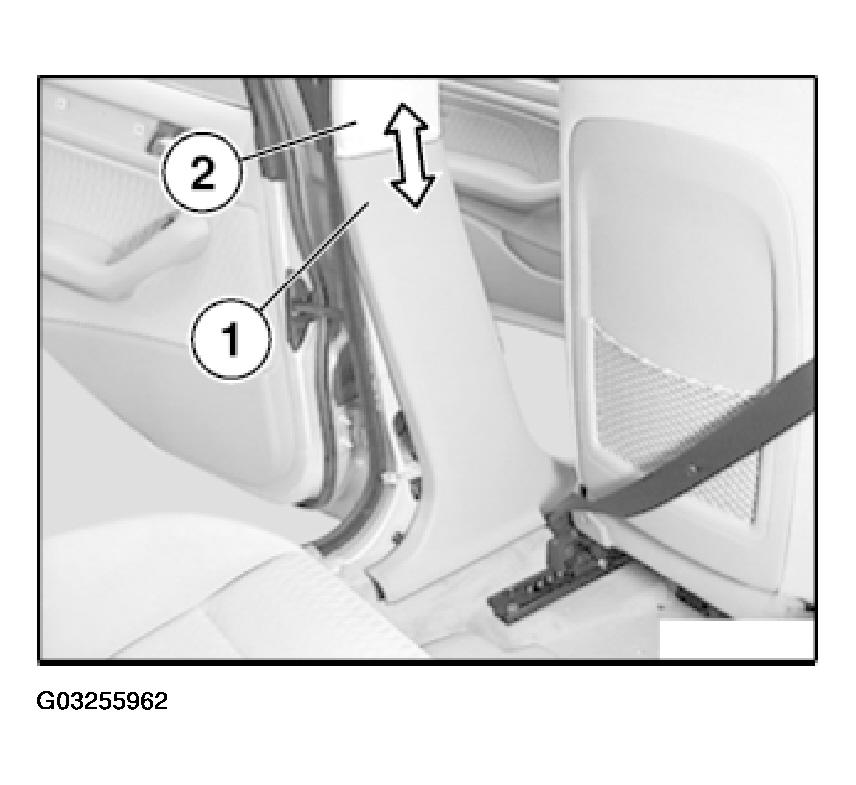

Fig 5: Detaching Lower Panel From Upper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective clips (1).

Guides (2) on trim (3) must not be damaged.

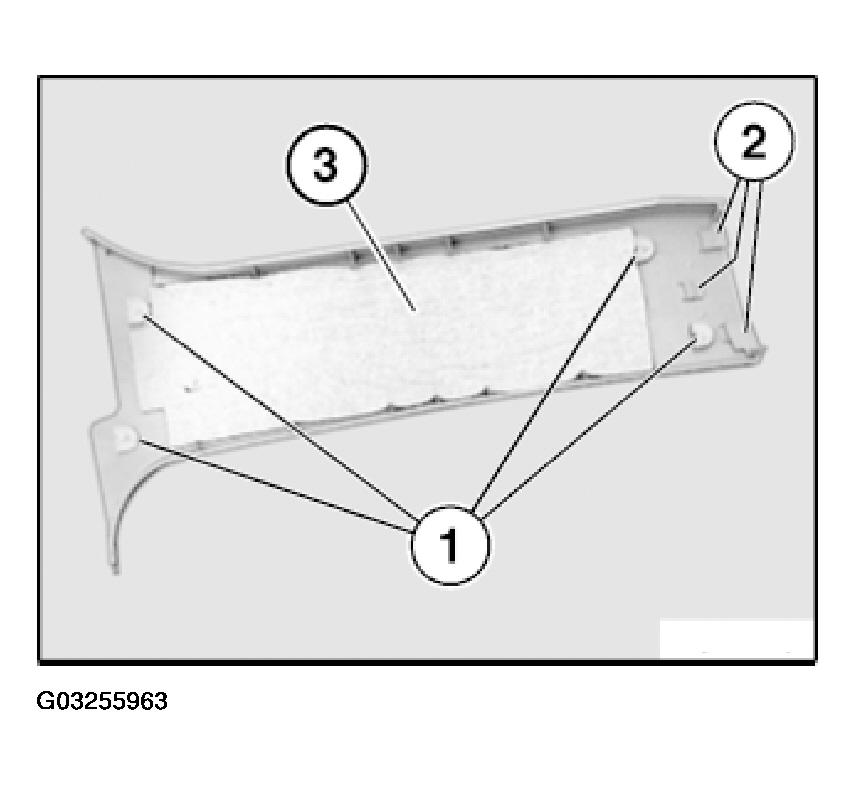

Fig 6: Identifying Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
