51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove bottom right trim panel from instrument panel. Refer to 51 45 181 REMOVING AND INSTALLING/REPLACING TRIM FOR INSTRUMENT PANEL, BOTTOM RIGHT .

Detach mucket (1) in area of side trim panel (2).

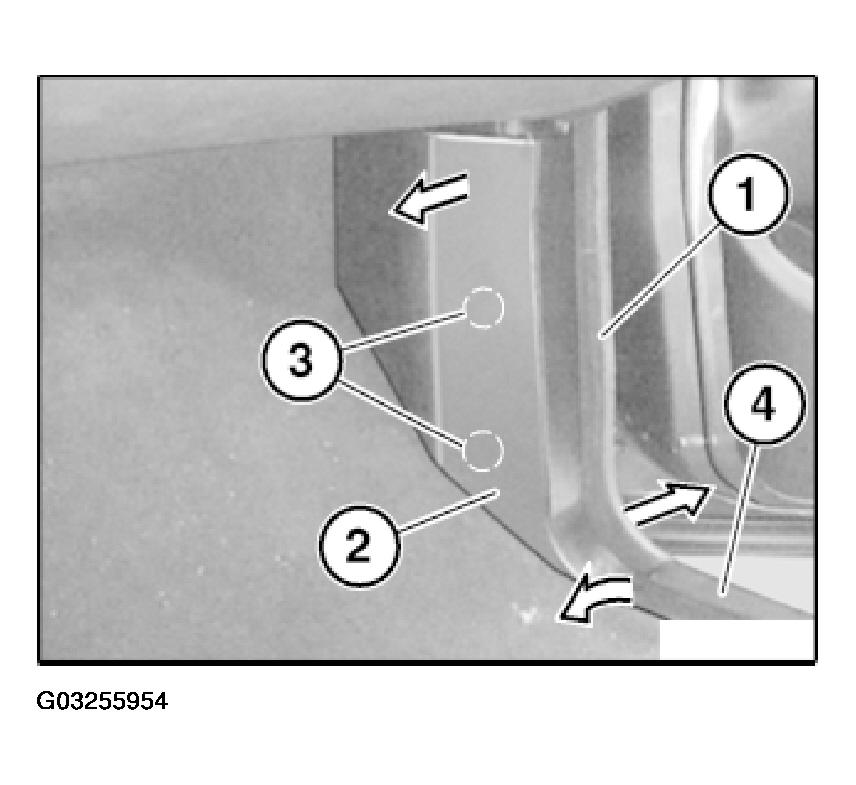

Fig 1: Detaching Mucket In Area Of Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip clips (3) towards interior.

Withdraw side trim panel (2) from entrance cover strip (4) and remove towards interior.

Installation:

If necessary, replace faulty clips (1) in side trim panel (2).

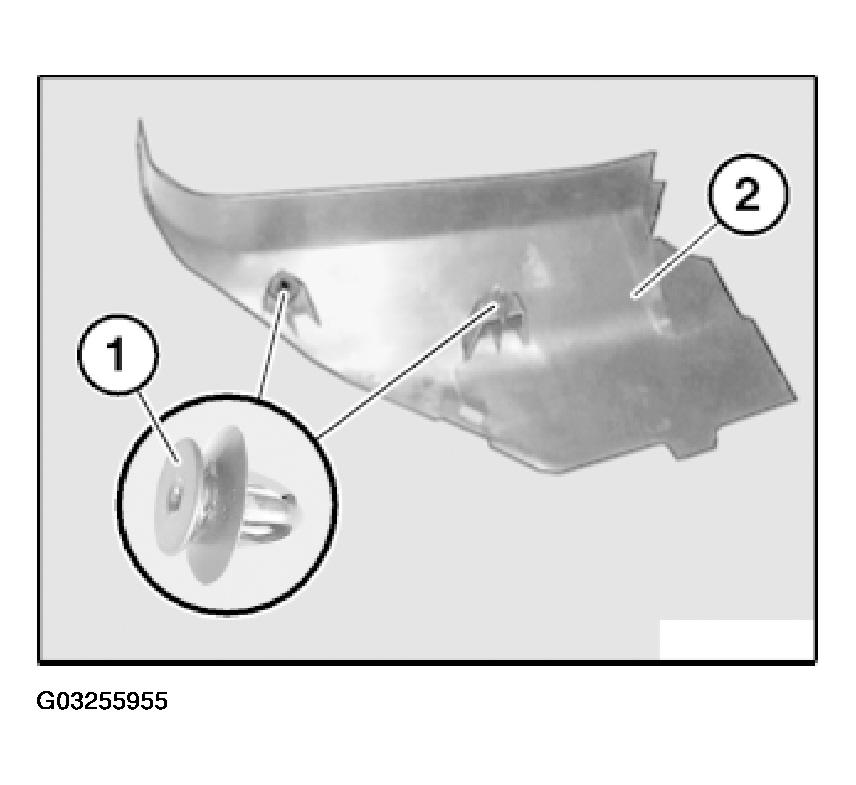

Fig 2: Identifying Clips In Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide (1) of side trim panel (2) into slot in carpet.

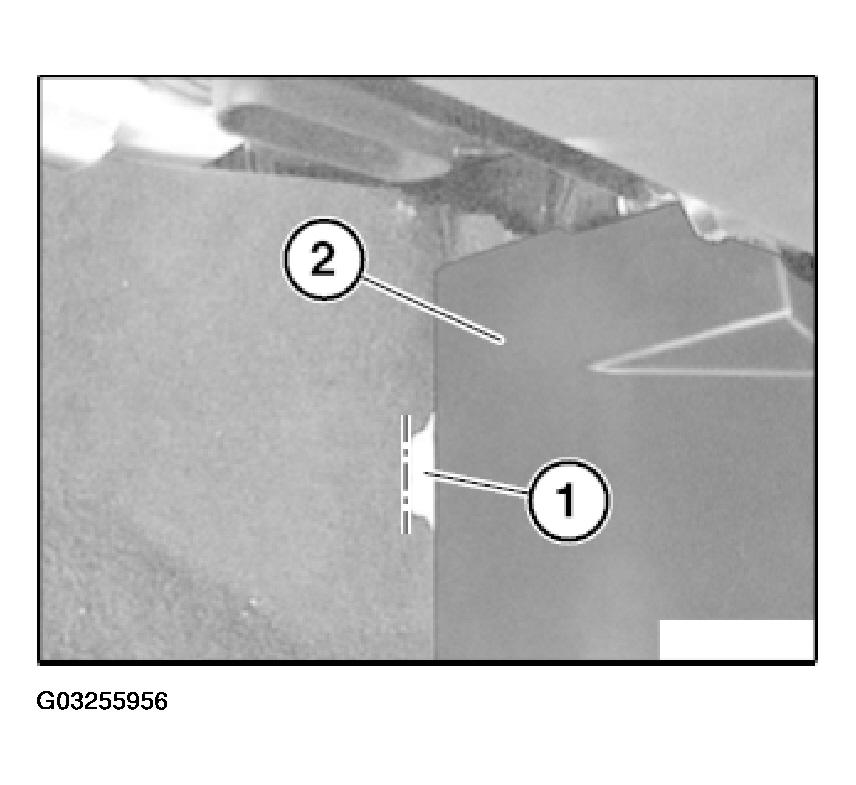

Fig 3: Inserting Guide Of Side Trim Panel Into Slot In Carpet

Courtesy of BMW OF NORTH AMERICA, INC.
