51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove entrance cover strip at front (inside). Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Release screw (1) and remove release lever (2).

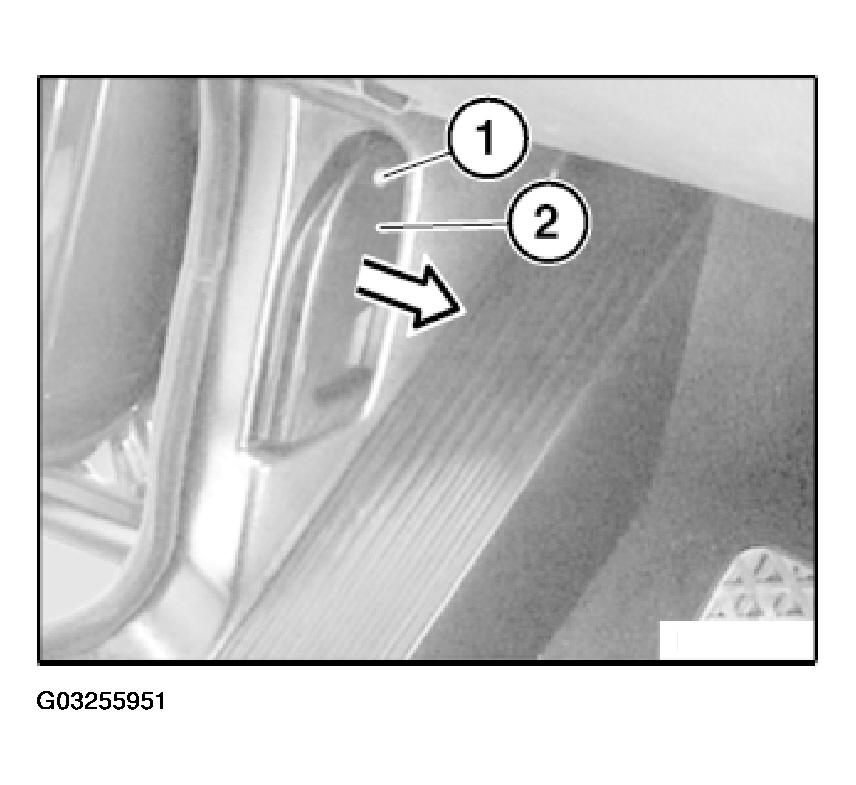

Fig 1: Releasing Screw And Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip running board (1) on outside from below towards top and remove towards interior.

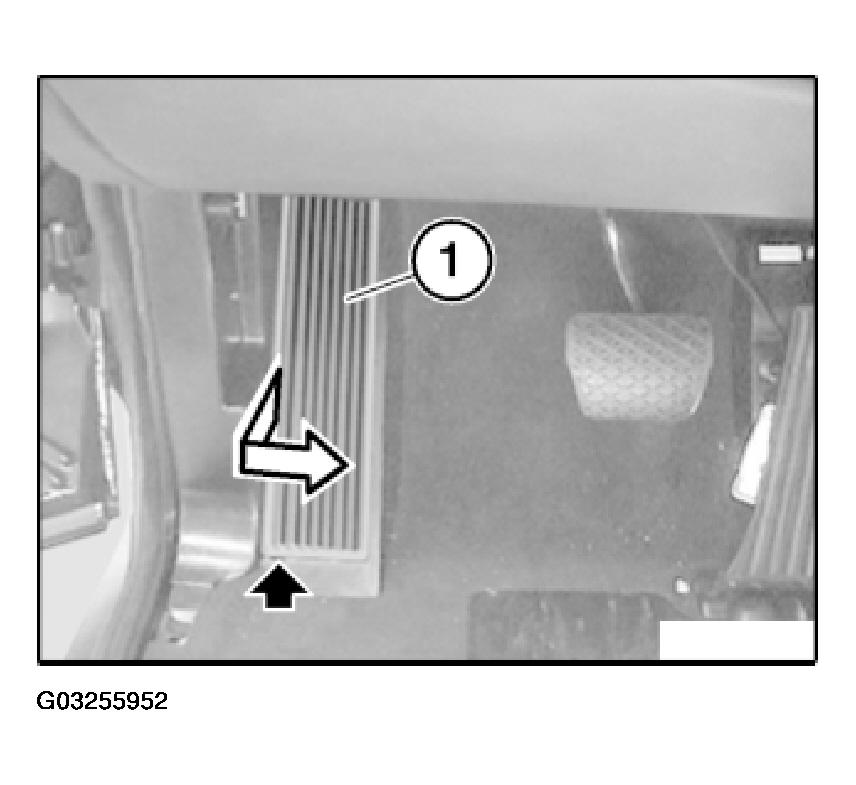

Fig 2: Removing Running Board On Outside

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (1) in area of footwell trim (3).

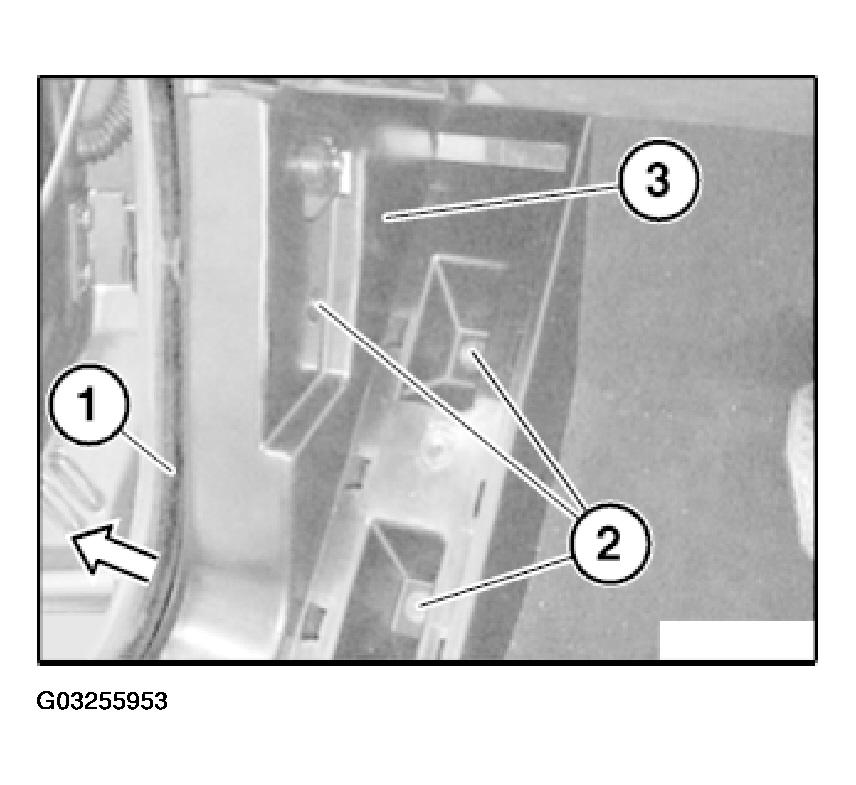

Fig 3: Detaching Mucket In Area Of Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove footwell trim (3) towards front/interior.
