51 49 050 Removing and installing/replacing lower trim for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

Remove trunk lamps (in rear lid upper section). Refer to 63 31 080 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LIGHT (IN REAR LID, TOP) .

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

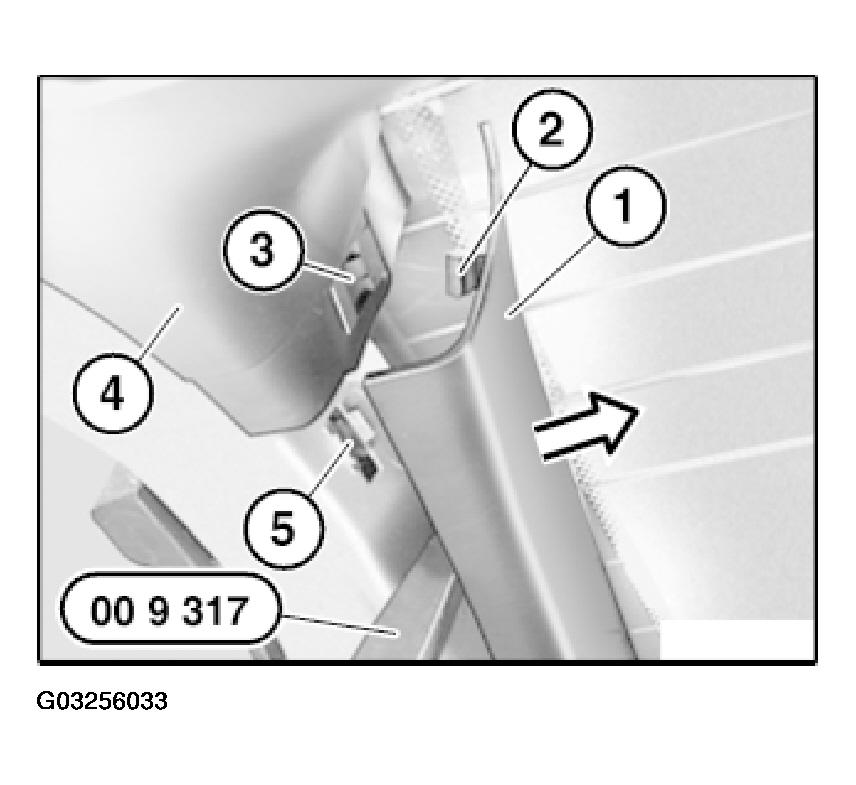

Fig 1: Using Assembly Wedge To Remove Left/Right Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainer (5).

Remove protective caps (1) and release screws underneath.

Release screws (2).

Lever out side trims (3) and clip out lower trim (4).

Feed emergency actuator (5) out of trim (4).

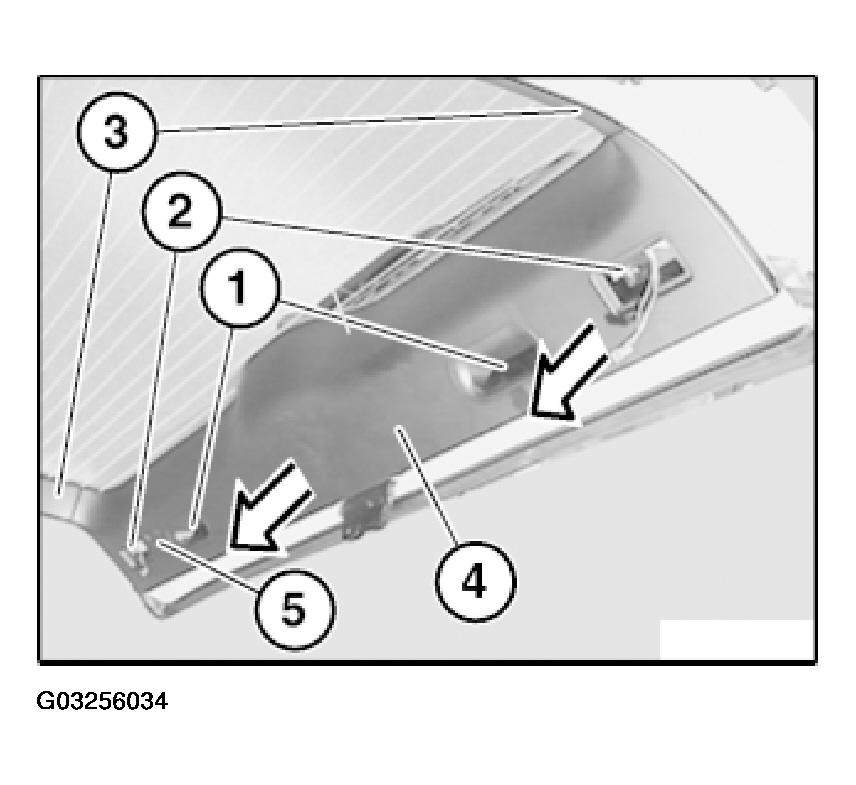

Fig 2: Removing Protective Caps And Releasing Screws Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainers (1) and clips (2) in trim (3).

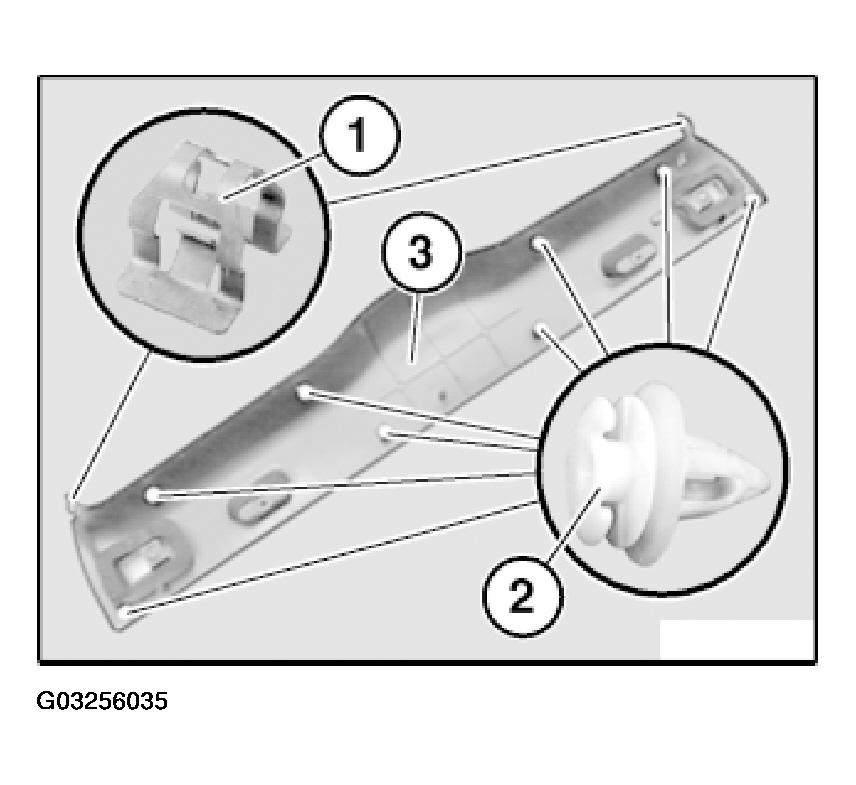

Fig 3: Replacing Retainers And Clips In Trim

Courtesy of BMW OF NORTH AMERICA, INC.
