51 42 018 Replacing speaker frame on rear left or right door trim panel

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Release plastic welded joints (1) and remove speaker frame (2).

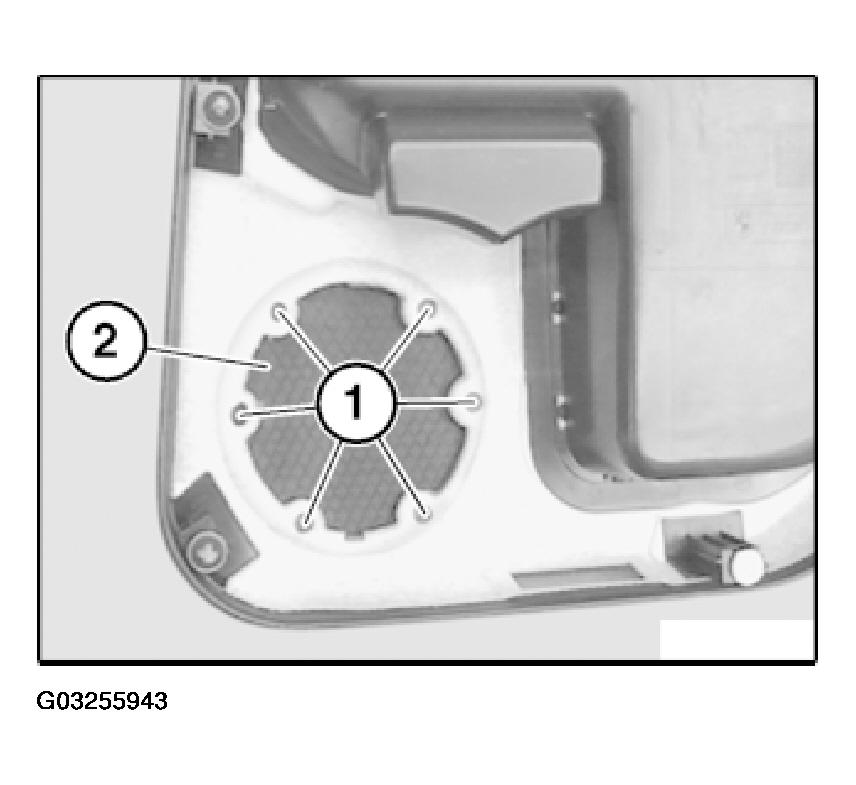

Fig 1: Identifying Plastic Welded Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new speaker frame (1).

Push locking washers (3) onto plastic pins (2).

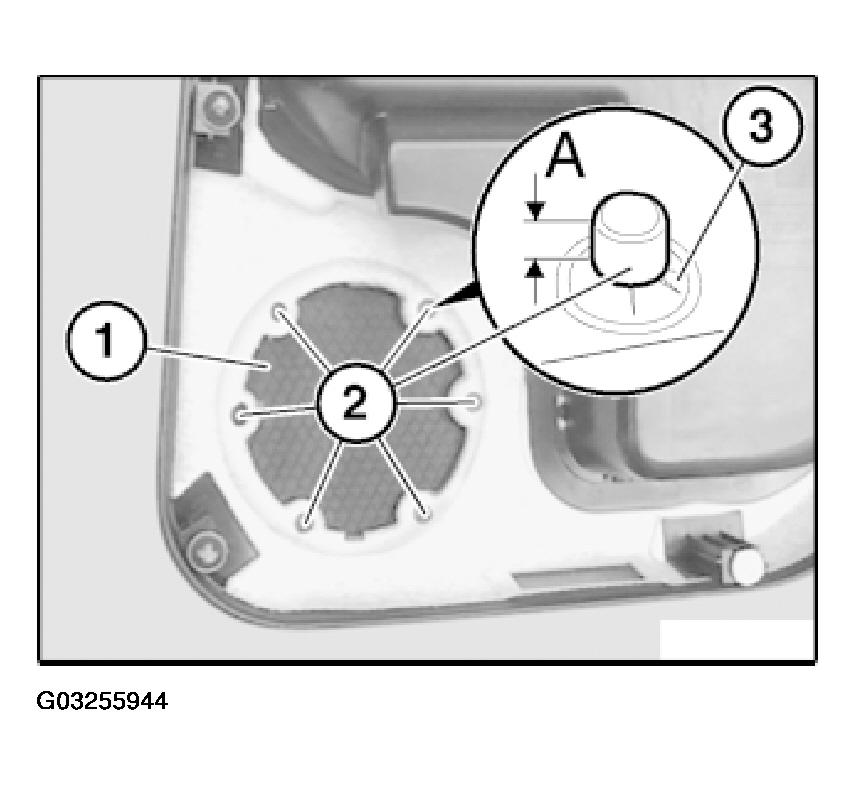

Fig 2: Installing Locking Washers Onto Plastic Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Shorten all plastic pins (2) down to measurement (A).
