51 42 001 Replacing left or right rear door trim
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .
Version with Hi-Fi system:
If necessary, remove mid-range speaker. Refer to 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER) .
Version with illuminated inside door handle:
If necessary, remove inside door handle. Refer to 51 22 225 REMOVING AND INSTALLING/REPLACING INSIDE DOOR HANDLE OF REAR LEFT OR RIGHT DOOR .

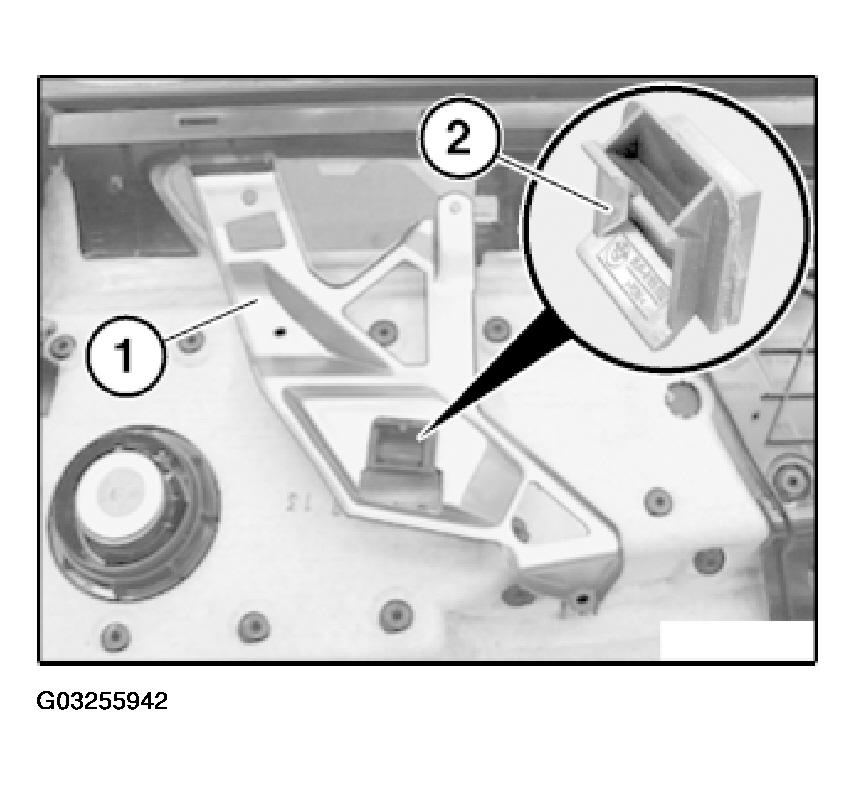

Attach central clip (2) to frame (1).
