51 12 157 Replacing rear bumper trim (HP)

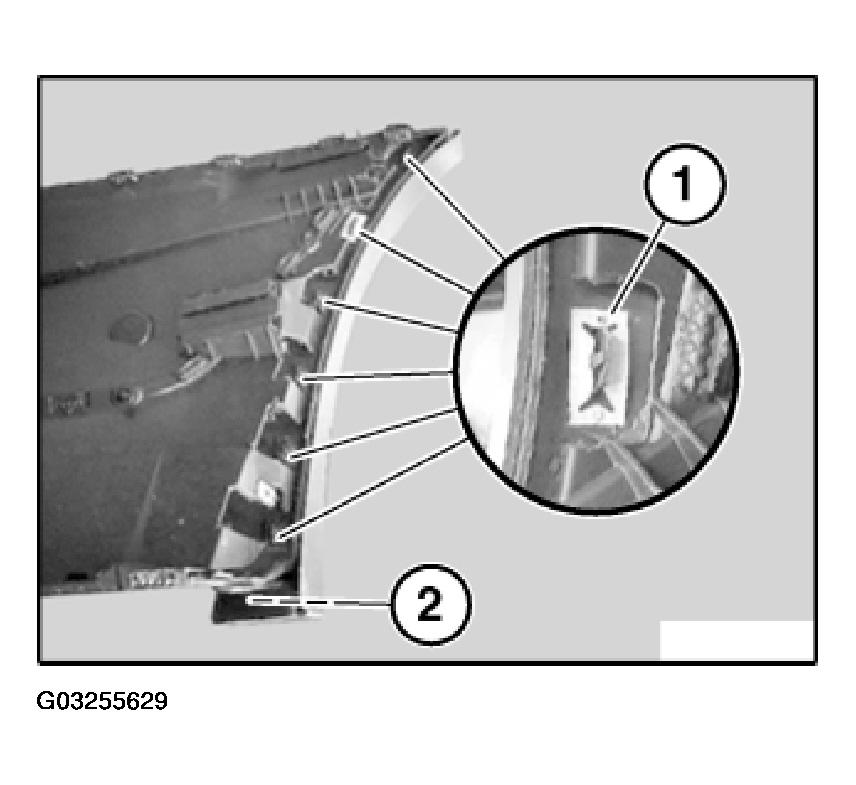

Release spring clips (1) on left and right.

Release retaining element (2) on left and right and remove covers.

Fig 1: Locating Spring Clips On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

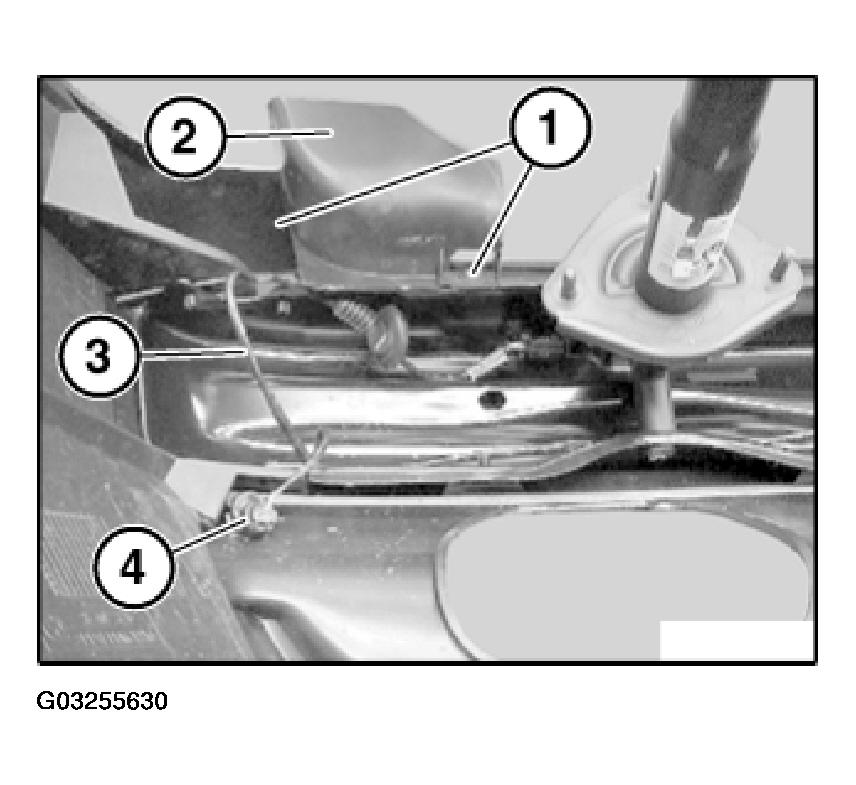

Release expansion rivets (1) on left and right and remove cover (2) on left and right.

Fig 2: Identifying Expansion Rivets And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version With PDC Option:

Remove wiring harness (3) and all PDC sensors (4).

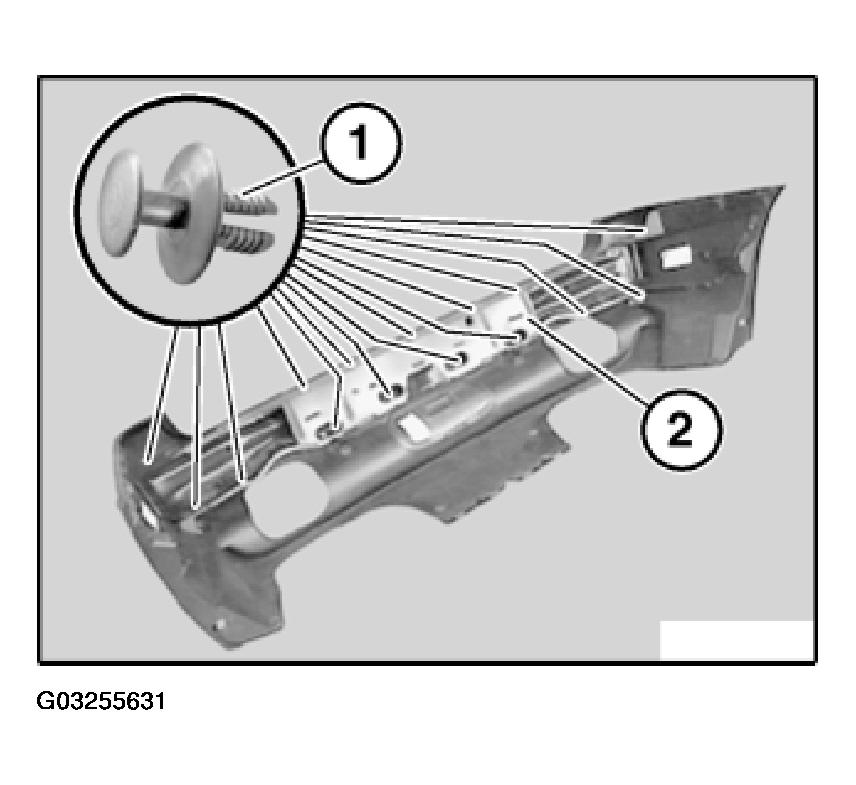

Release expansion rivets (1) and remove center section of bumper (2).

Fig 3: View Of Expansion Rivets In Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

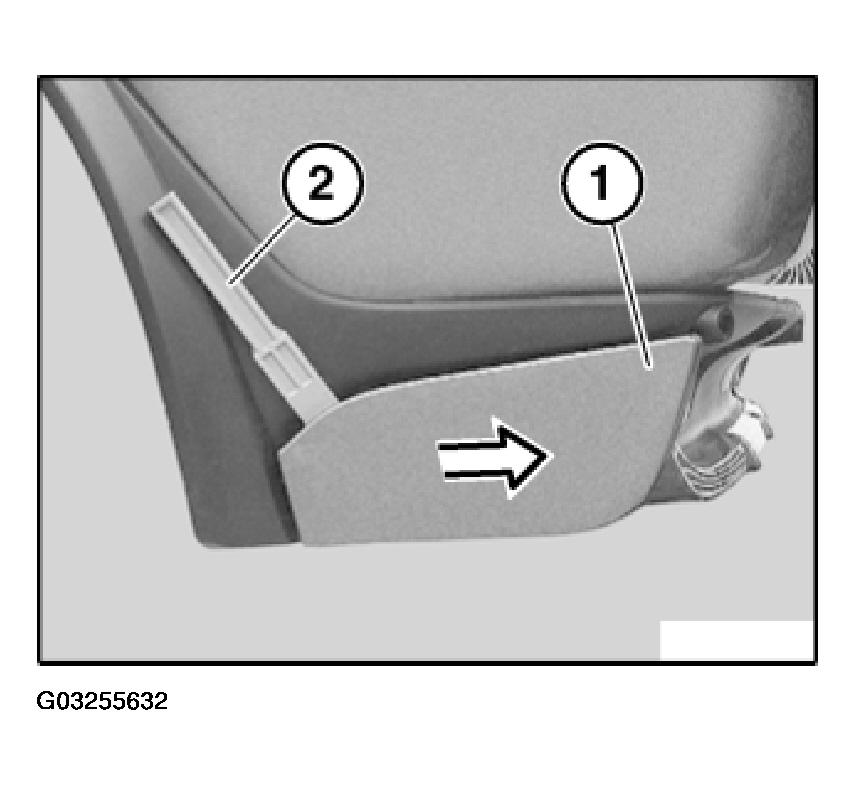

Unclip cover (1) on left and right with assembly wedge (2) and remove in direction of arrow.

Fig 4: Using Assembly Wedge To Remove Cover

Courtesy of BMW OF NORTH AMERICA, INC.

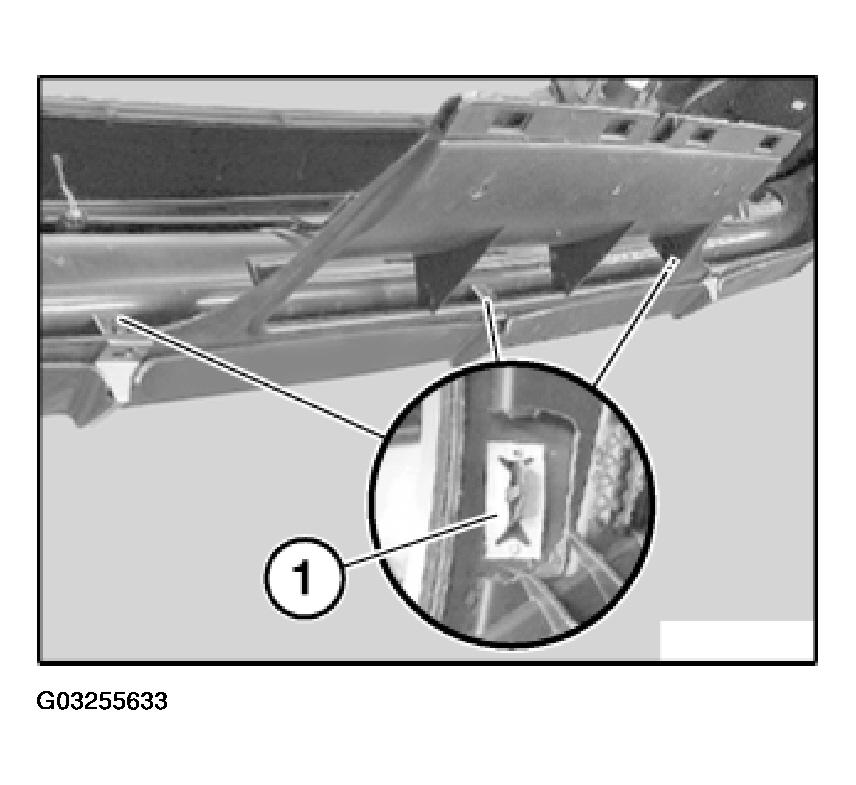

Release spring clips (1).

Fig 5: Locating Spring Clips

Courtesy of BMW OF NORTH AMERICA, INC.

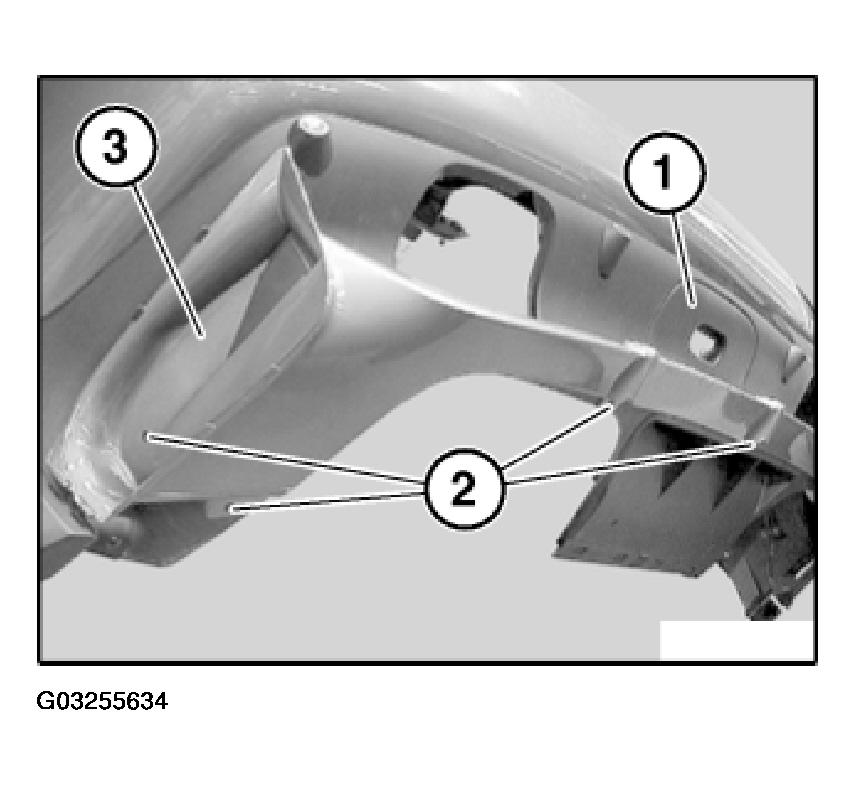

Remove cover (1).

Release retaining elements (2) on left and right and remove bumper trim lower section (3).

Fig 6: Identifying Bumper Trim Lower Section Retaining Elements

Courtesy of BMW OF NORTH AMERICA, INC.
