51 16 405 Removing and installing or replacing blind at side window of left or right rear door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Release screws (1).

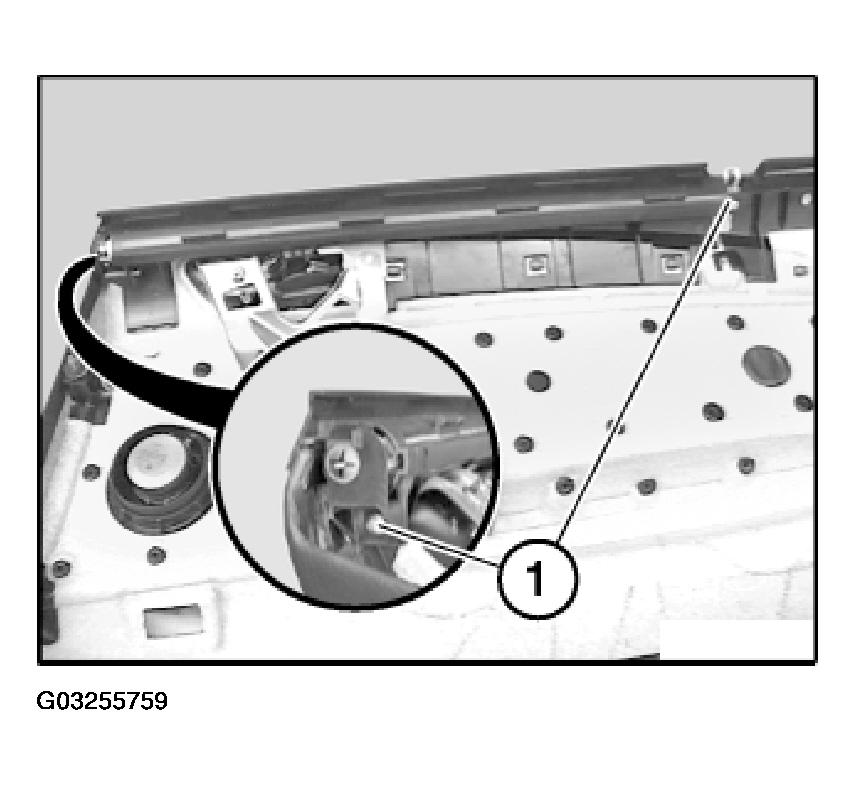

Fig 1: Releasing Screws On Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Raise cover (1) and pull out roller sun blind (2).

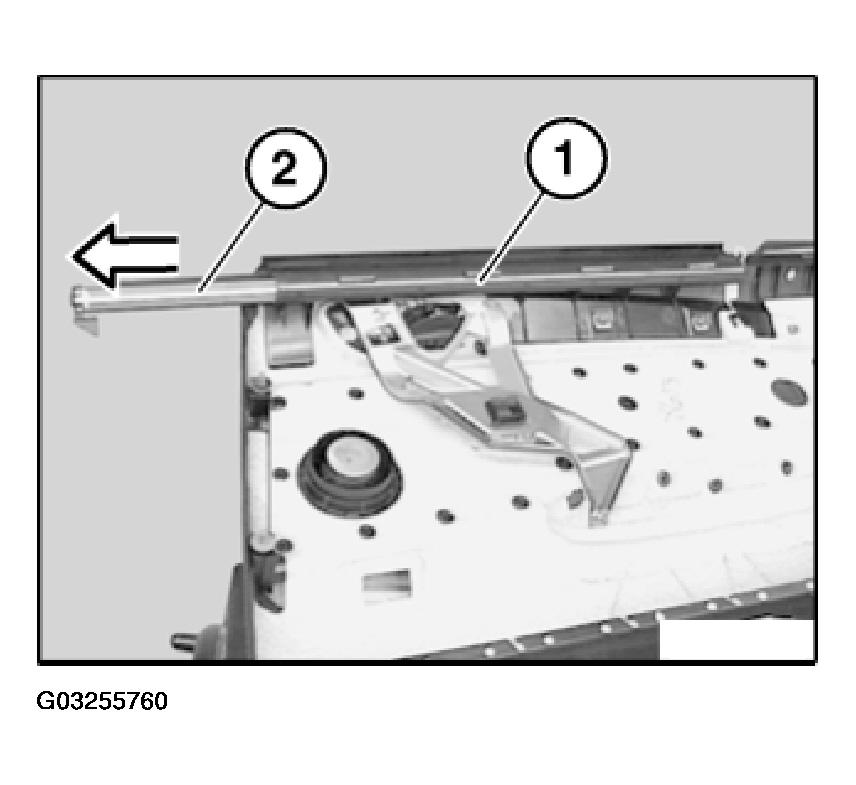

Fig 2: Raising Cover And Pulling Out Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
