51 16 400 Removing and installing or replacing sun blind at fixed side window of left or right rear door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Pull roller sun blind (1) at top towards rear and snap out spring (2) towards top with a small screwdriver.

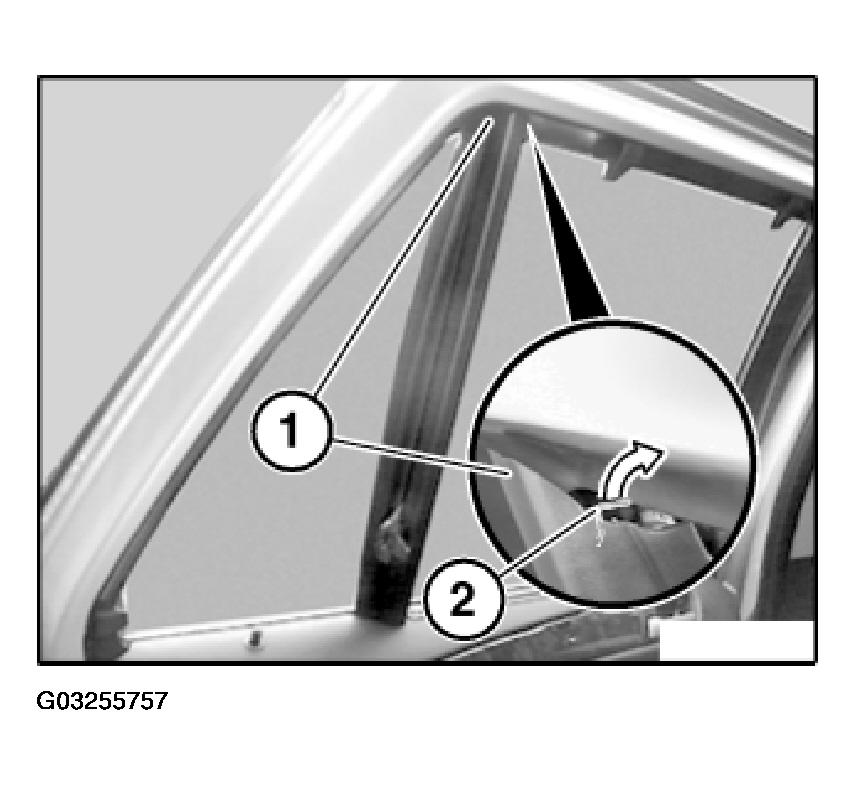

Fig 1: Locating Roller Sun Blind Spring
G03255757Courtesy of BMW OF NORTH AMERICA, INC.

Remove roller sun blind (1) towards inside/top.

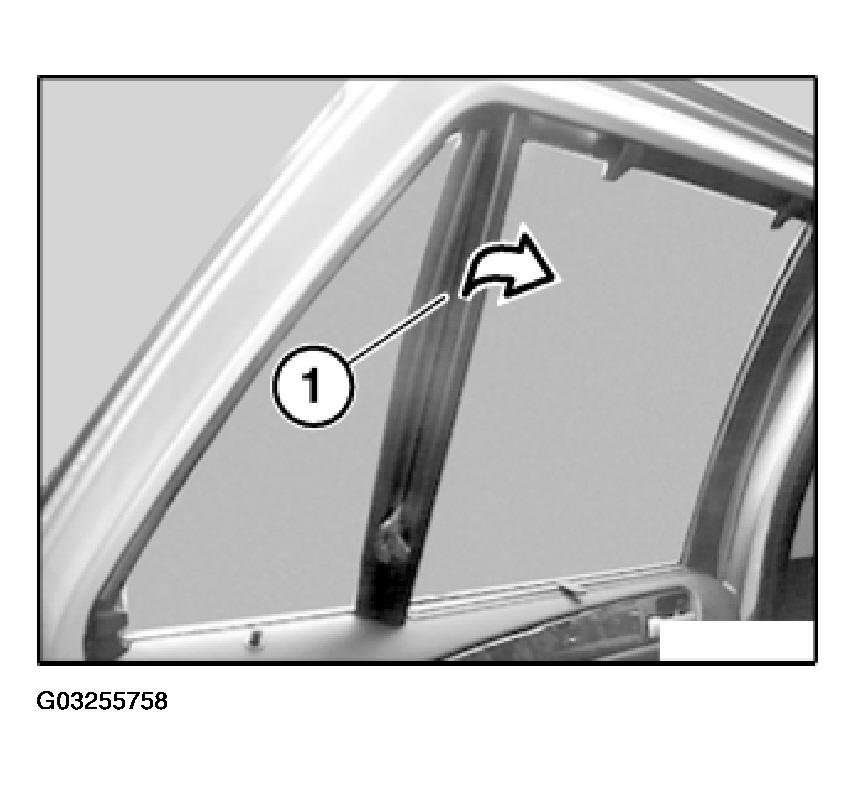

Fig 2: Removing Roller Sun Blind Towards Inside/Top
G03255758Courtesy of BMW OF NORTH AMERICA, INC.
