51 16 040 Removing and installing/replacing housing on left or right door mirror

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Tilt door mirror forwards a little.

NOTE: Only grip the innermost area (1) on the drainage groove of the mirror cap; otherwise the inside catch would be damaged.

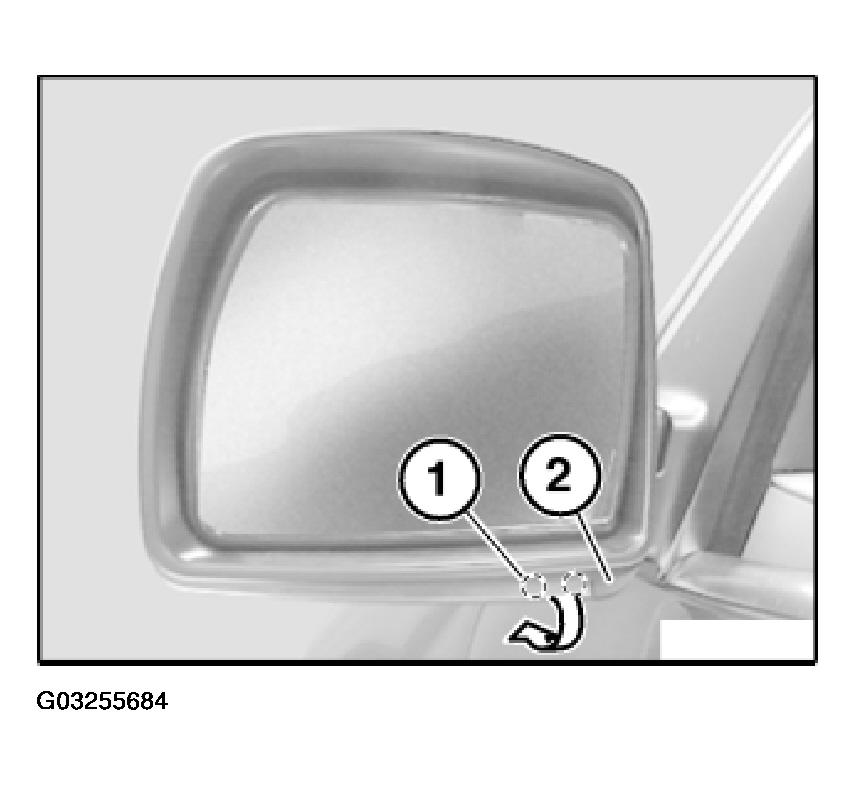

Unlock mirror (1) cap from mirror foot (2).

Fig 1: Unlocking Mirror Cap From Mirror Foot

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten mirror cap (1) forwards/upwards until light (2) is accessible.

Disconnect plug-in connection (3).

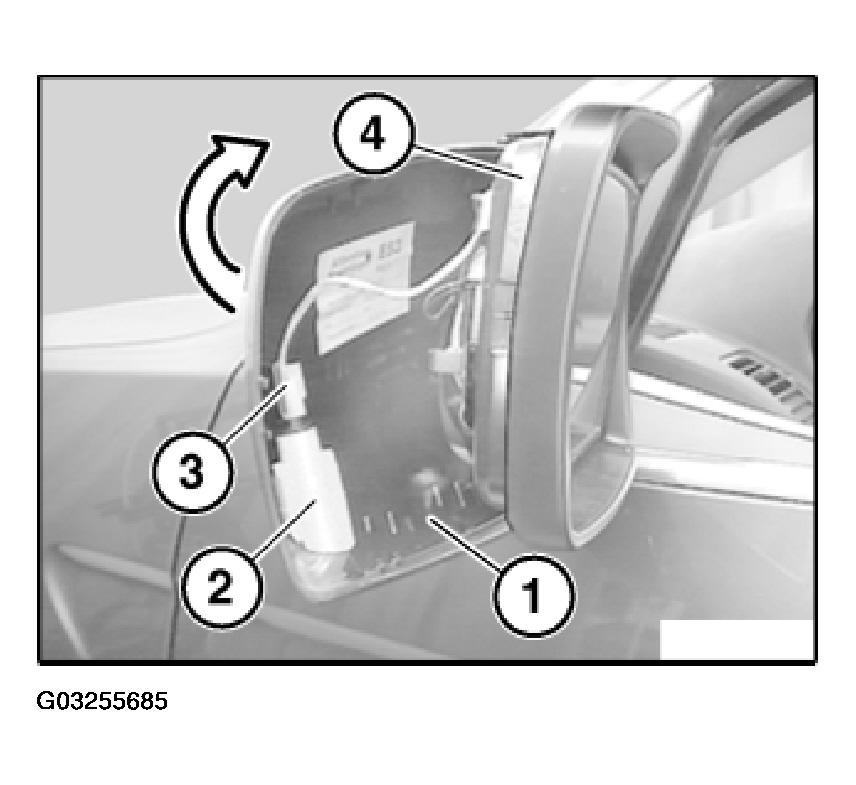

Turn mirror cap (1) forwards/upwards and remove from mirror foot (4).

Fig 2: Removing Mirror Cap From Mirror Foot

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on mirror cap must not be damaged.

Fig 3: Identifying Mirror Cap Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

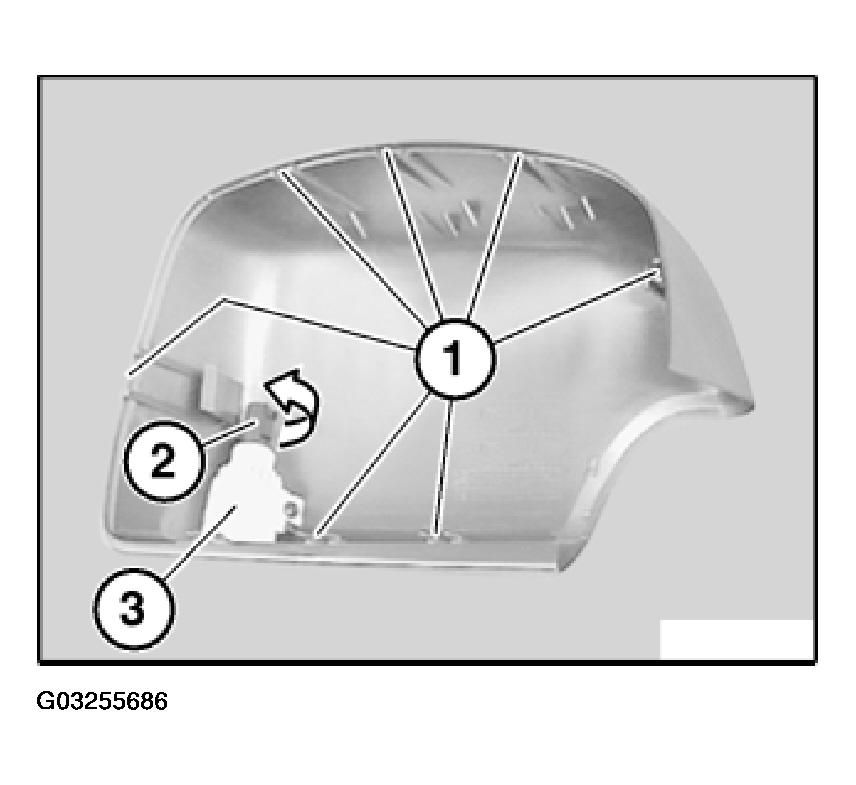

Turn bulb holder (2) clockwise and detach from socket housing (3).

Installation:

Check function.

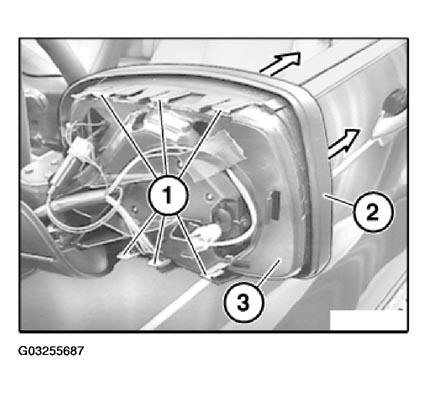

Unlock catches (1) and detach mirror ring (2) from mirror foot (3).

Fig 4: Detaching Mirror Ring From Mirror Foot

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

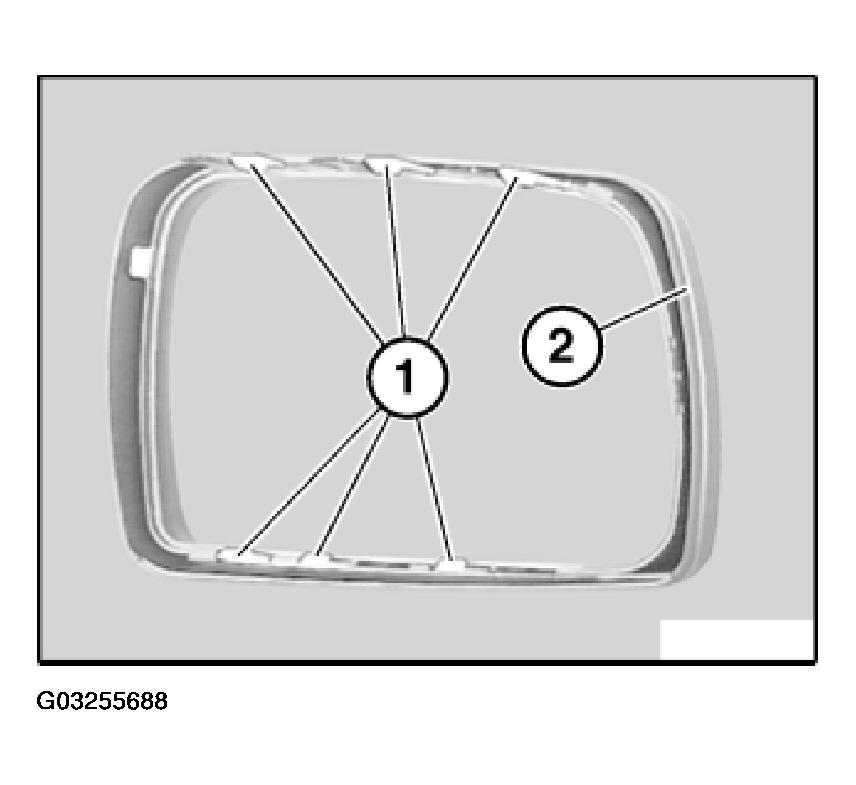

Catches (1) on mirror ring (2) must not be damaged.

Fig 5: Locating Catches On Mirror Ring
