51 16 026 Replacing mirror glass for rear-view mirror (on front door)
WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Bring car to room temperature so that clips do not break off. Press mirror glass at lower edge forwards as far as it will go.

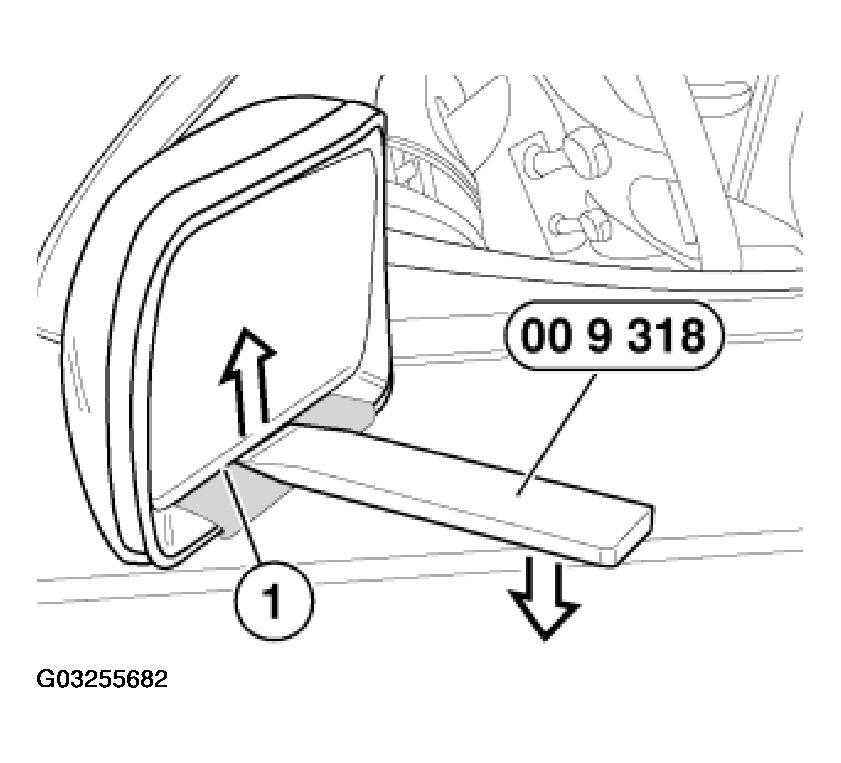

Tape off mirror glass and housing edge with plastic adhesive tape (1) (risk of damage).
Push mirror glass with special tool 00 9 318 (universal wedge) upwards.
Carefully remove mirror glass towards rear and if necessary disconnect plug connection for mirror heater and/or automatic anti-glare control.
Installation:

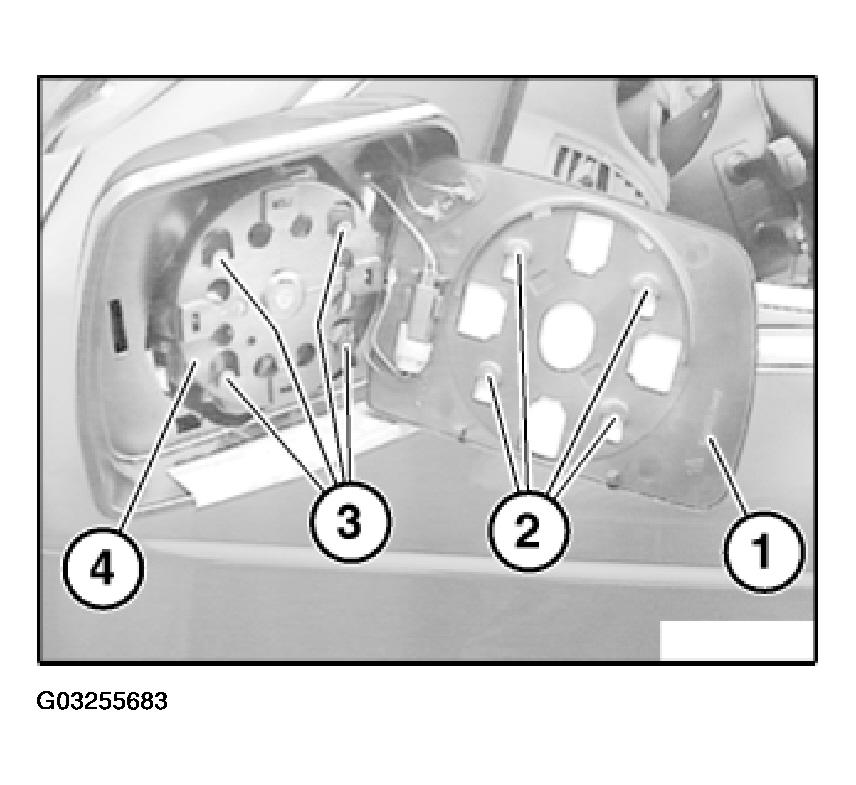

Position mirror glass (1) with mounts (2) on guides (3) and push downwards.
Carry out function check.
