51 16 000 Removing and installing/replacing mirror on left or right front door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove speaker in window frame of front door. Refer to 65 13 070 REMOVING AND INSTALLING/REPLACING SPEAKER (ON WINDOW FRAME, LEFT OR RIGHT) .

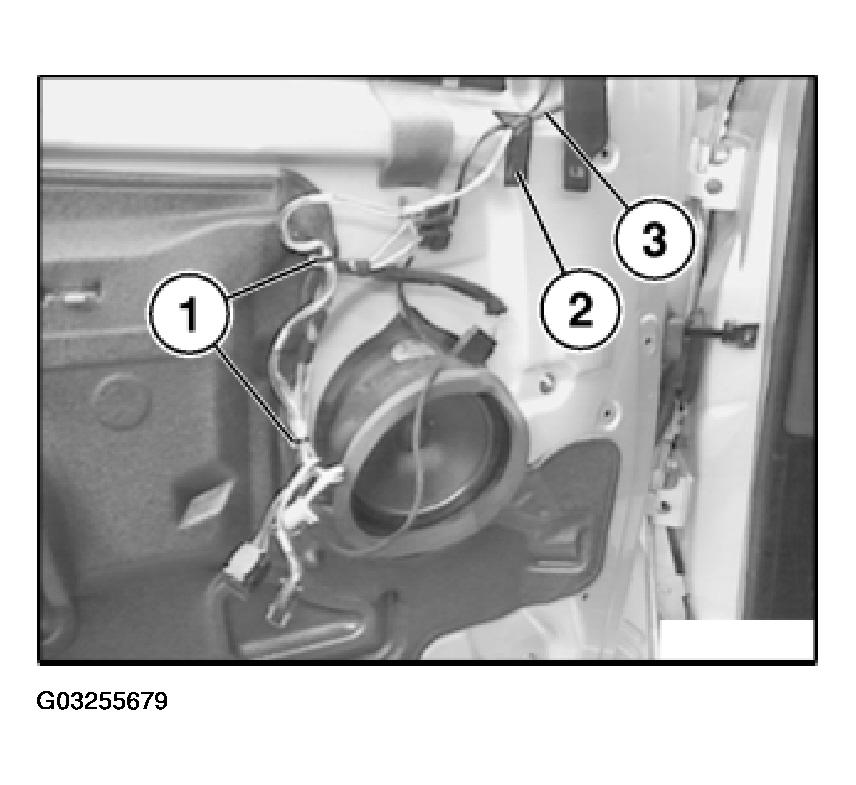

Unfasten cable clip (1).

Pull off adhesive tape (2) and expose wire (3).

Fig 1: Pulling Off Adhesive Tape And Exposing Wire

Courtesy of BMW OF NORTH AMERICA, INC.

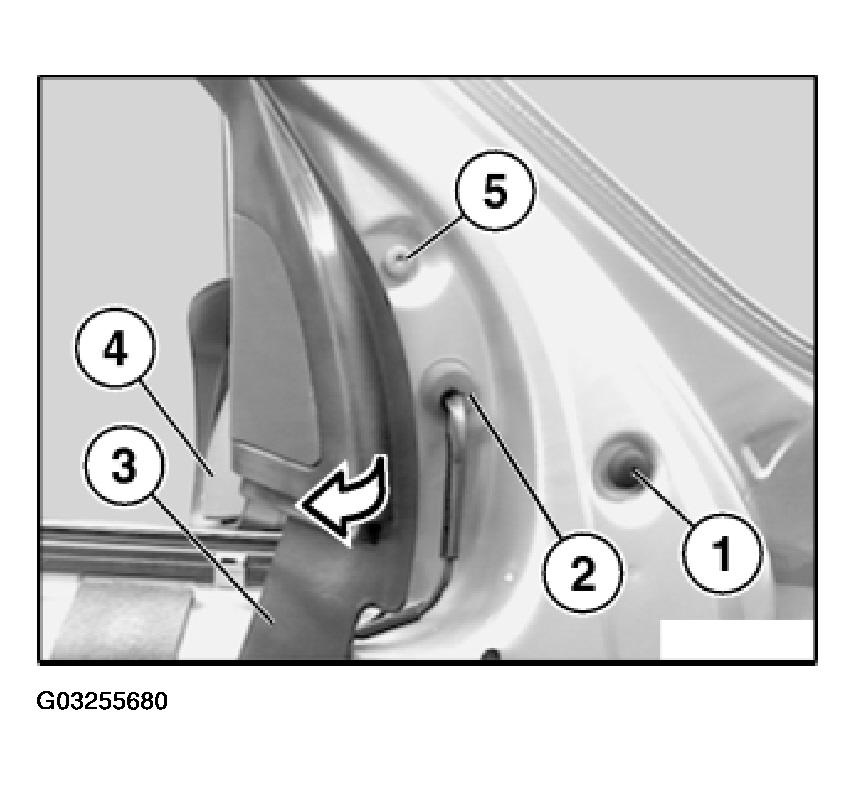

Lever out cover (1) and release screw underneath.

Pull cover (3) to one side.

Fig 2: Aligning Cover To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (5) and detach mirror (4) with cable (2).

Installation:

Tightening torque, (6 N.m.). Only for new rearview mirror (replacement) for initial screw connection (shaping of thread-cutting screws), (8 N.m.).

Installation:

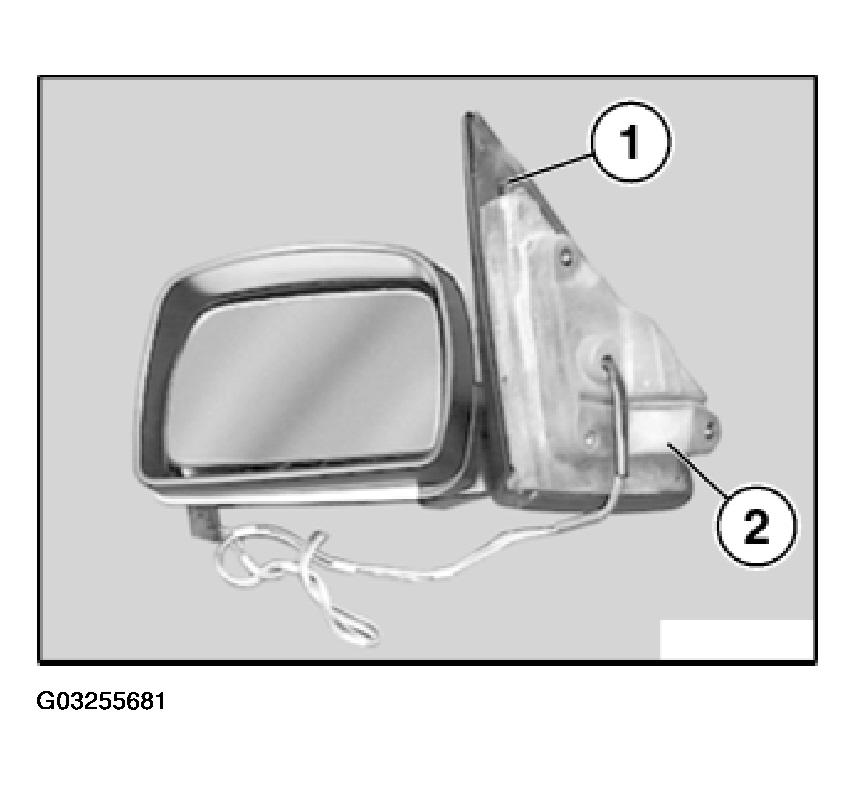

Install mirror base with seal (1) and sound insulation (2).

Fig 3: Identifying Mirror Base Seal And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out function check.
