51 71 080 Removing and installing/replacing heater bulkhead

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

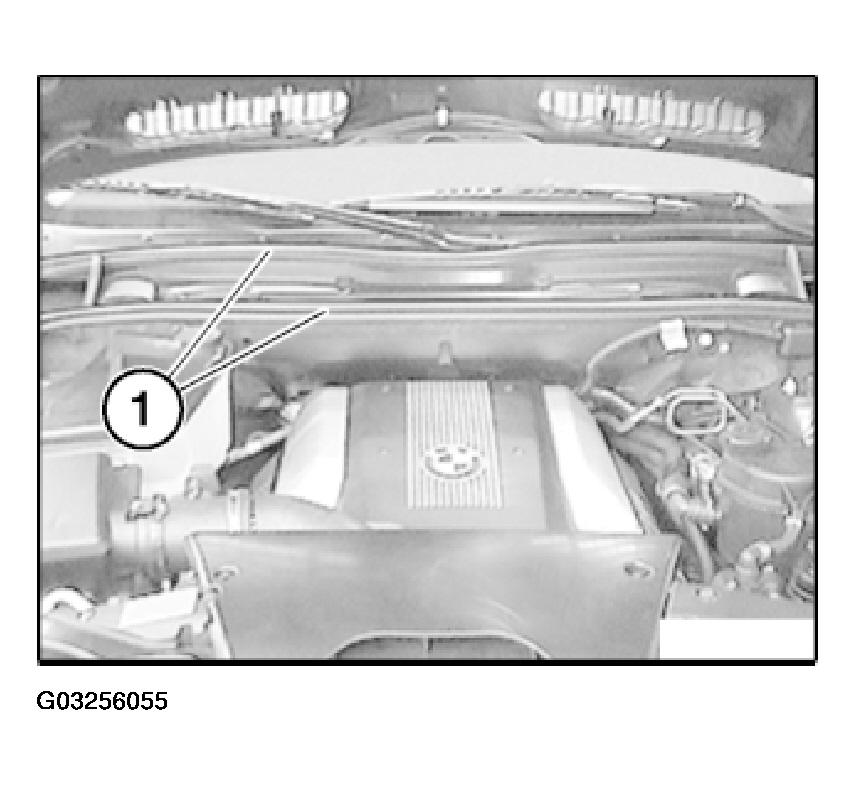

Detach sealing strips (1).

Fig 1: Detaching Sealing Strips

Courtesy of BMW OF NORTH AMERICA, INC.

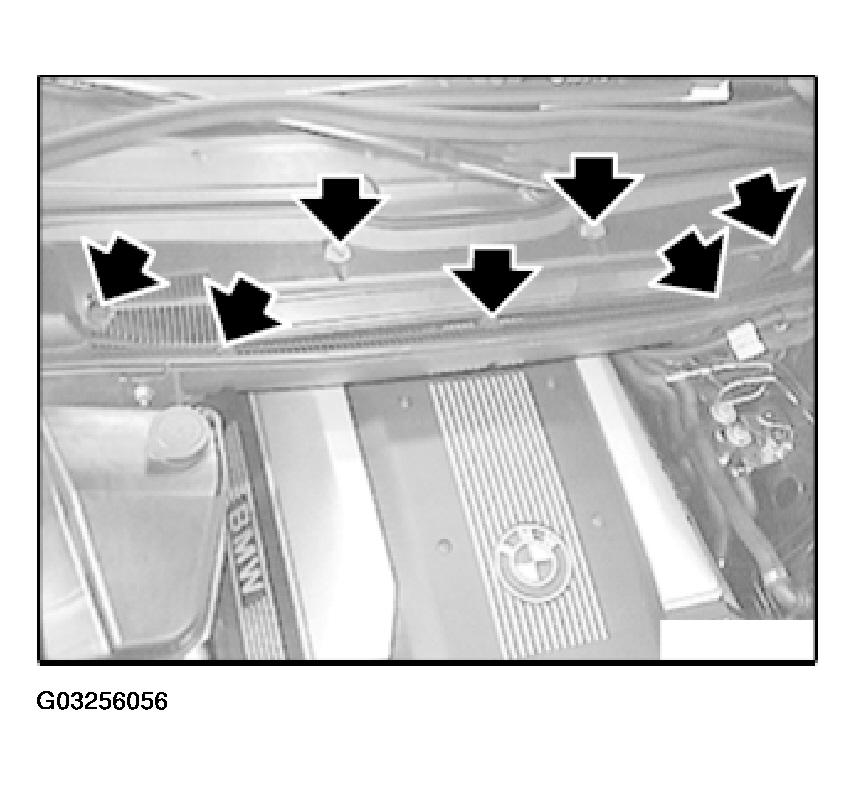

Turn toggles through approx. 90°.

Fig 2: Turning Toggles Through Approx. 90°

Courtesy of BMW OF NORTH AMERICA, INC.

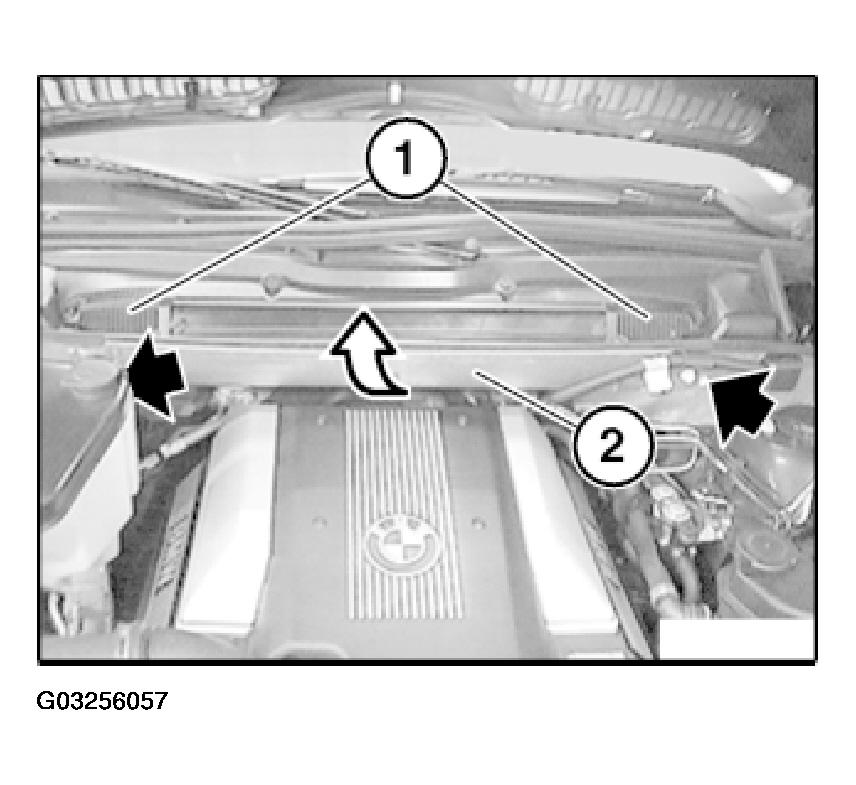

Lift out cover (1).

Unfasten screws.

Pull out heater bulkhead (2).

Fig 3: Pulling Out Heater Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

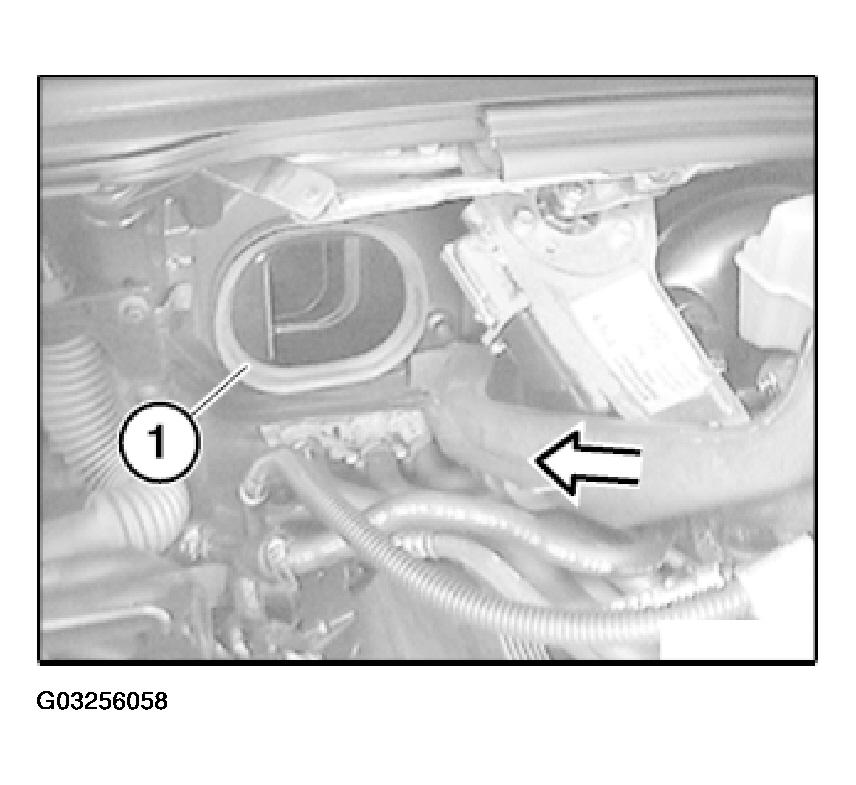

Check rubber seals (1) on left and right and replace if necessary.

Coat rubber seals (1) on left and right with rubber protection coating agent.

Heater bulkhead is guided at sides via guide channels.

Clean guide channels and coat with rubber protection coating agent.
