51 36 040 Removing and installing/replacing strip on side window at rear bottom left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 318

Carefully lever out strip (1) with special tool 00 9 318 from rear to front in direction of arrow.

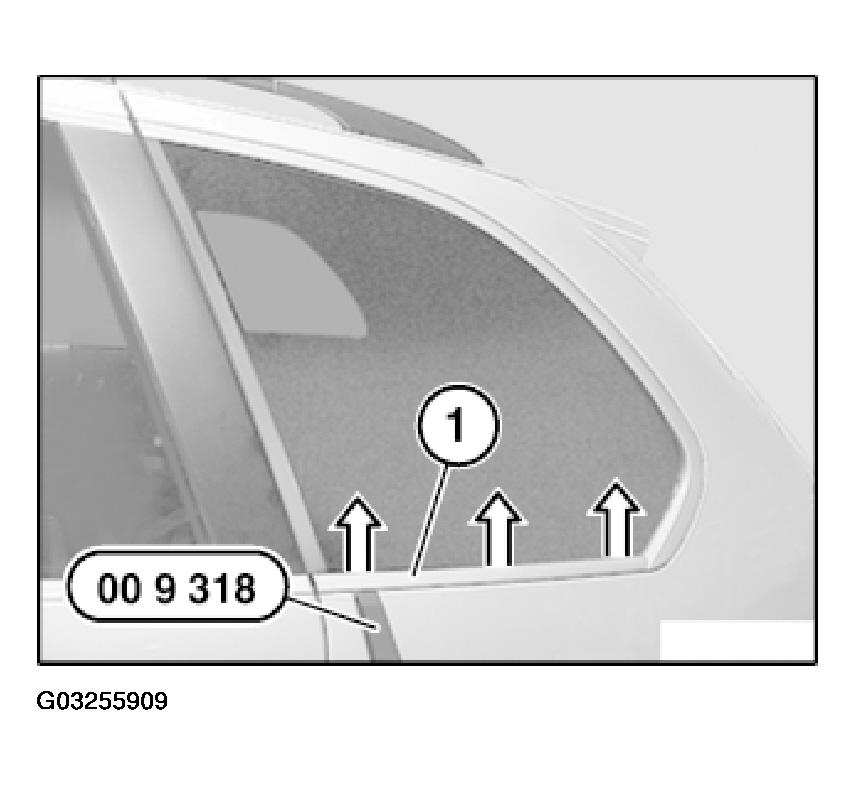

Fig 1: Levering Out Strip With Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach clips from bridge (1). Bridge (1) must not be damaged.

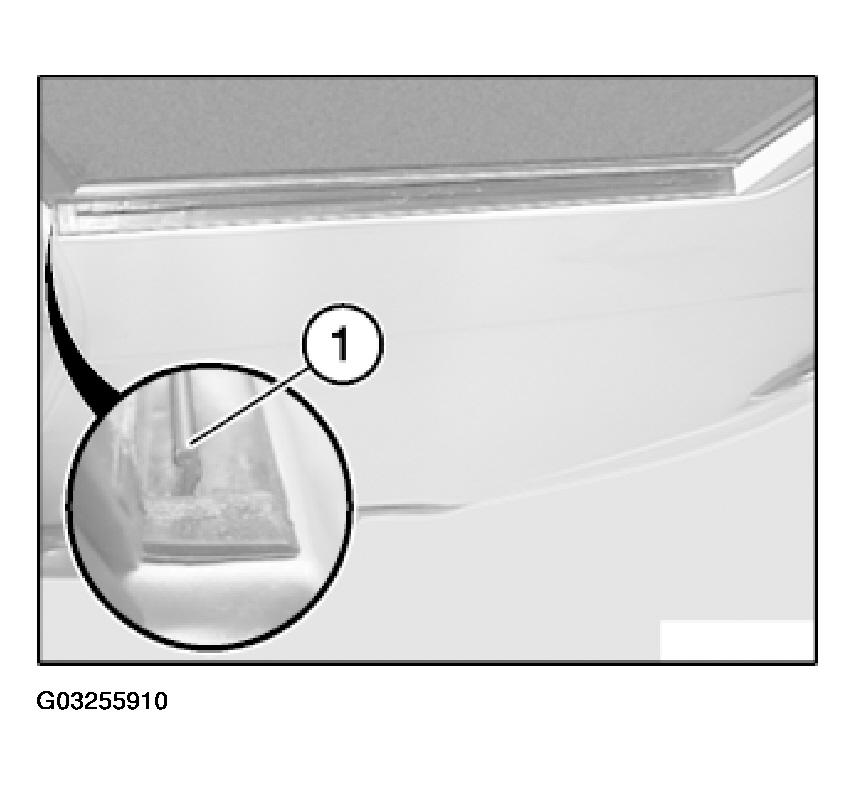

Fig 2: Locating Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (2).

Attach clips (2) to strip (1).

Lock (3) must be correctly engaged in strip (1).

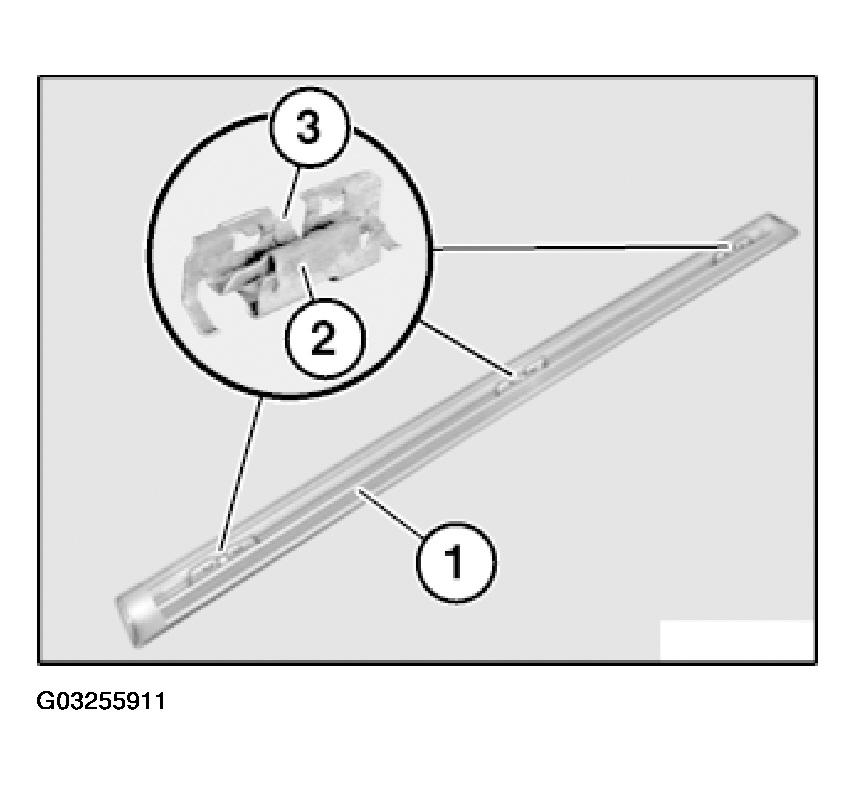

Fig 3: Locating Lock On Clip

Courtesy of BMW OF NORTH AMERICA, INC.
