51 36 035 Removing and installing/replacing trim on side window at top rear left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 316
00 9 317

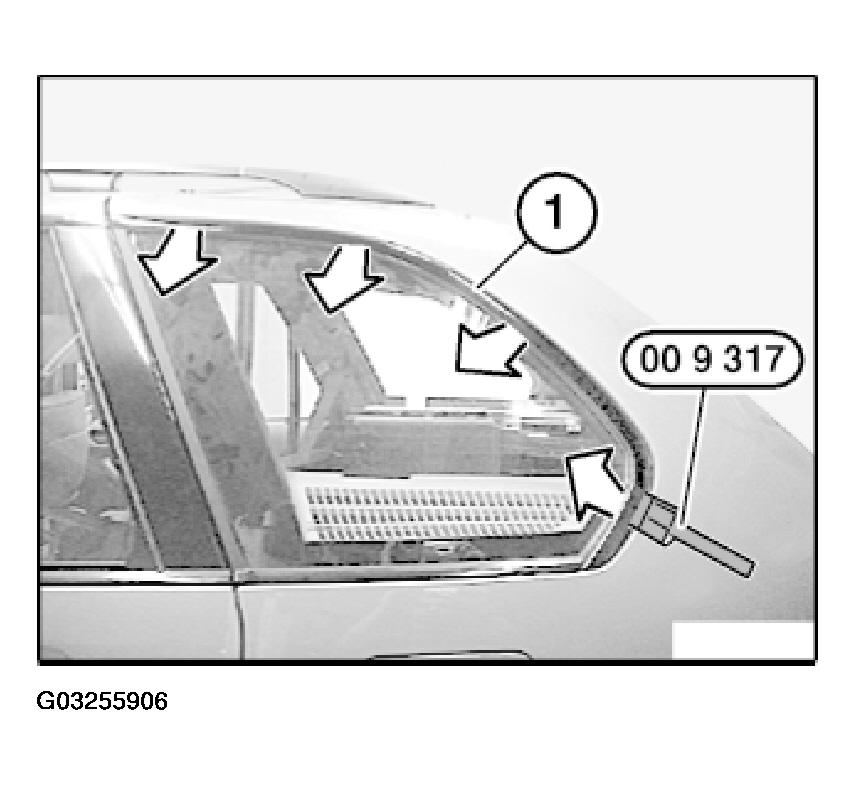

Carefully lever out trim (1) with special tool 00 9 317.

Fig 1: Levering Out Trim With Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

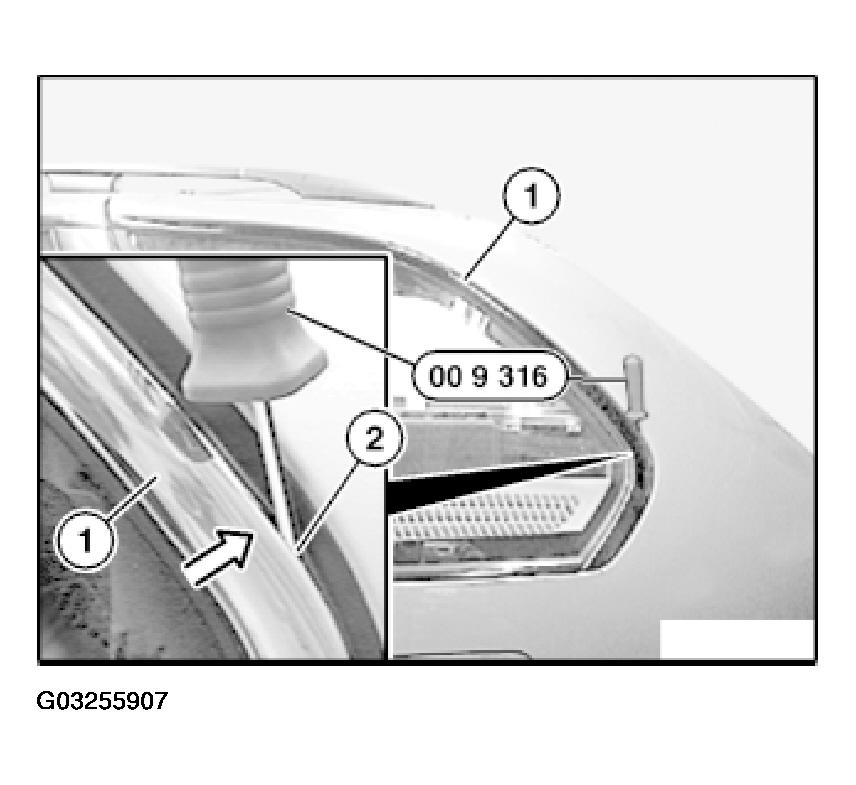

Fit trim (1), raise sealing lip (2) with special tool 00 9 316 and at same time snap trim (1) into place.

Fig 2: Raising Sealing Lip With Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

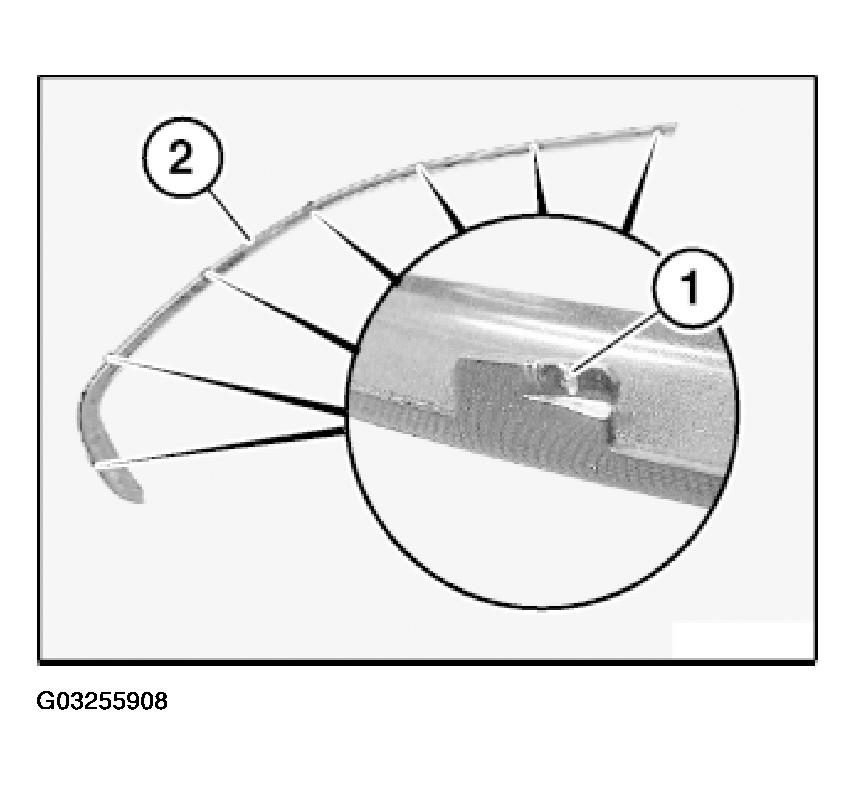

Catches (1) on trim (2) must not be damaged.

Fig 3: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

If trim (2) fails to engage correctly, bend catches (1) slightly.
