51 21 180 Removing and installing/replacing cover on outside handle

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

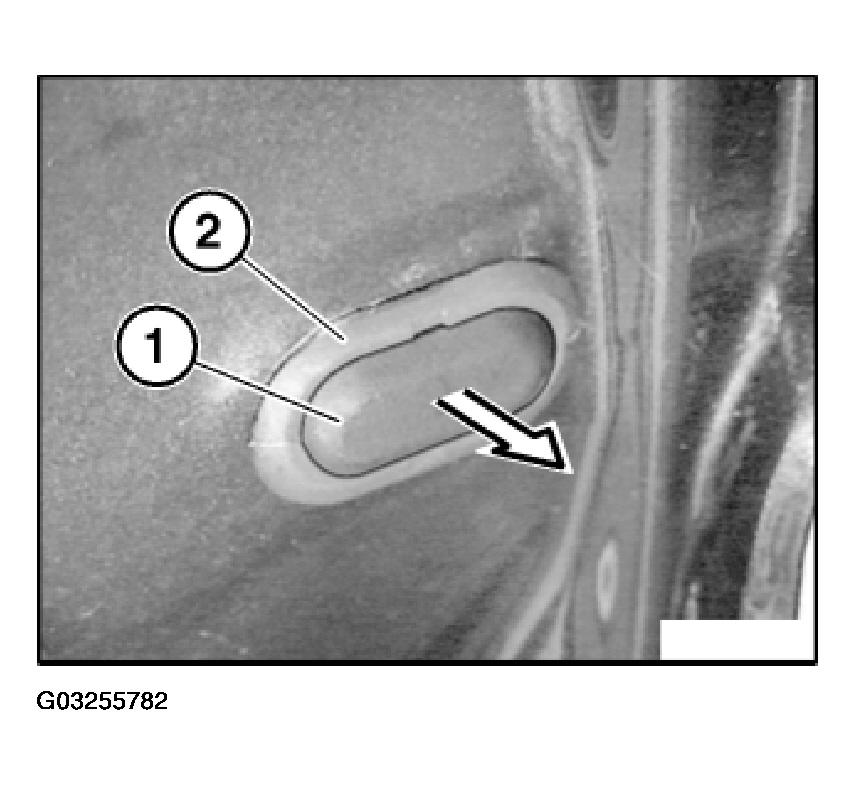

Lever out trim (1) and frame (2).

Fig 1: Levering Out Trim And Trim Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After releasing screw, you must reinstall frame (2) (damage to paint).

Installation:

Install new trim (1) and frame (2).

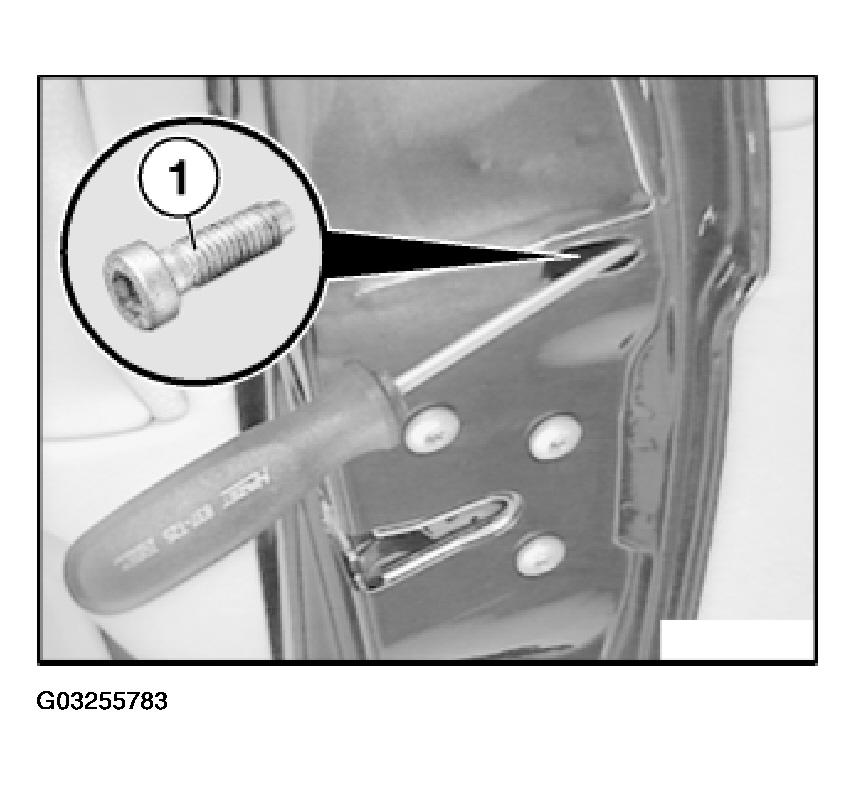

Release screw (1).

Fig 2: Releasing Screw For Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

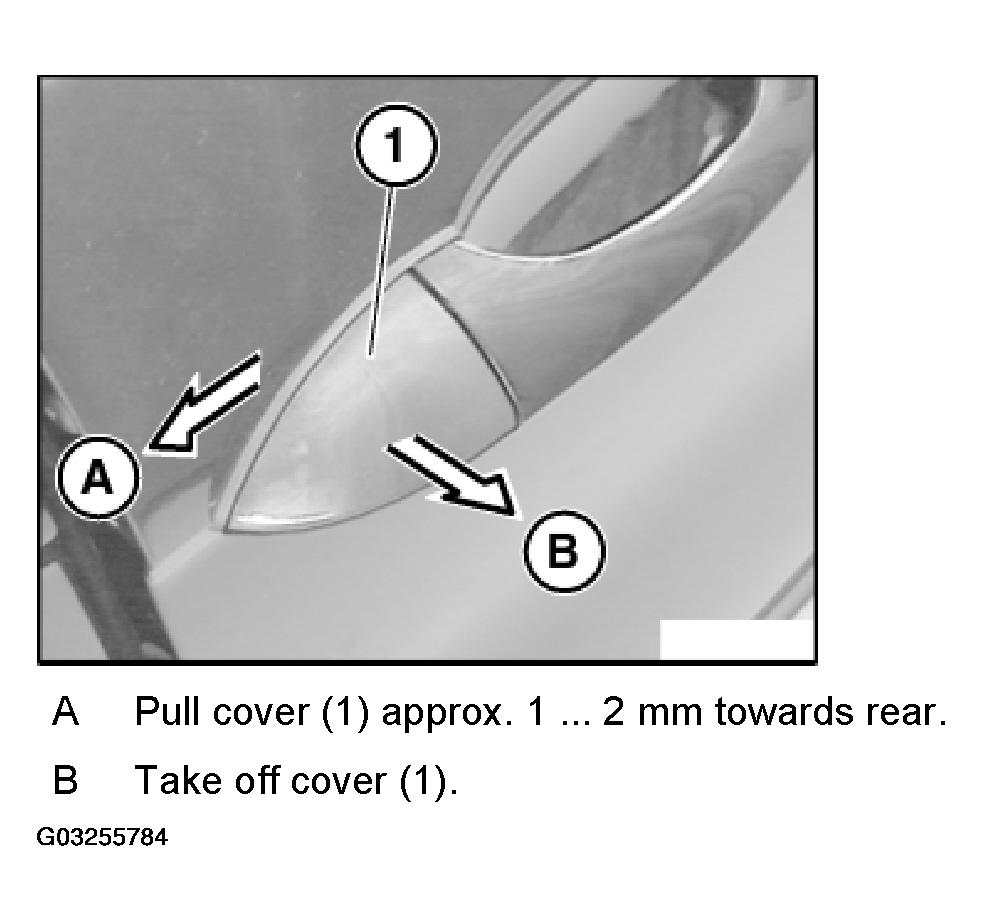

Removing cover (1) on outside handle:

Pull cover (1) approx. 1 - 2 mm towards rear.
Take off cover (1).

Fig 3: Removing Cover On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

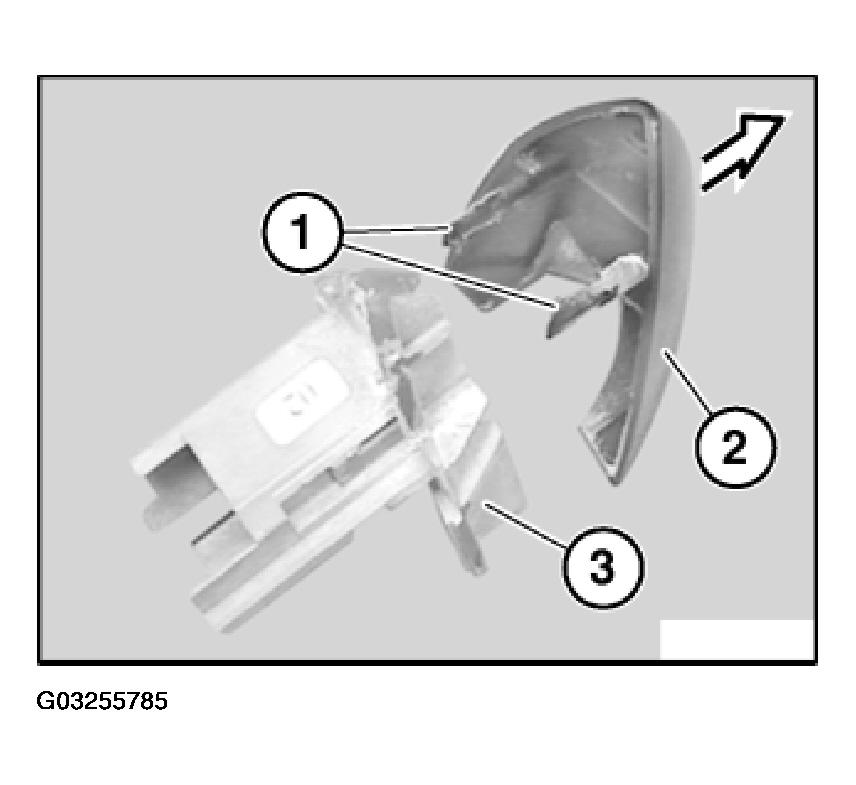

Lever out catches (1) and detach cover (2) from filler element (3).

Fig 4: Detaching Cover From Filler Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on cover (2) must not be damaged.
