51 21 140 Removing and installing/replacing complete lock cylinder

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

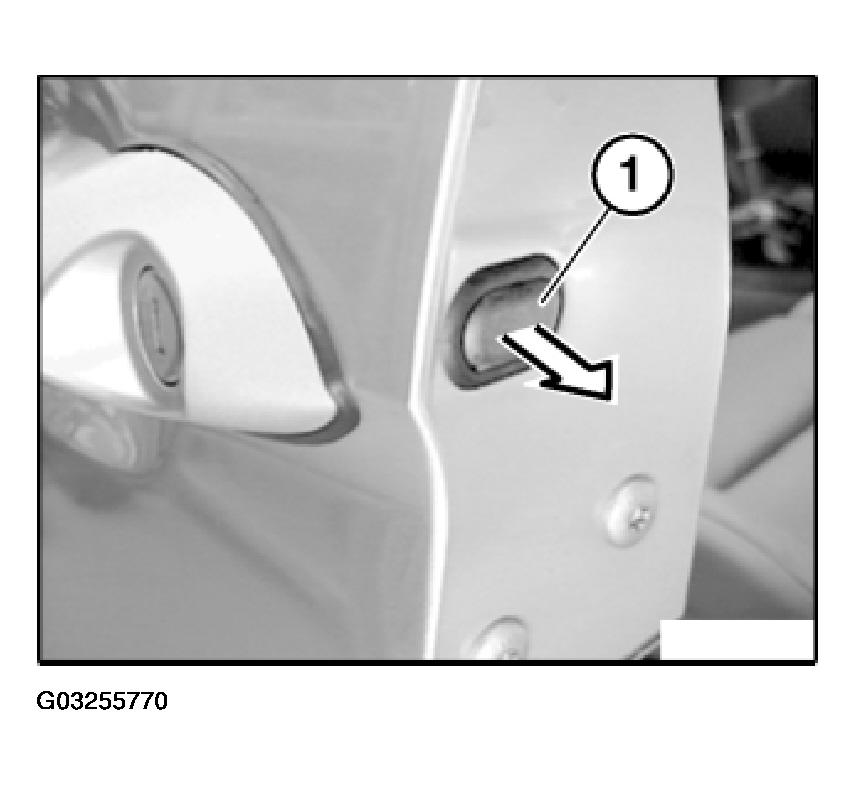

Remove plate (1).

Fig 1: Removing Plate

G03255770

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit new plate (1).

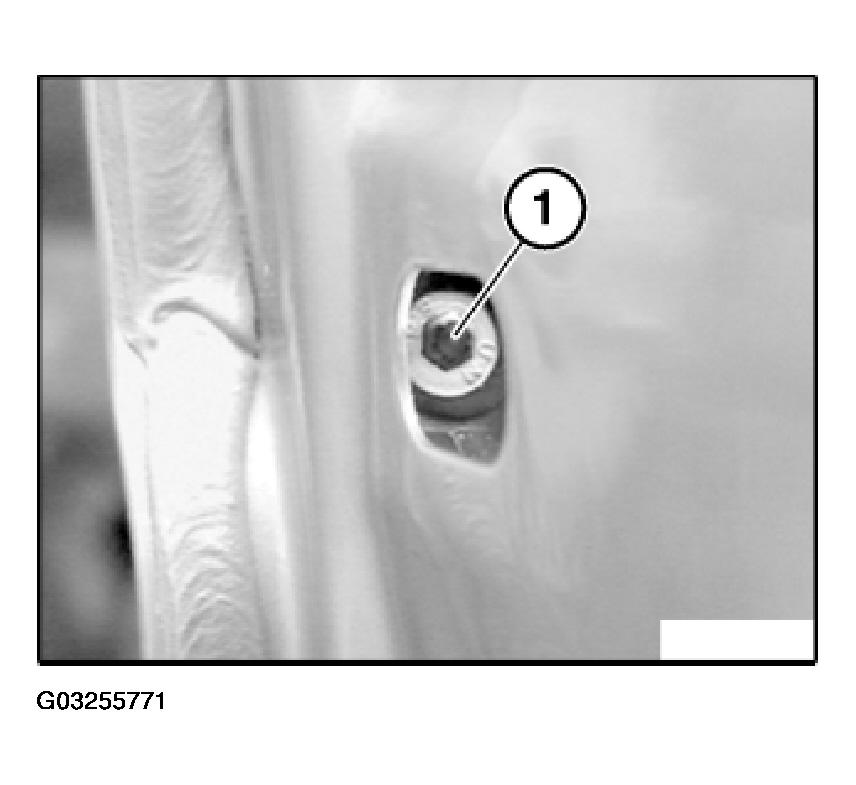

Release screw (1).

Fig 2: Releasing Screw

G03255771

Courtesy of BMW OF NORTH AMERICA, INC.

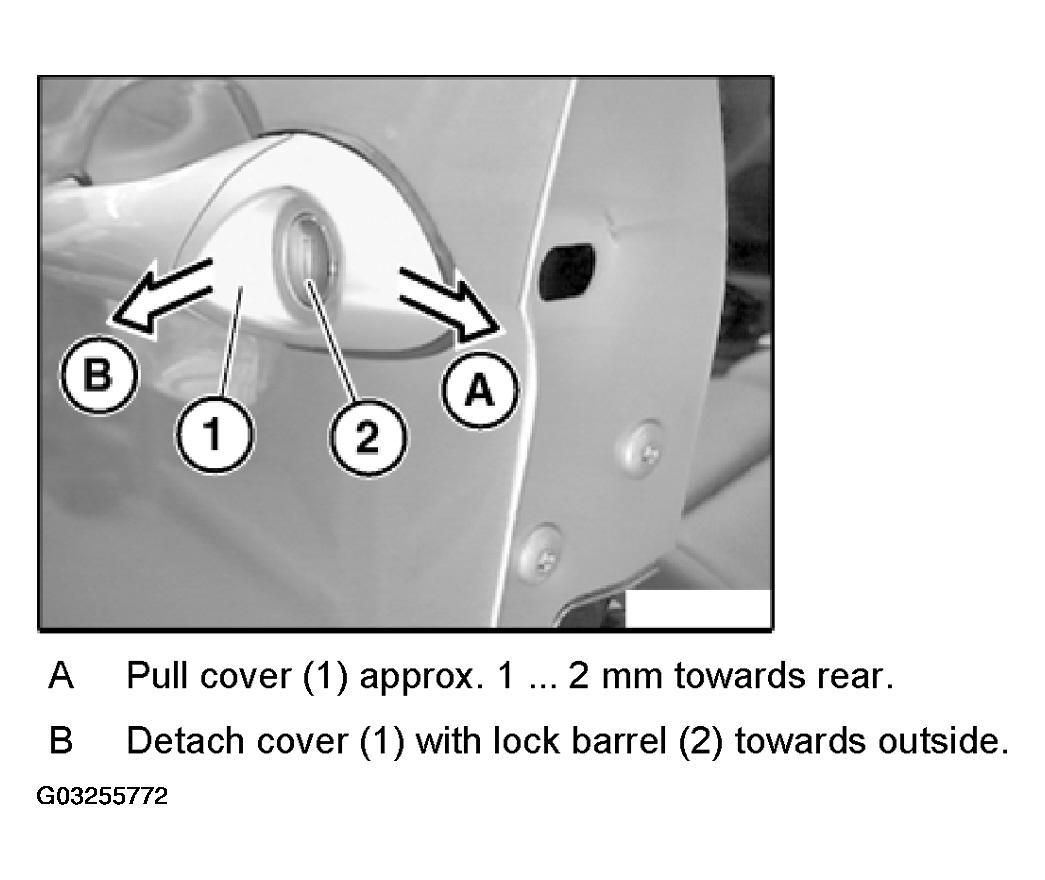

Removing cover (1) on outside handle:

Pull cover (1) approx. 1 - 2 mm towards rear.
Detach cover (1) with lock barrel (2) towards outside.

Fig 3: Removing Cover On Outside Handle

G03255772

Courtesy of BMW OF NORTH AMERICA, INC.

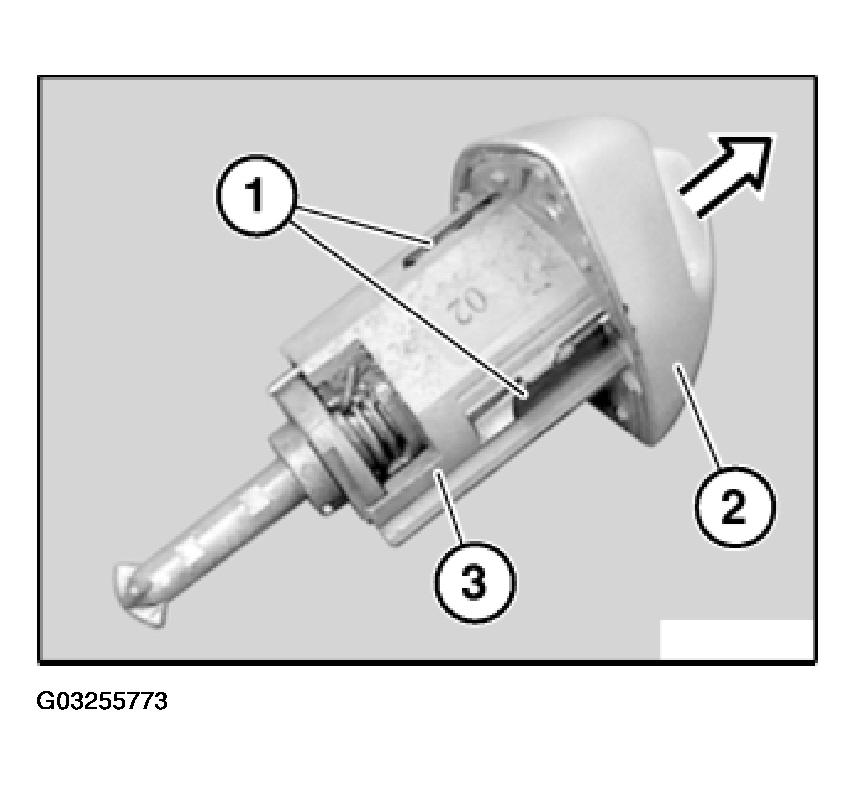

Remove catches (1) and detach cover (2) from lock cylinder (3).

Fig 4: Removing Catches And Detaching Cover From Lock Cylinder

G03255773

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

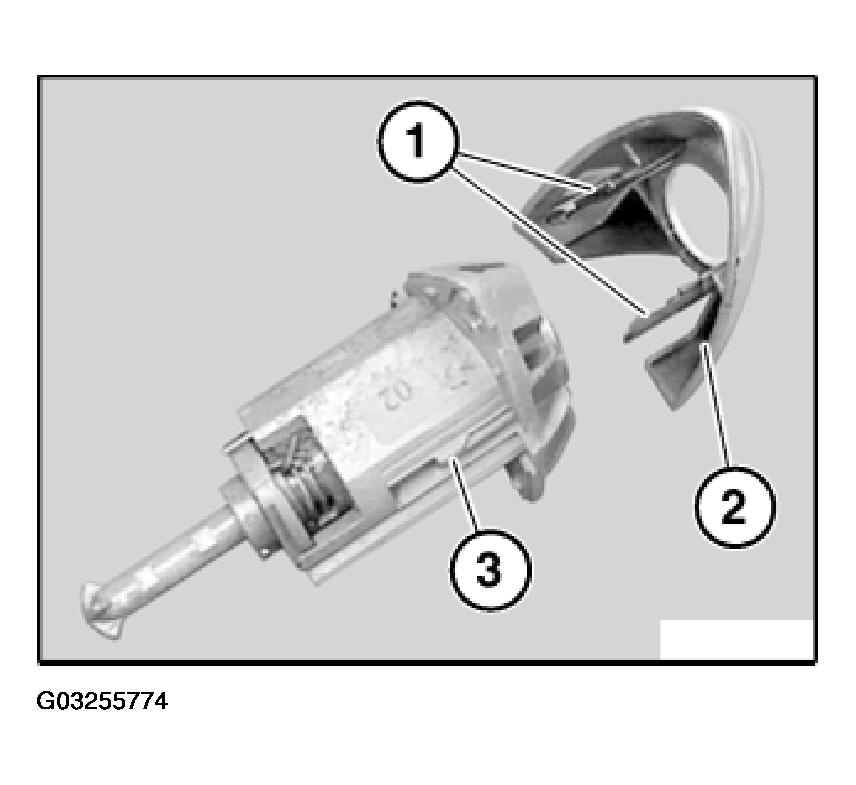

Catches (1) on cover (2) must not be damaged.

Fig 5: Identifying Lock Cylinder Catches

G03255774

Courtesy of BMW OF NORTH AMERICA, INC.

(3) Lock cylinder.

Installation:

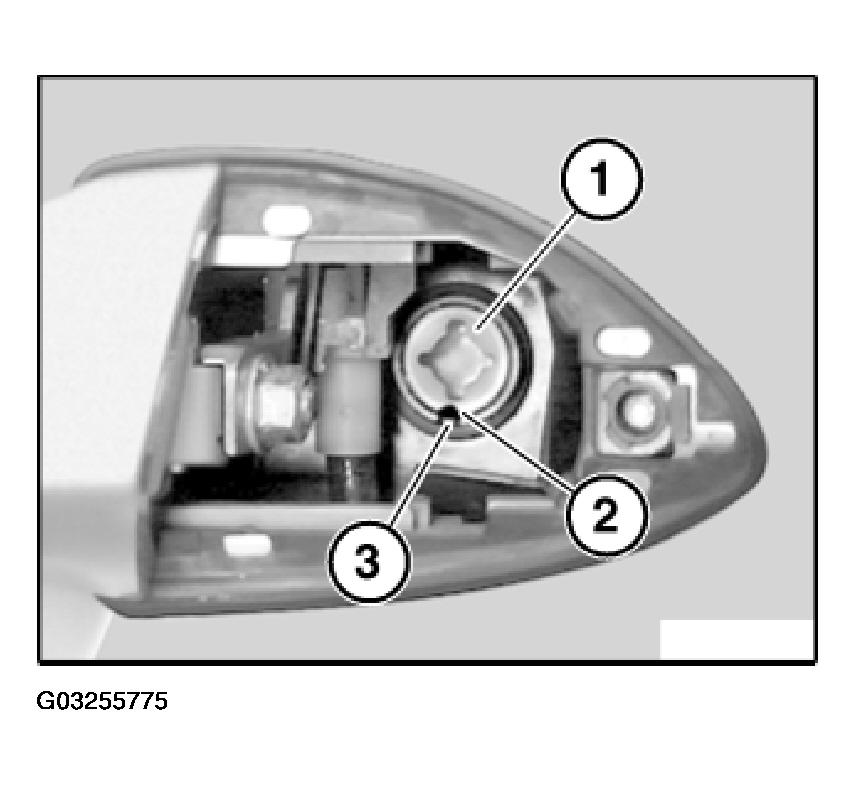

Notch (2) on paddle support (1) must be secured in catch (3).

Fig 6: Aligning Notch On Paddle Support

G03255775

Courtesy of BMW OF NORTH AMERICA, INC.

Only in this position will installation of the lock barrel be guaranteed.
