51 11 180 Removing and installing/replacing grille for bumper trim (from 10/03)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (FROM 10/03) .

Slide grill (3) in direction of arrow until lug (1) rests against stop (2) of bumper trim (4).

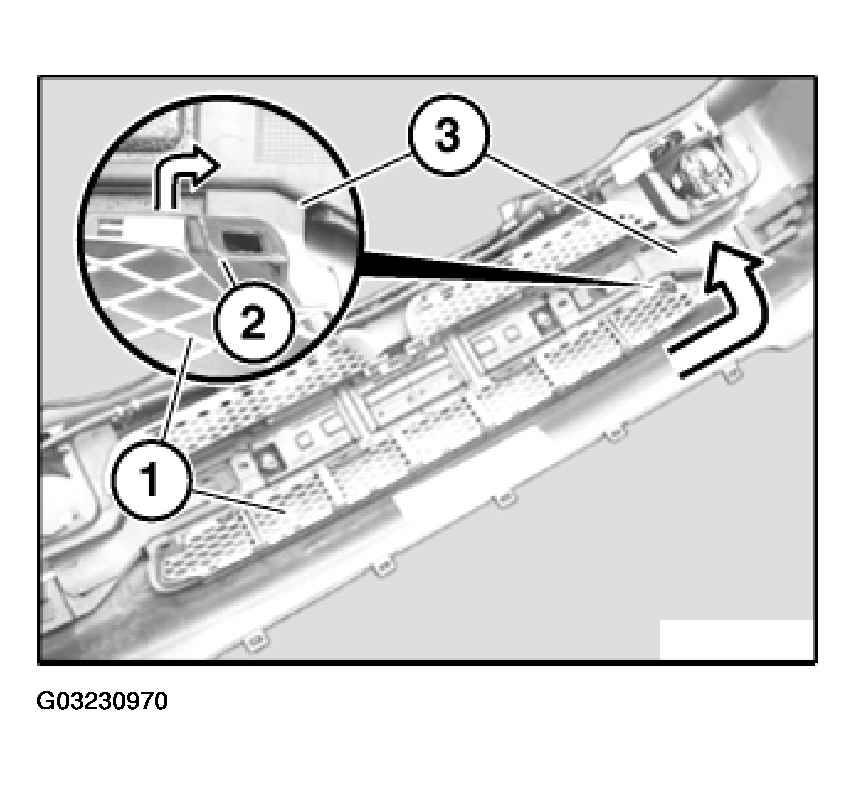

Fig 1: Aligning Lug Against Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Raise lug (1) and unhook grill (3) in direction of arrow.

Installation:

Hooks (1) on trim (2) must not be damaged.

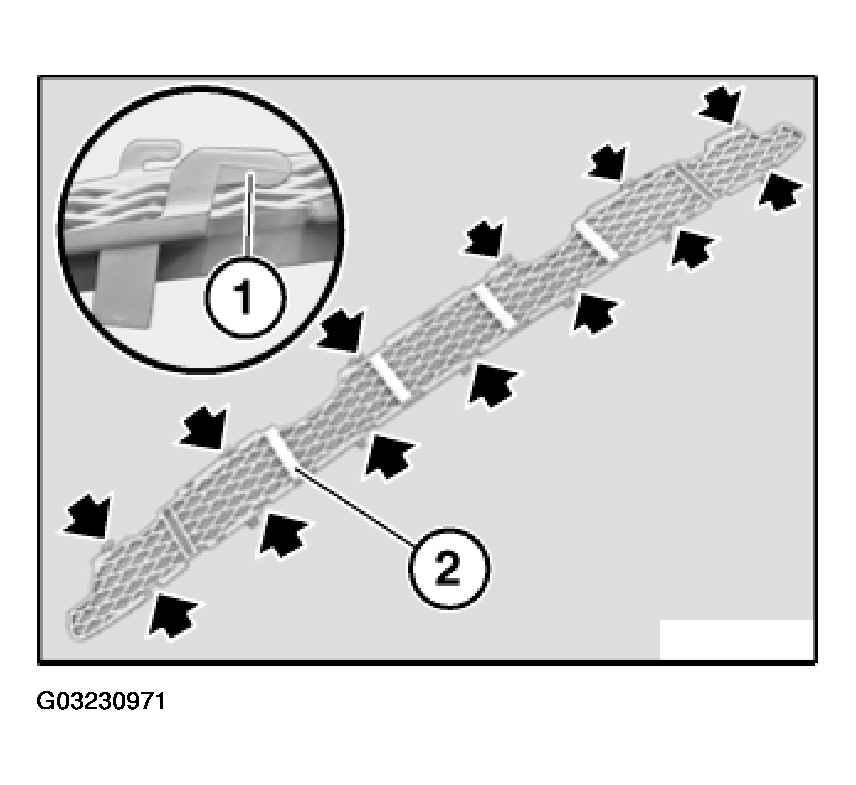

Fig 2: Identifying Hooks On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Slide grill (1) in direction of arrow until it rests against stop (2) of bumper trim (3).

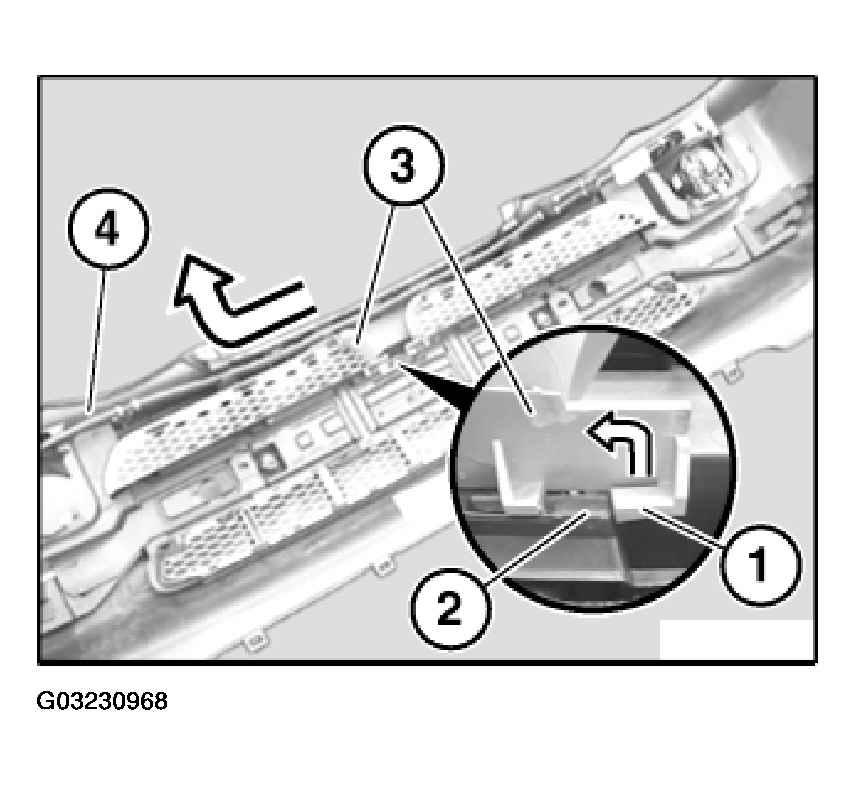

Fig 3: Locating Stop Of Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Raise grill (1) and unhook in direction of arrow.

Installation:

Hooks (1) on trim (2) must not be damaged.

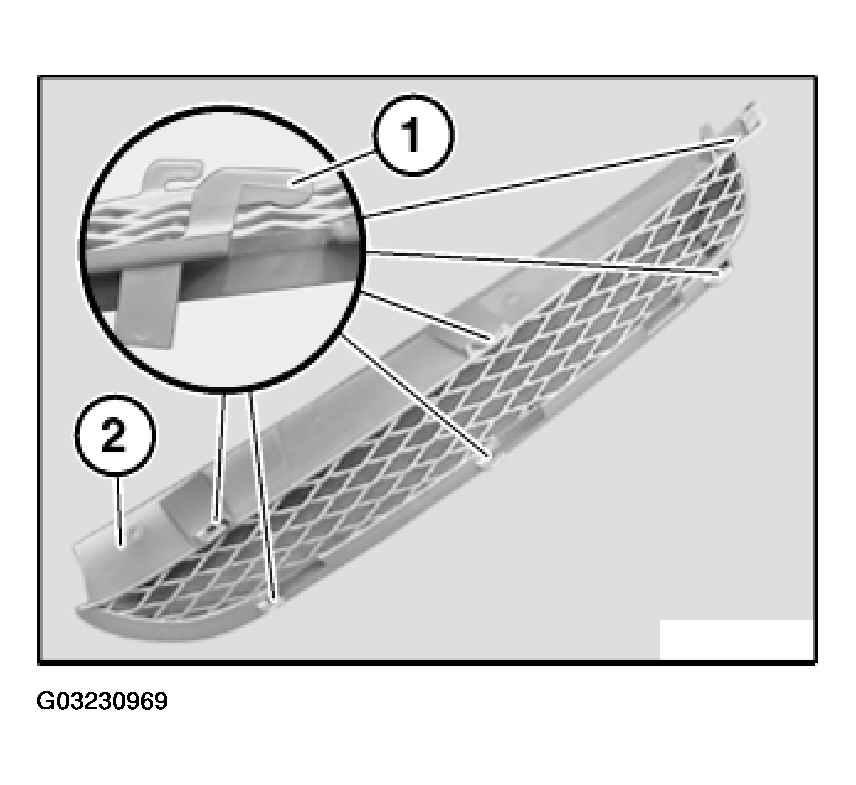

Fig 4: View Of Trim Hook

Courtesy of BMW OF NORTH AMERICA, INC.
