51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Field Of Vision (No Repairs Acceptable):

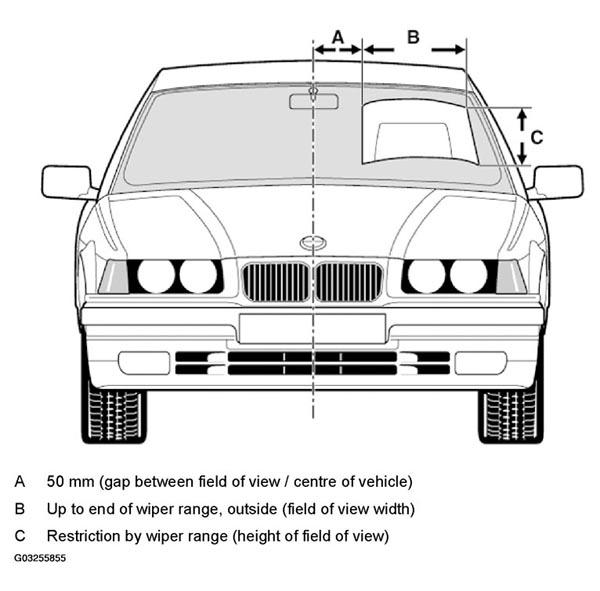

Fig 1: Identifying Dimensions Of Field Of Vision

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to sketch).

If the stone chip damage is outside the field of vision, replace windscreen.
