51 47 491 Removing and installing/replacing rear underbody protection

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration shows one example only. Differences in detail may be possible in the different engine variants.

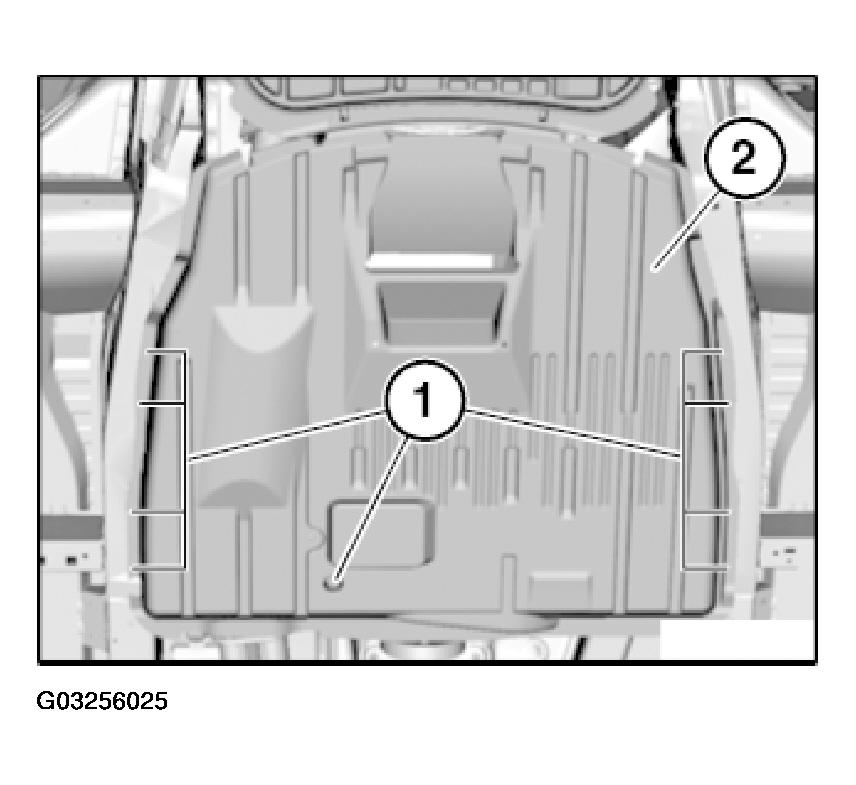

Fig 1: Removing Rear Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove underbody protection (2).

Installation:

Ensure correct seating.

Center underbody protection (2) and tighten down all screws.
