51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Unlock luggage compartment floor trim panel (1) at handle (2) and remove.

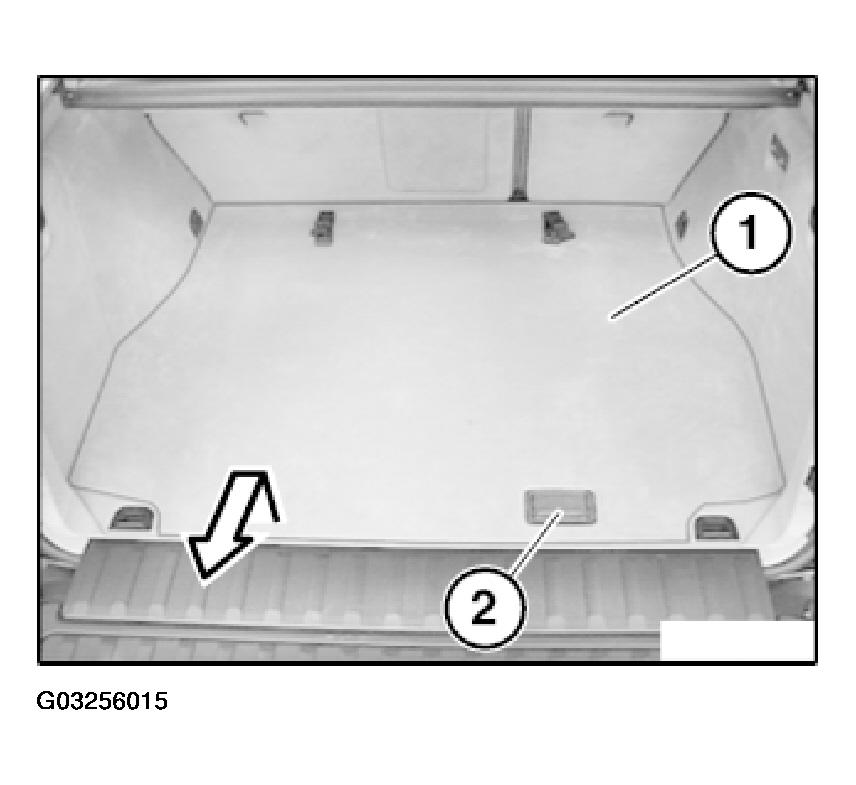

Fig 1: Unlocking Luggage Compartment Floor Trim Panel At Handle
G03256015Courtesy of BMW OF NORTH AMERICA, INC.
