51 15 330 Removing and installing or replacing body molding on left or right front door

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Detach rubbing strip (1).

Installation:

Clean glued area.

Detach protective film from new rubbing strip and stick on.

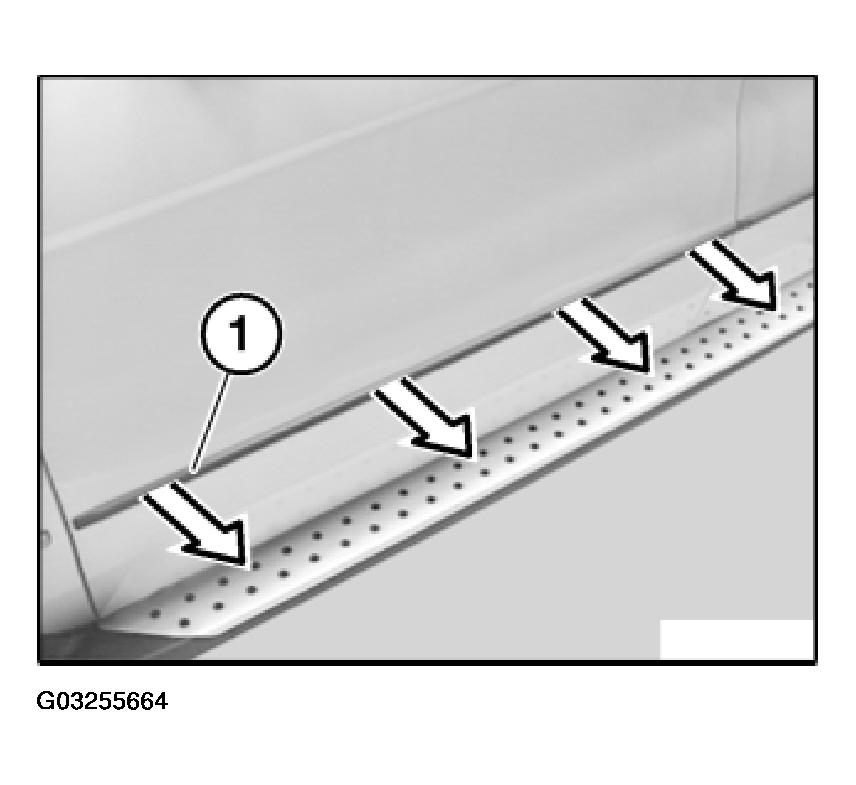

Fig 1: Removing Rubbing Strip
G03255664Courtesy of BMW OF NORTH AMERICA, INC.
