51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 318

Lever out badge with special tool 00 9 318 and remove towards top.

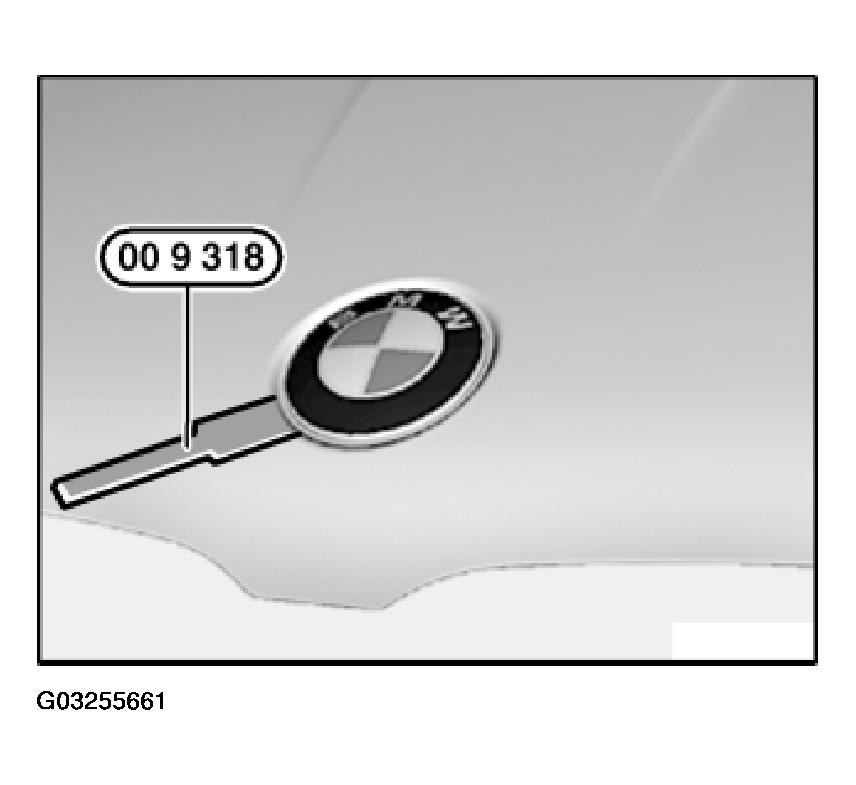

Fig 1: Levering Badge Off Hood With Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of badge (1) must not be damaged or missing:

(2) Guide pins.
(3) Grommets.

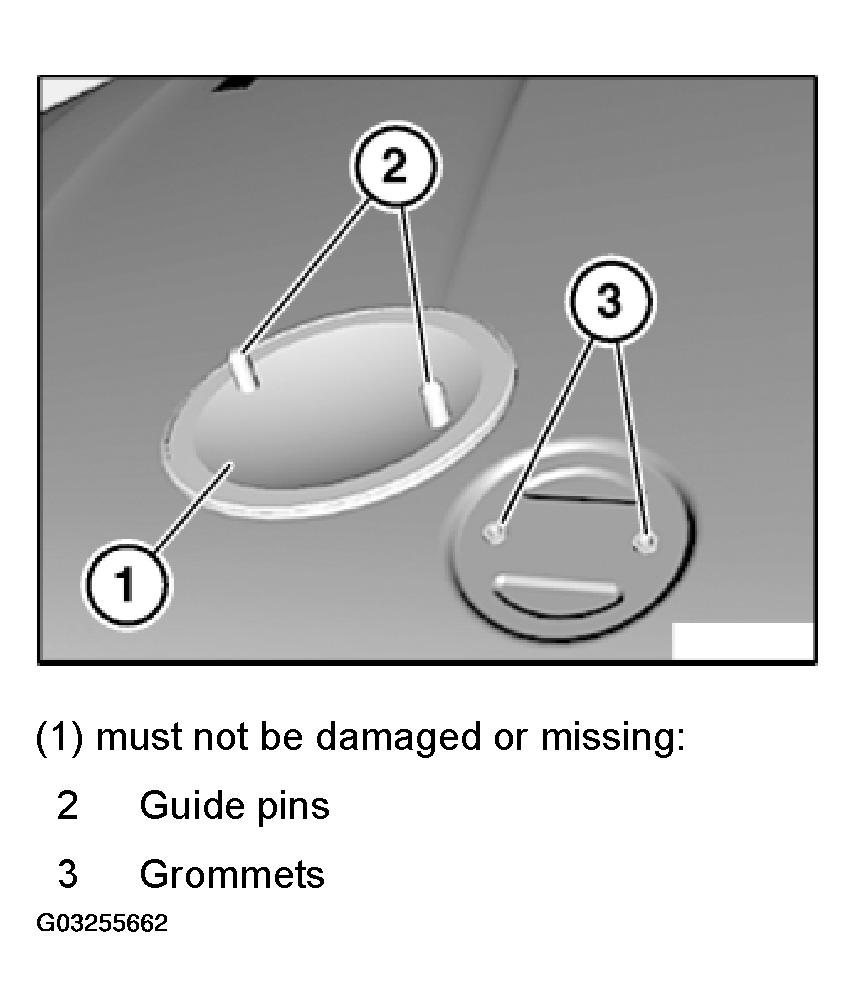

Fig 2: Locating Guide Pins And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.
