17 11 100 Removing and installing/replacing coolant expansion tank (M54/M57)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

NOTE: Follow instructions for working on cooling system. Refer to 17 00 ... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .

Remove front underbody protection.

Recycling:

Catch and dispose of escaping coolant.

Observe country-specific waste-disposal regulations.

Installation:

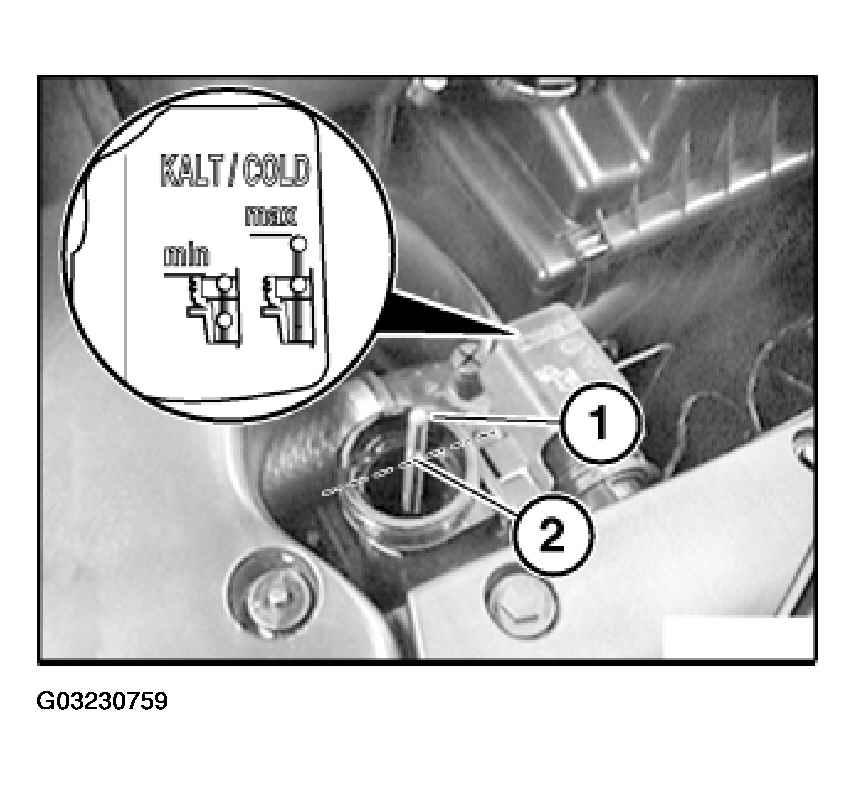

Slowly top up coolant expansion tank with coolant until marking (2) on float needle has reached height of top edge on expansion tank (maximum fill level).

Fig 1: Identifying Level On Float Needle

G03230759

Courtesy of BMW OF NORTH AMERICA, INC.

Use only recommended coolant.

NOTE: Tank marking indicates coolant level at approx. 20° C. Vent cooling system and check for leaks.17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (M54/M56) .

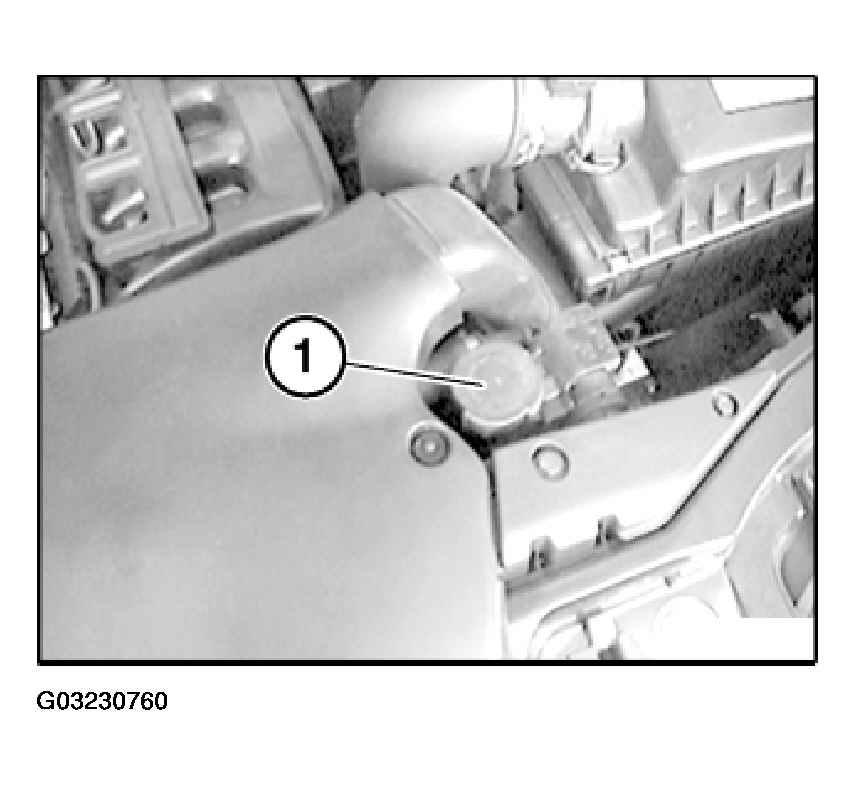

Open cap (1) on coolant expansion tank.

Fig 2: Locating Coolant Expansion Tank Cap

G03230760

Courtesy of BMW OF NORTH AMERICA, INC.

Manual Transmissions Only:

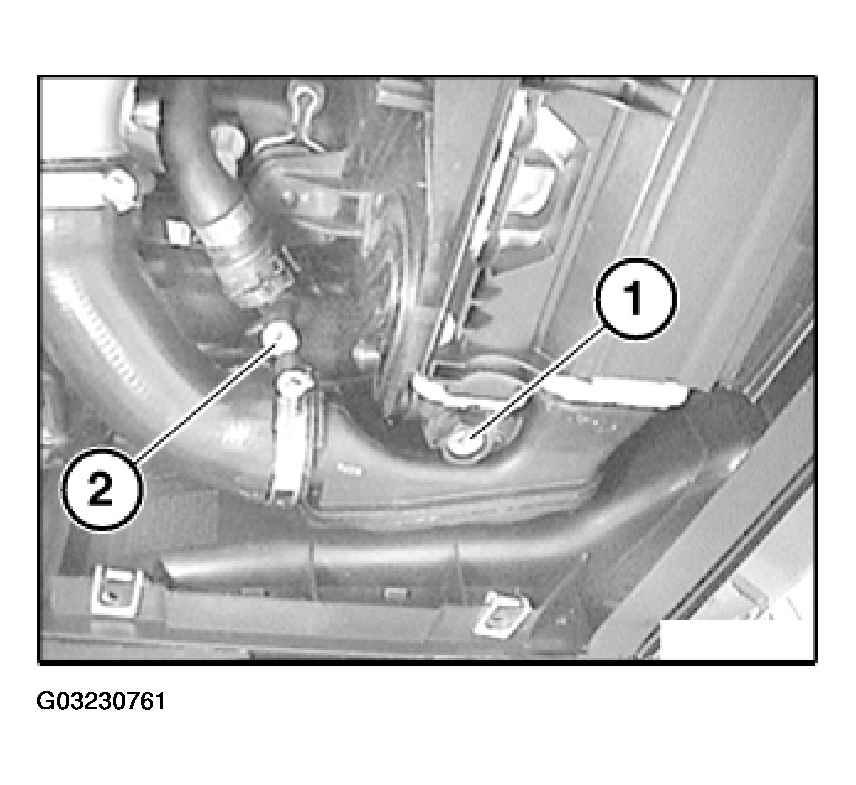

Drain coolant from coolant expansion tank via drain plug (2).

Tightening torque, (8 N.m).

Fig 3: View Of Coolant Expansion Tank Drain Plug

G03230761

Courtesy of BMW OF NORTH AMERICA, INC.

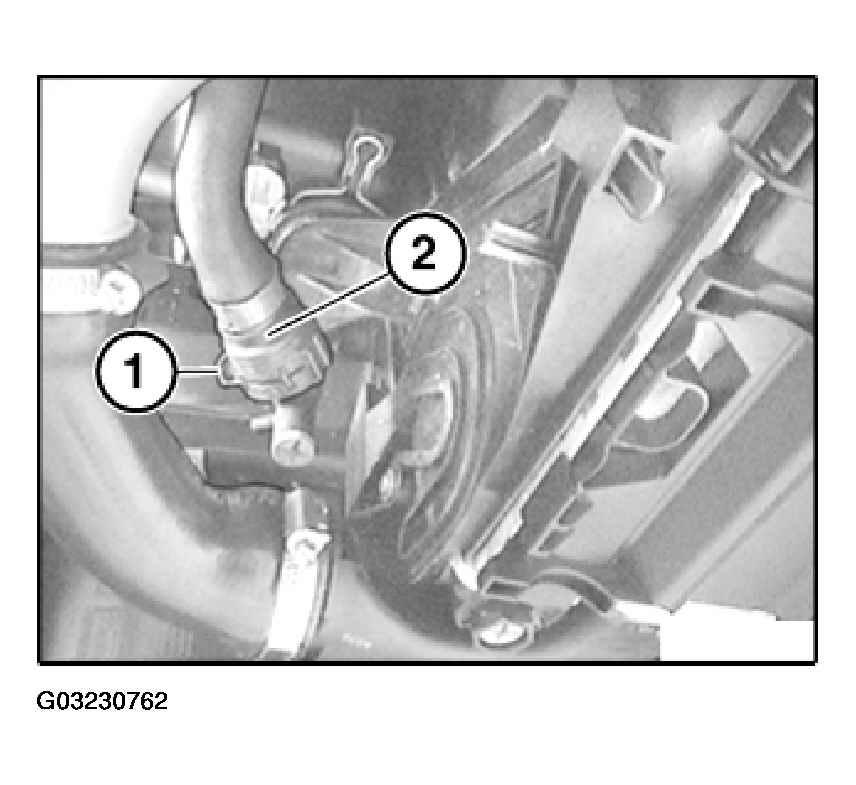

Lever out locking clamp (1).

Detach hose (2) from connection piece.

Fig 4: Detaching Hose And Locking Clamp

G03230762

Courtesy of BMW OF NORTH AMERICA, INC.

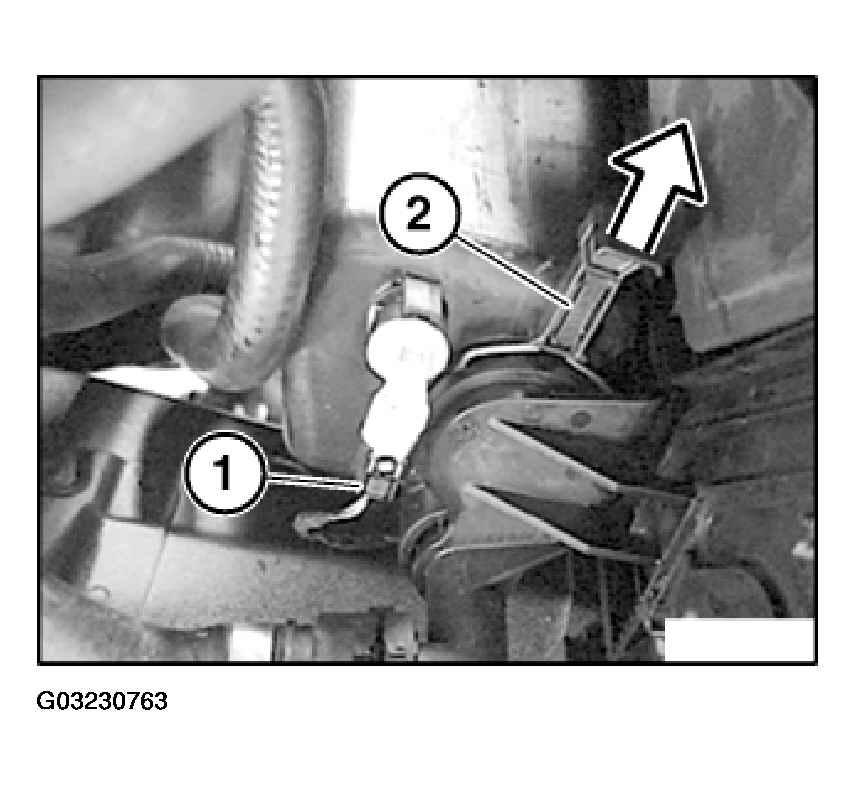

Unfasten plug connection (1) and disconnect.

Pull out lock (2).

Fig 5: Disconnecting Coolant Level Sensor Plug Connection

G03230763

Courtesy of BMW OF NORTH AMERICA, INC.

When Replacing Expansion Tank:

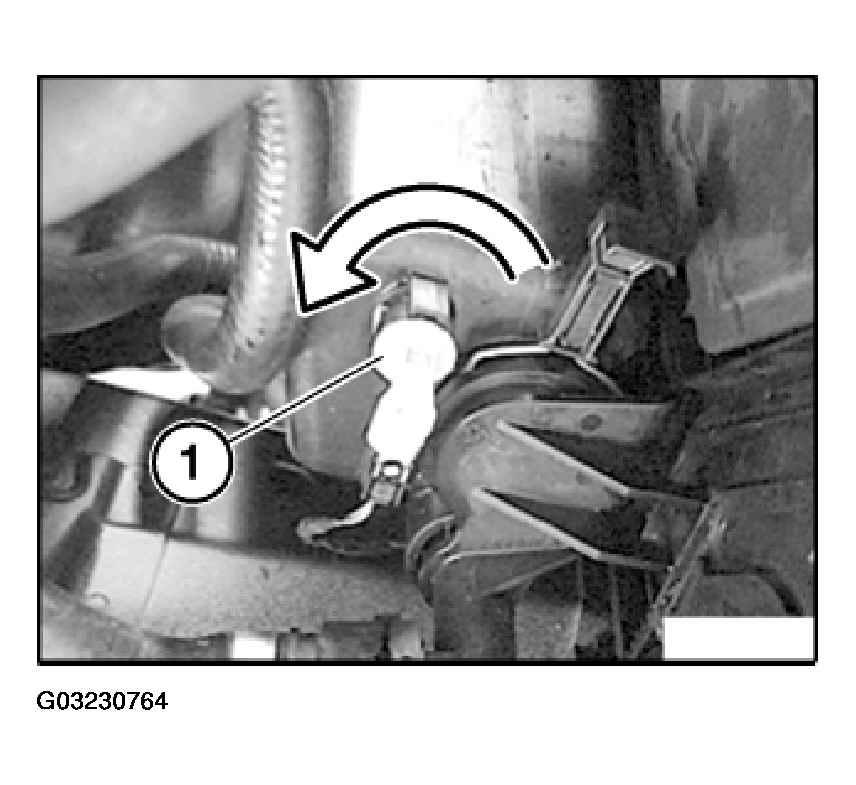

Unlock coolant level sensor (1) by turning and pull out of coolant expansion tank.

Fig 6: Removing Coolant Level Sensor

G03230764

Courtesy of BMW OF NORTH AMERICA, INC.

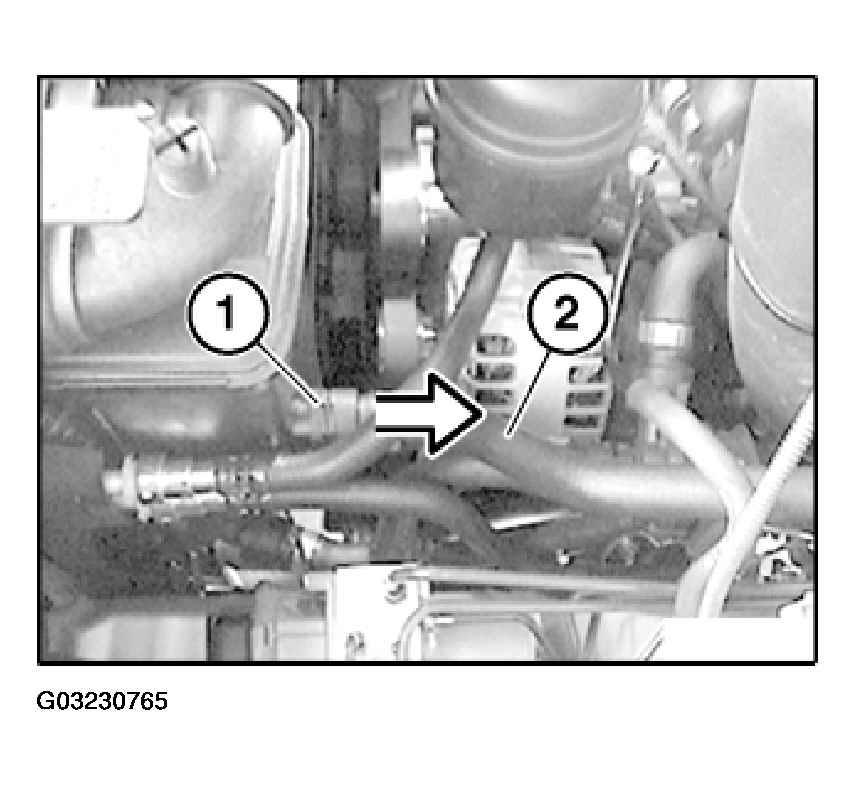

Pull lock (1) upwards and detach coolant hose (2) from coolant expansion tank.

Fig 7: Detaching Hose From Coolant Expansion Tank

G03230765

Courtesy of BMW OF NORTH AMERICA, INC.

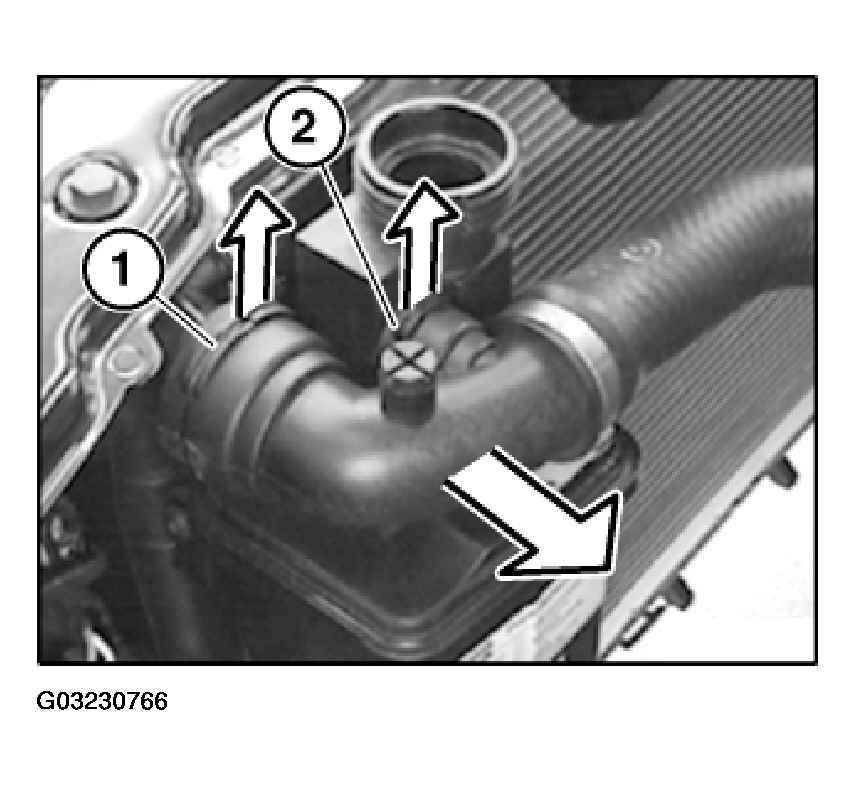

Pull lock (1/2) upwards and detach coolant hose.

Fig 8: Removing Coolant Hose

G03230766

Courtesy of BMW OF NORTH AMERICA, INC.

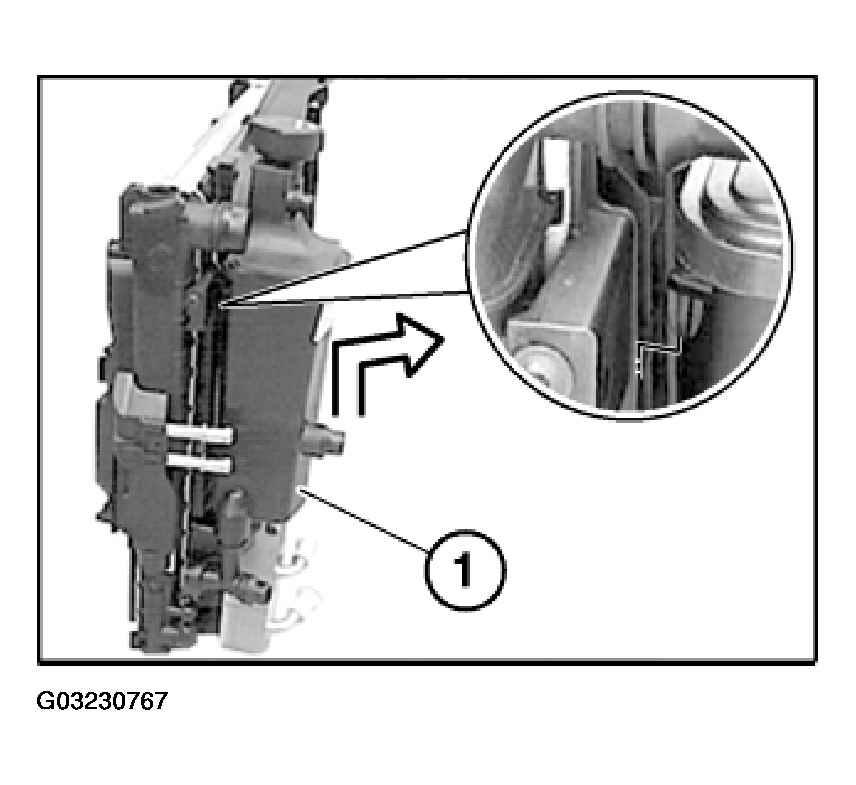

Pull coolant expansion tank first upwards and then towards rear out of retaining plate.

Withdraw coolant expansion tank from lower connection piece.

Fig 9: Removing Coolant Expansion Tank

G03230767

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing rings, replace if necessary. Do not under any circumstances coat sealing rings with antiseize agent.

Retaining lug must engage in opening in retaining plate.
