13 54 250 Replacing intake hose (between air-mass flow sensor and connecting piece) (M54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Release hose clamp (3).

Detach intake hose (5) from air-mass flow sensor.

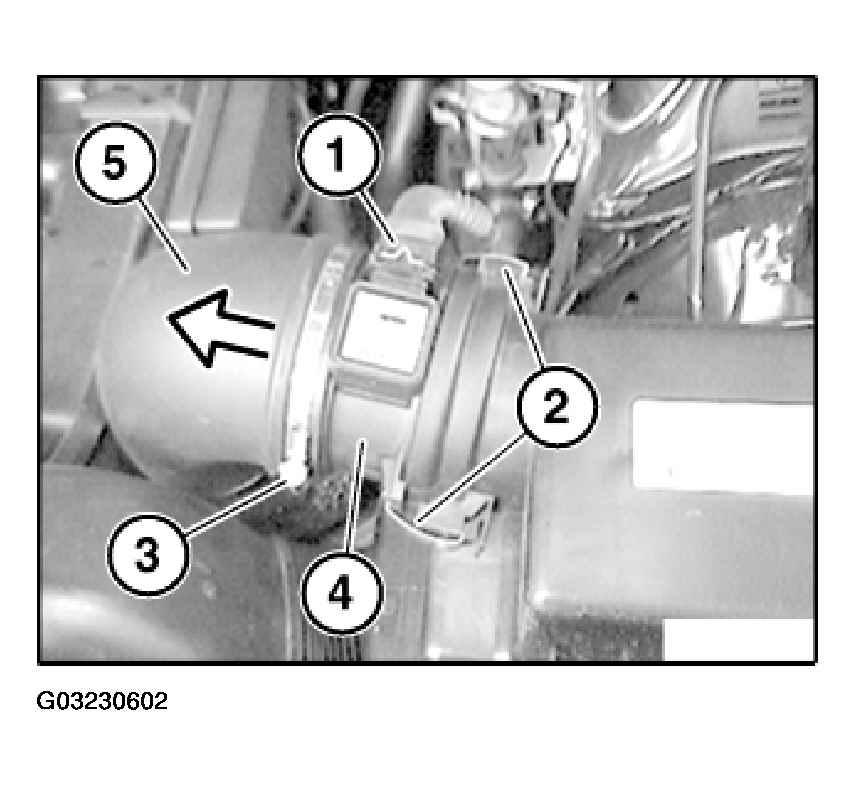

Fig 1: Detaching Intake Hose From Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring (1) between air-mass flow sensor and intake hose for damage, replace if necessary.

Coat sealing ring (1) with acid-free grease.

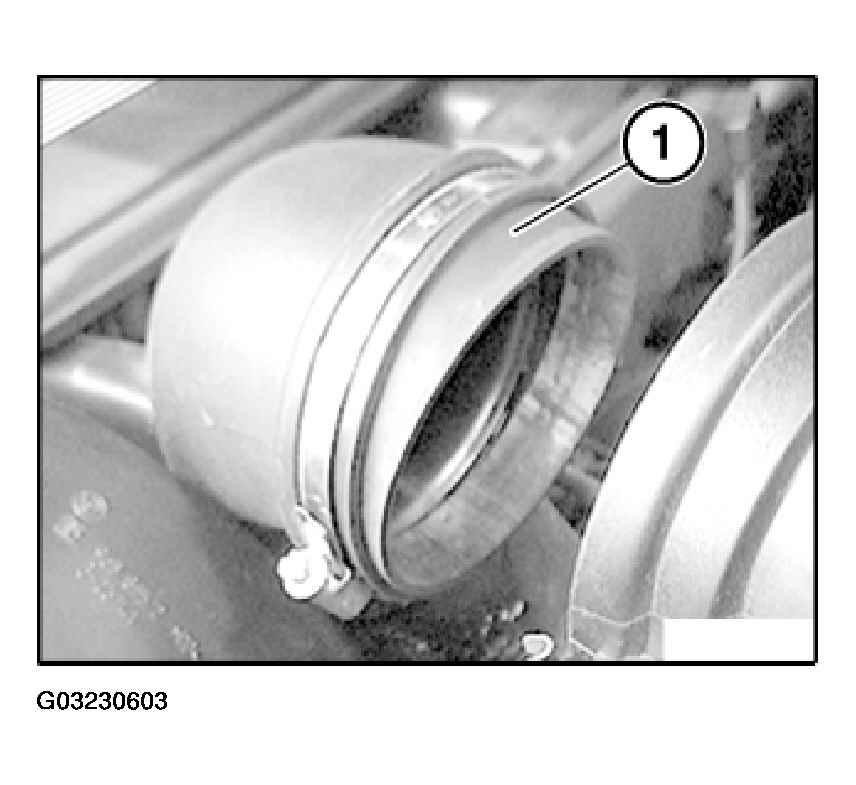

Fig 2: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable tie (2) of line (1) on intake hose (3).

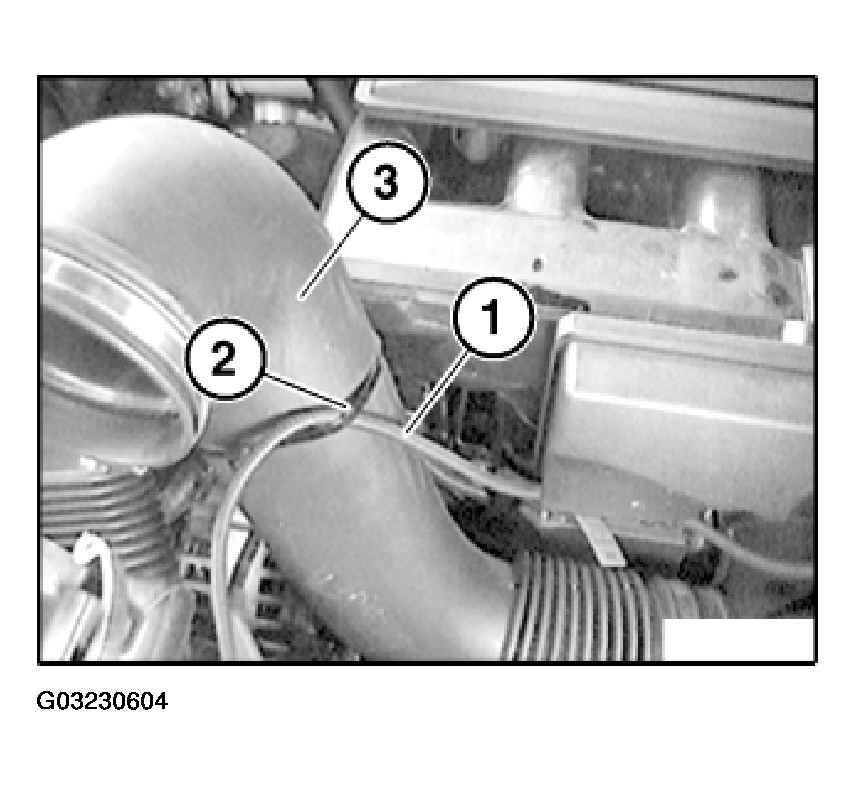

Fig 3: Detaching Cable Tie Of Intake Hose Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Pull intake hose (2) out of connecting piece and remove.

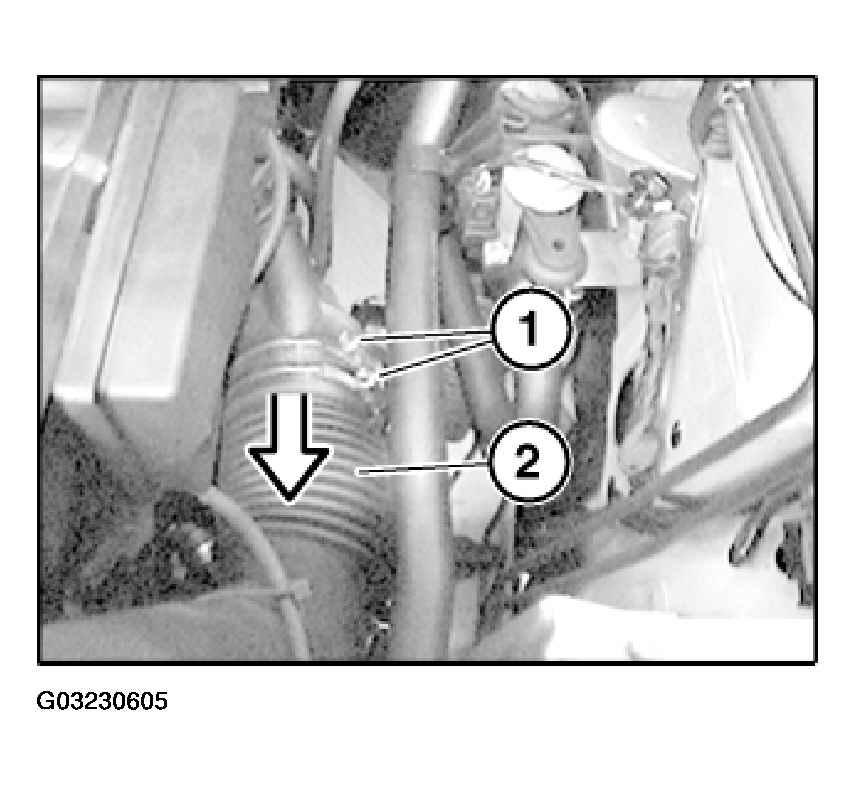

Fig 4: Removing Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.
