13 62 511 Replacing intake air temperature sensor (M52TU, M54)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove cover from fuel injectors.

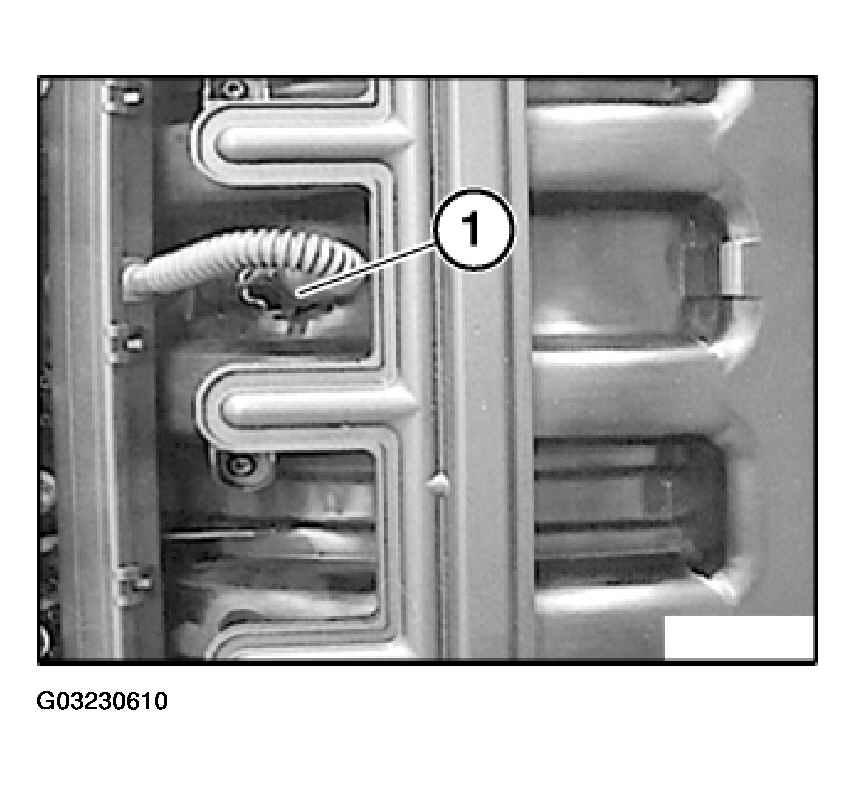

Disconnect plug connection (1) for temperature sensor.

Fig 1: Disconnecting Plug Connections For Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

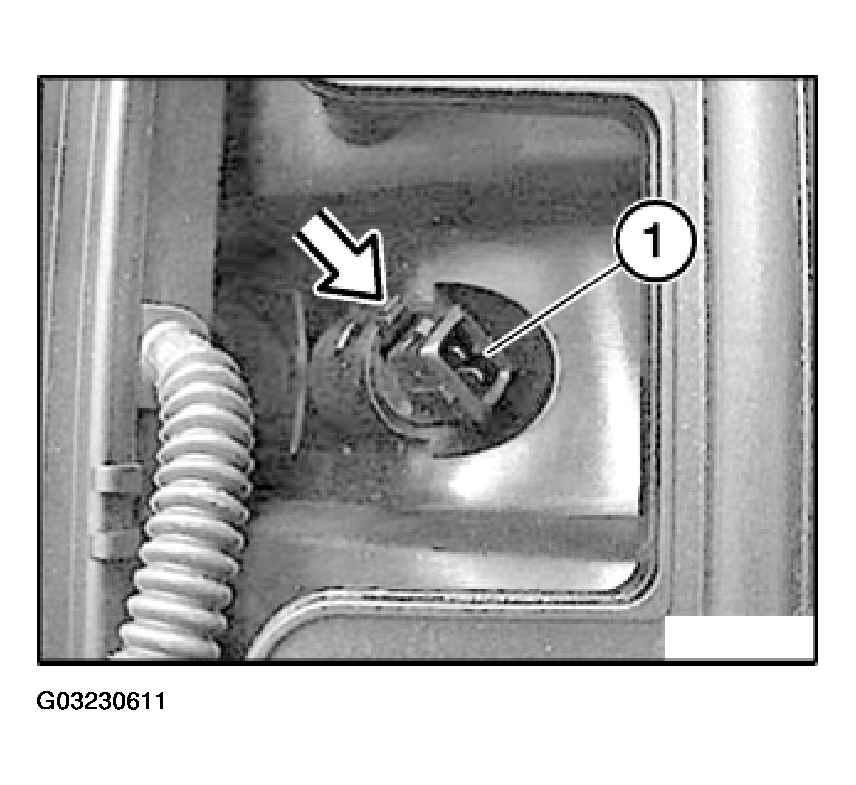

Press catch and withdraw temperature sensor (1) from intake air manifold.

Fig 2: Removing Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring on temperature sensor for damage, replace if necessary.

Coat sealing ring with antiseize agent.

NOTE: Read out fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
