Swivel Bearing: Removal

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel bearing. See WHEEL BEARING .
Release nut on tie rod. See Figure .
Force off steering tie rod with special tool (31 1 100/130). The special tool must be converted if it is to be used on the right tie rod. See Fig 1 .
Remove guard plate. See Fig 2 .
Remove control arm and tension strut from swivel bearing.
Pull swivel bearing downwards and remove.

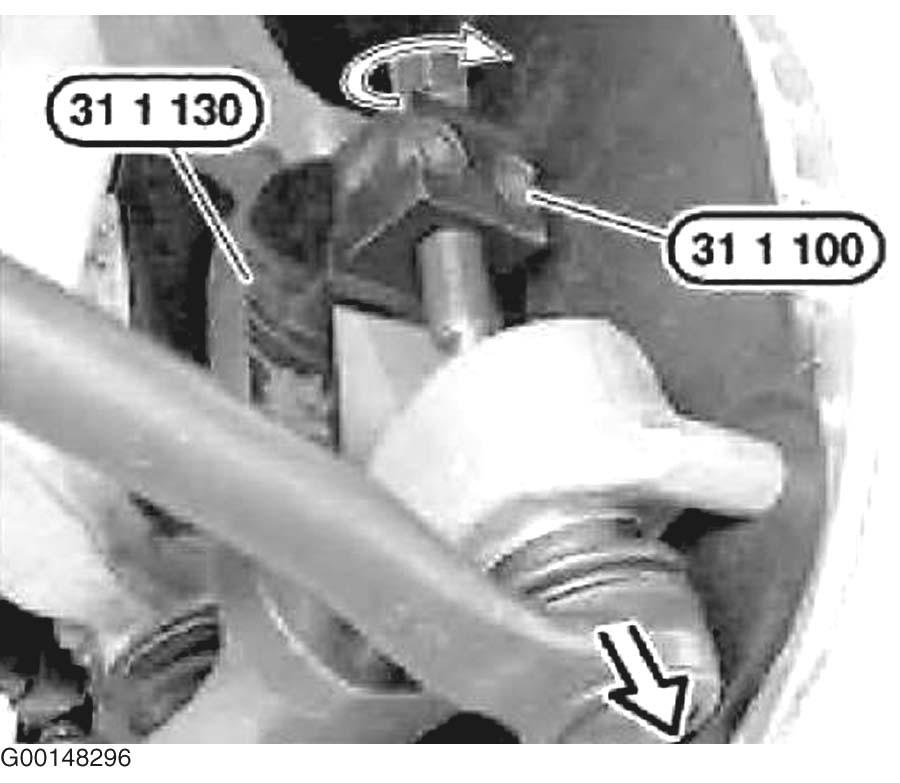

Fig 1: Forcing Off Tie Rod

Courtesy of BMW OF NORTH AMERICA, INC.

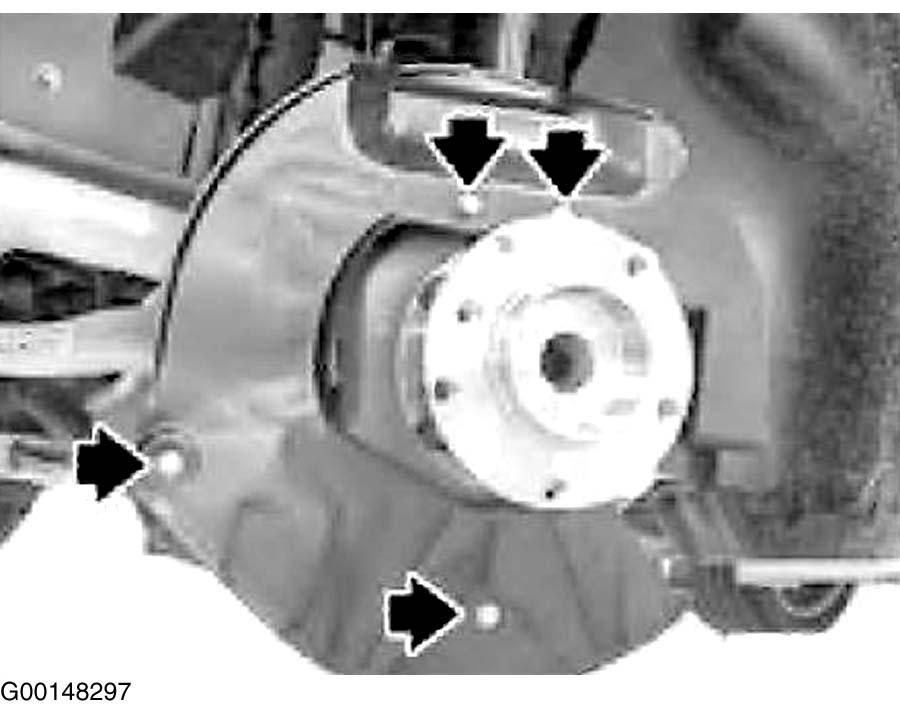

Fig 2: Removing Guard Plate

Courtesy of BMW OF NORTH AMERICA, INC.
