Front Suspension Assembly: Installation
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse removal procedure. Replace all self-locking nuts. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

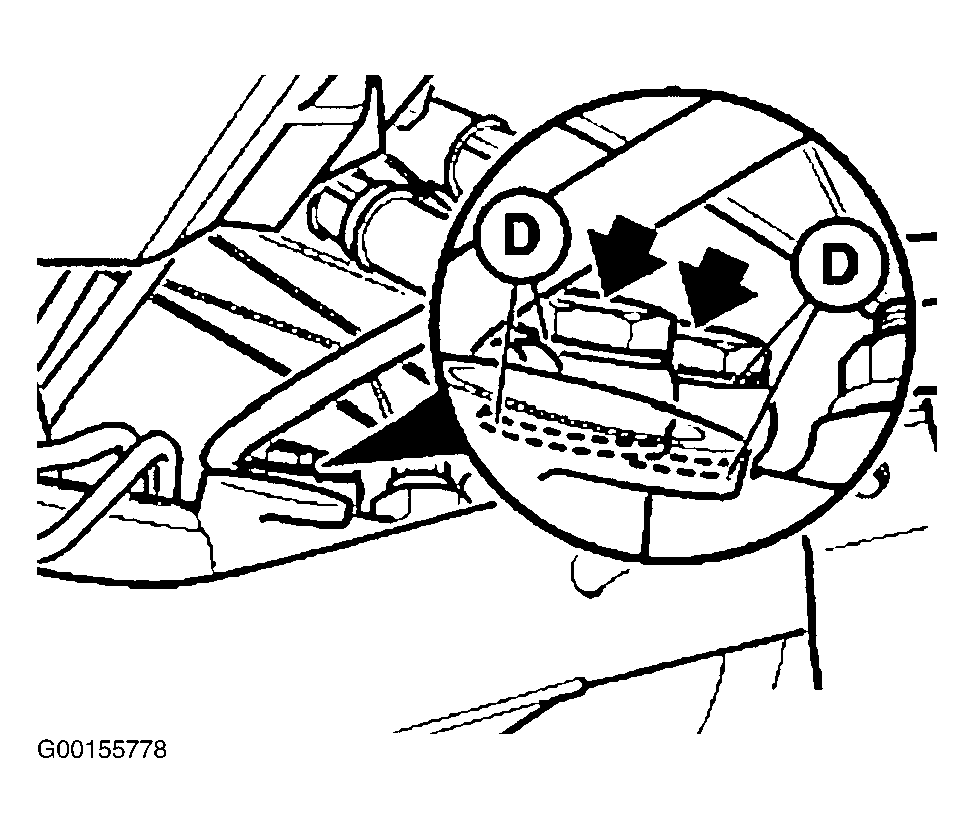

- Ensure all clips, holders, and hydraulic lines are attached. Replace sealing rings (D). See Fig 1 .
- Refill hydraulic fluid.
- Ensure match marks on steering gear and universal joint are aligned. See Figure .
- Clamping screw must be located in groove of steering shaft. Tighten to specification. See TORQUE SPECIFICATIONS .
- Check and adjust front wheel alignment. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.
- Bleed power steering system. See appropriate POWER RACK & PINION article.
