Special Tools

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Hydro-Lifter Basic Unit (00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

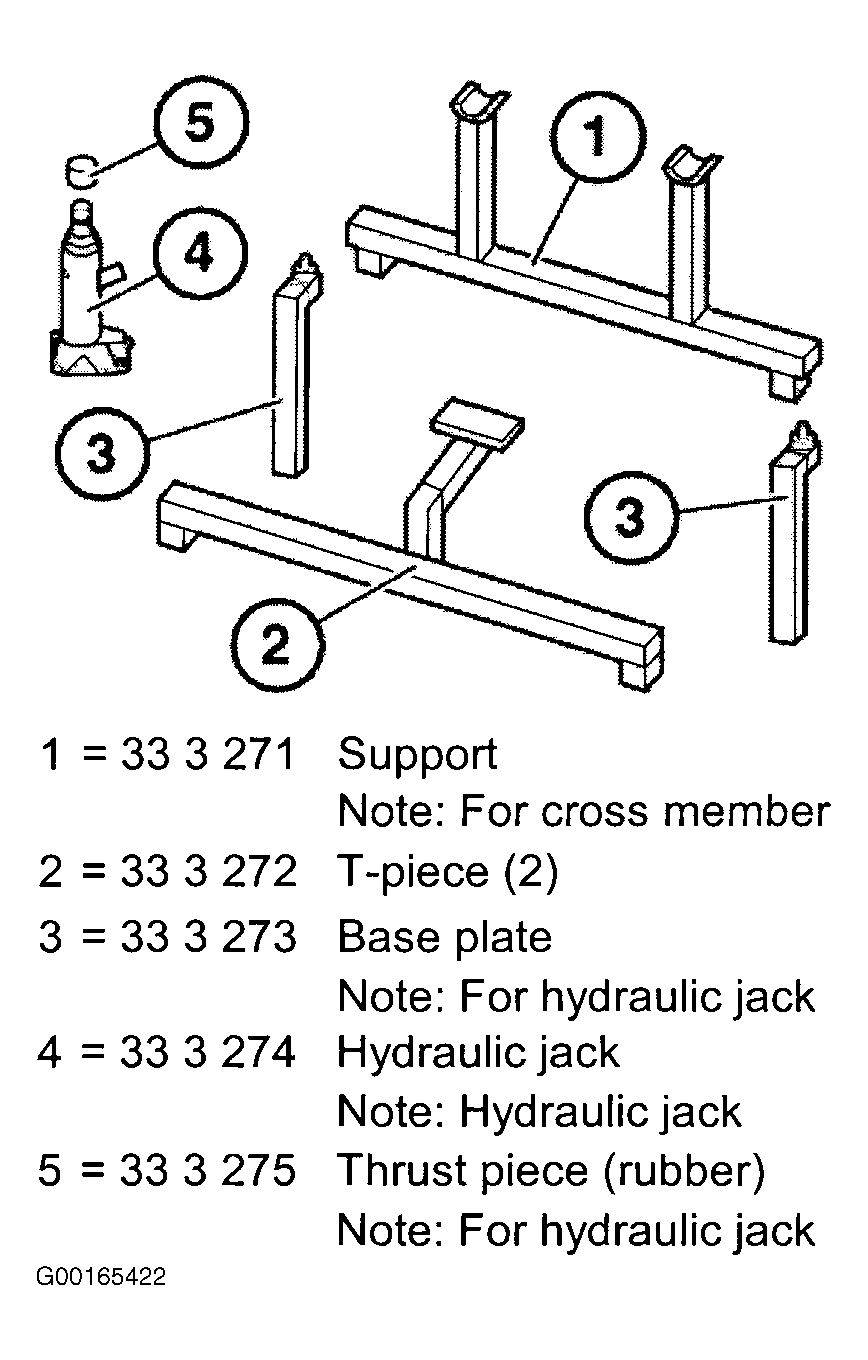

Fig 2: Identifying Set Of Supports (33 3 270)

Courtesy of BMW OF NORTH AMERICA, INC.

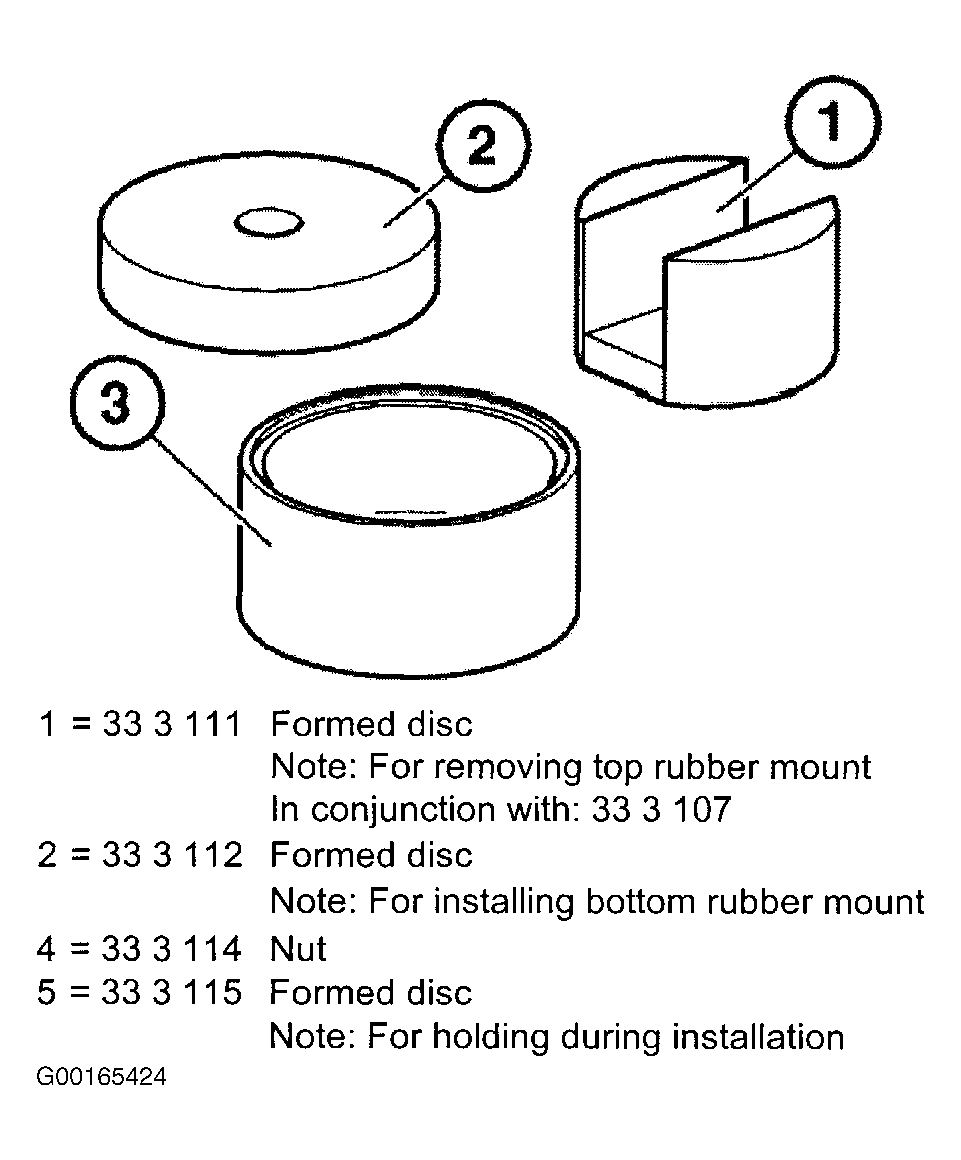

Fig 3: Identifying Set Of Tools (33 3 100)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Tool (33 3 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Identifying Universal Puller Kukko 21/5, 22-2 (00 8 550)

Courtesy of BMW OF NORTH AMERICA, INC.
