Trailing Arm: Removal
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support rear of vehicle. Remove rear wheel.
- Remove parking brake cable from parking brake lever. See appropriate DISC article in BRAKES.
- Remove coil spring. See COIL SPRING .
- Disconnect ABS speed sensor.
- Disconnect brake pad wear indicator, if necessary.
- Unscrew stabilizer on trailing arm, if necessary.
- Install brake pedal support and actuate brake pedal. This prevents brake fluid from escaping from the brake system when the brake line is disconnected. Disconnect brake line at union on trailing arm. See Figure .

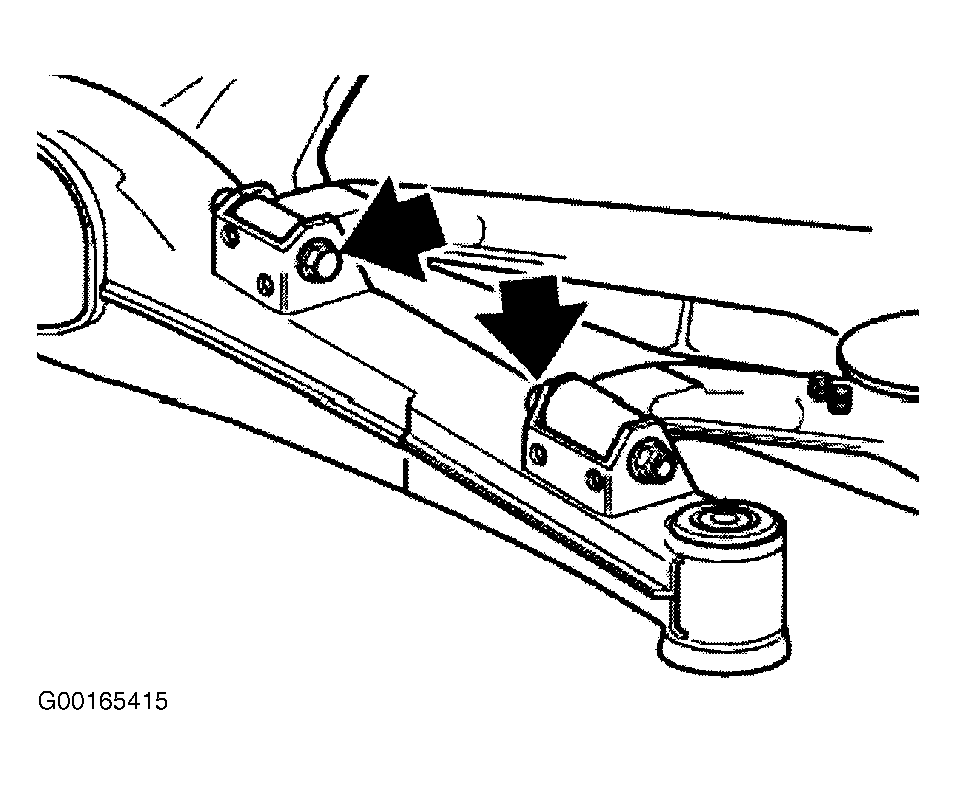

- Using a jack, support trailing arm from underneath. Remove 2 trailing arm-to-rear subframe bolts. Remove trailing arm. See Fig 1 .
