Shock Absorber: Removal

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

On convertible models, remove shock absorber nuts located under plastic caps in the convertible top compartment. On Z3 Roadster, remove panel from convertible top compartment. On all other vehicles, remove trunk trim.
Raise and support vehicle. Using a jack, support trailing arm and unfasten screw (1). See Fig 1 .
If necessary, remove reinforcement plate. Pull off cap. Unscrew nuts and remove shock absorber. See Fig 2 .

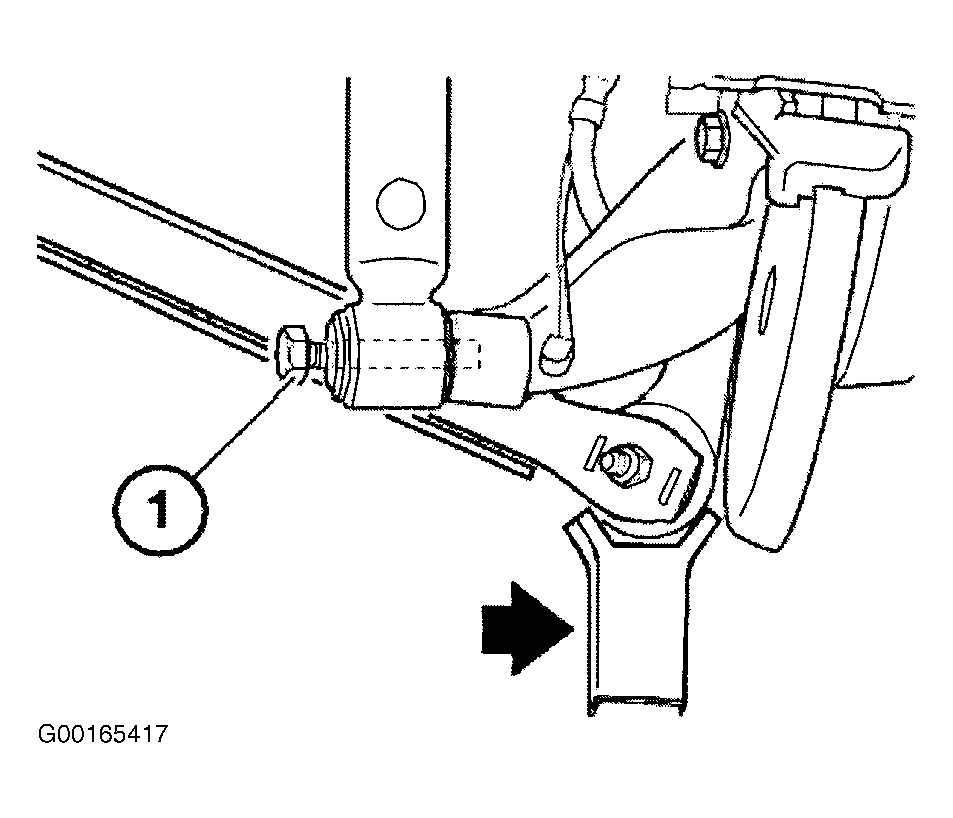

Fig 1: Locating Trailing Arm Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Locating Shock Absorber Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
