Shock Absorber: Installation
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse removal procedure. Replace all self-locking nuts and tighten to specification. See TORQUE SPECIFICATIONS .
- When replacing the shock absorber, always ensure that the replacement unit is marked with the same code (K) as the old shock absorber. See Fig 1 .
- Install NEW seal between body and shock absorber.

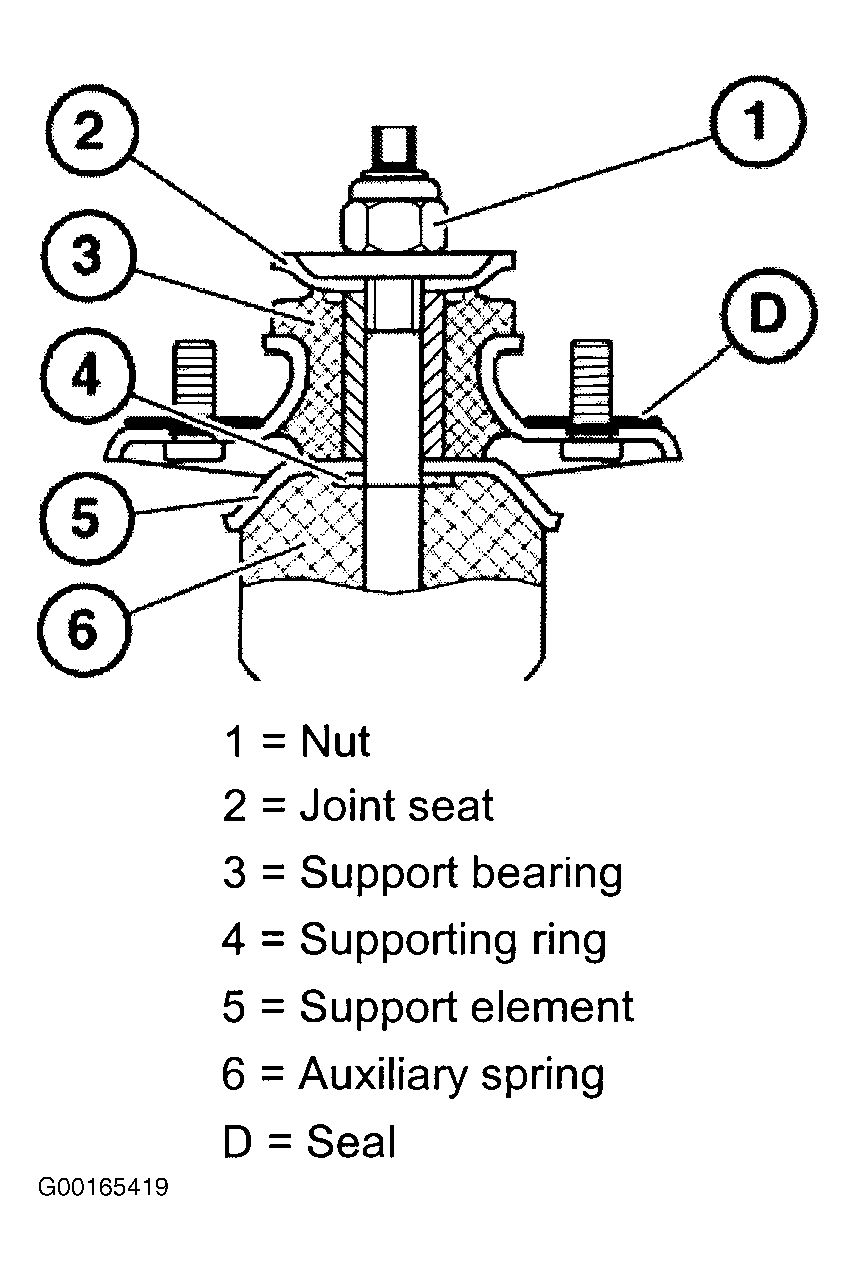

- On Z3 Roadster and coupe, if the support bearing is replaced, stick a rubber ring in middle of underside of joint seal (2) and in middle on upper side of support element (5). It is essential to ensure that rubber ring is stuck on exactly in middle so that when screwed on ring is not jammed between inner sleeve of support bearing (3) and joint seal (2) or support element (5). See Fig 2 .
