Coil Spring: Installation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only refit coil springs with identical BMW number. On the rough road package version, the spring pad top is .8" (22 mm) thick.

Check coil spring for surface damage and check spring mounts. Replace if necessary.
To install, reverse removal procedure. Use washer (1). See Fig 1 . Tighten screw to specification. See TORQUE SPECIFICATIONS .

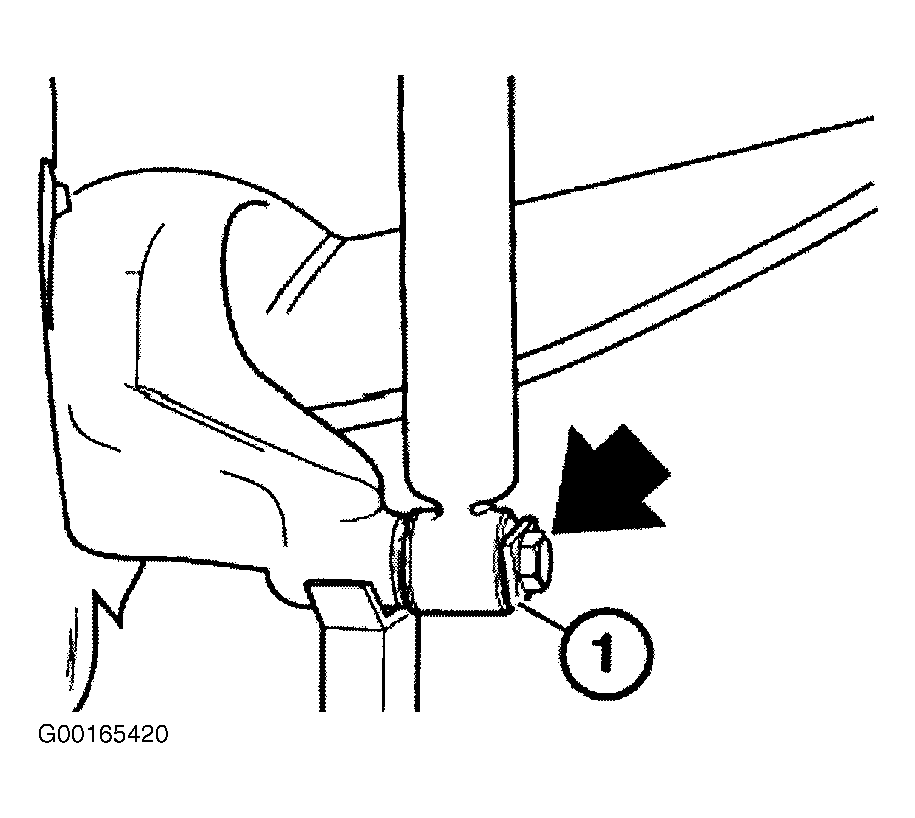

Fig 1: Locating Trailing Arm Washer

Courtesy of BMW OF NORTH AMERICA, INC.
