65 11 ... Notes on handling CD changers
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tools identification, see SPECIAL TOOLS - Z3
.
Special Tools Required:
NOTE:
To ensure trouble-free CD changer operation, ensure both suspension springs are correctly positioned (horizontal/vertical). If necessary, correct adjustment. To avoid premature contamination of the CD changer, make sure the magazine compartment flap is permanently closed.
NOTE:
For purposes of clarity, the following illustrations show the CD changer removed.
Emergency changer magazine release:

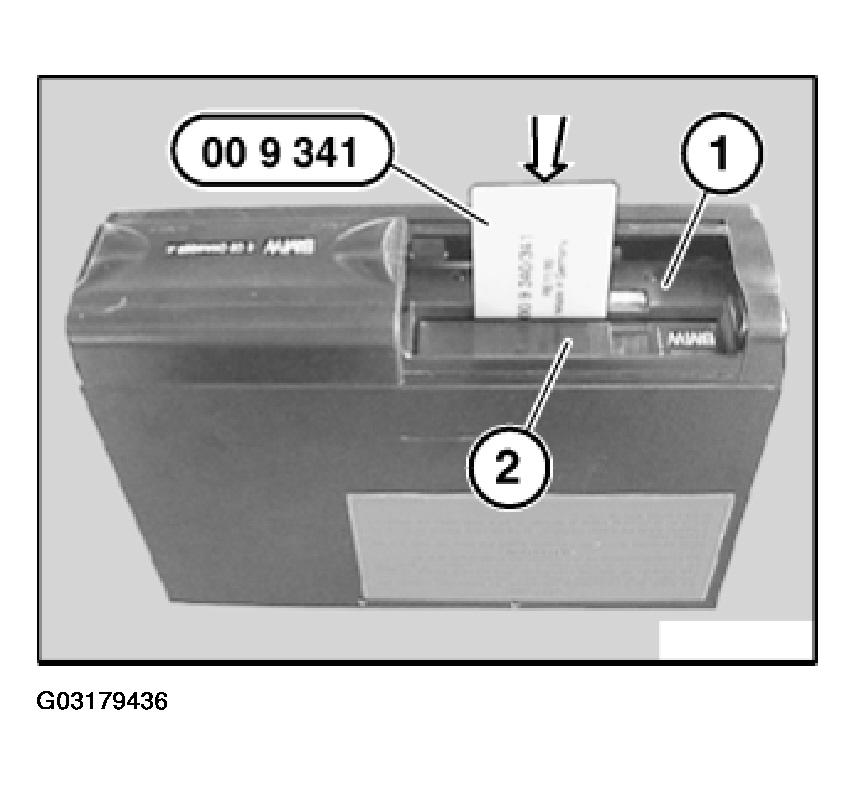

Insert special tool 00 9 341 as illustrated into CD changer (1) and release changer magazine (2).
Important!
Do not use force to remove changer magazine (2).
Remove changer magazine (2) after ejection from CD changer (1).
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
The following work steps are only possible in installed state.
If there is still a CD in the CD changer after the changer magazine has been removed, proceed as follows.
Insert the empty changer magazine into the CD changer. When the eject button is pressed, the CD remaining in the changer magazine is transported back and ejected.
NOTE:
If there are still two or more CDs in the CD changer after the changer magazine has been removed, the following work steps must be carried out.
After the changer magazine has been manually removed, the eject button must be pressed again.

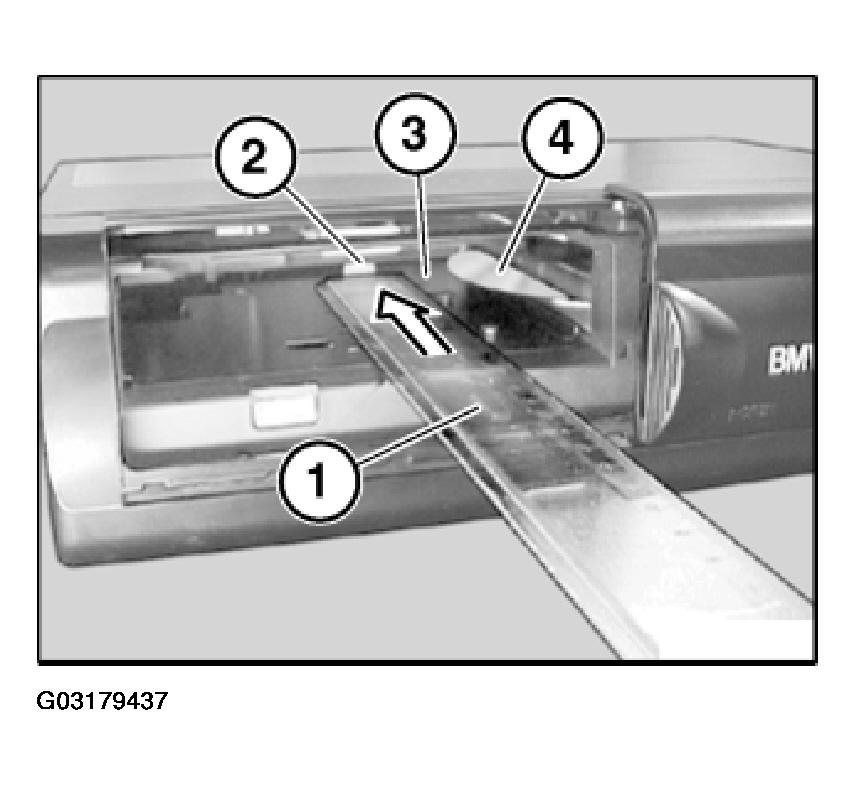

Slide back eject lever (2) with a flat plastic ruler (1).
NOTE:
Guide plastic ruler (1) as illustrated flat on inside of housing (3).
The CDs (4) are ejected as soon as the eject lever (2) has reached its rear position.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:

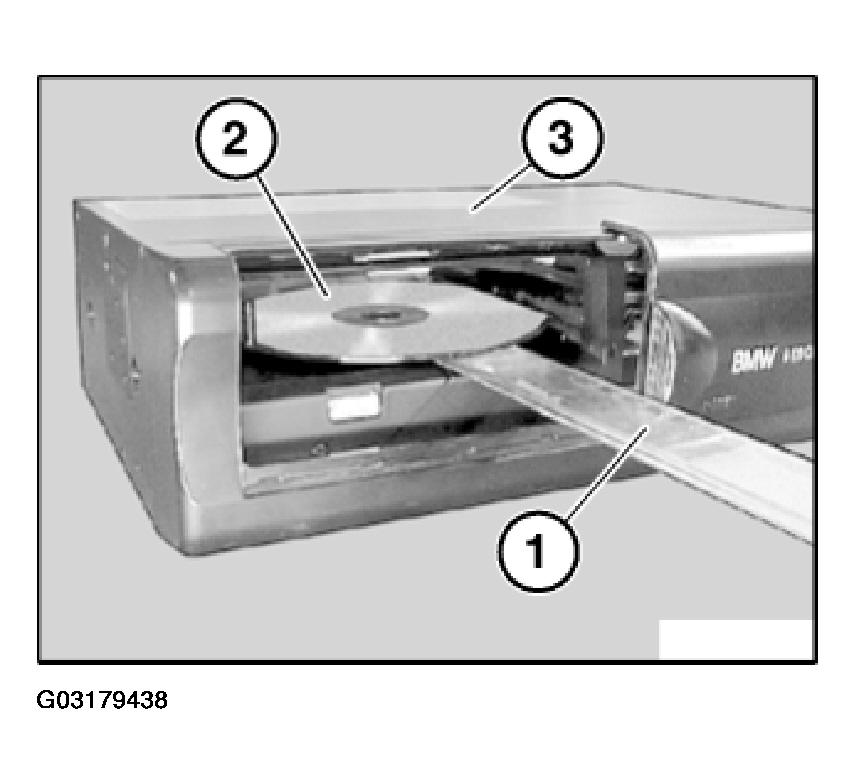

Hold eject lever in this position with plastic ruler (1) until CDs (2) are completely ejected.
Remove CDs (2) from CD changer (3).
Courtesy of BMW OF NORTH AMERICA, INC.
