65 21 020 Removing and installing/replacing rear antenna (Z3 Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing left luggage compartment trim, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT TRUNK WHEEL HOUSING TRIM (Z3 ROADSTER, M ROADSTER) .

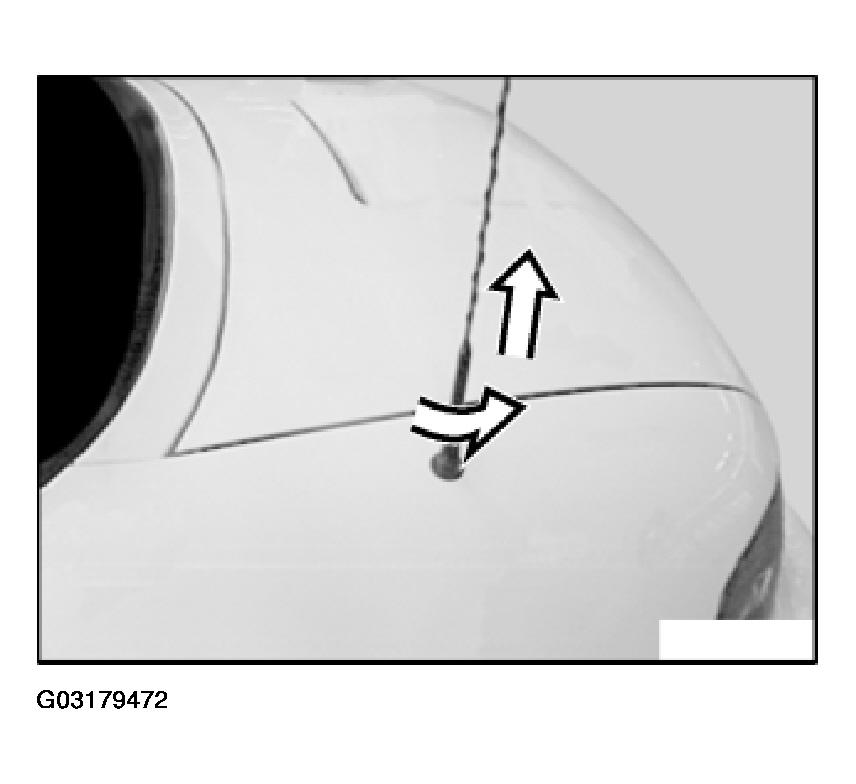

Unfasten antenna rod.

Fig 1: Removing Antenna Rod

Courtesy of BMW OF NORTH AMERICA, INC.

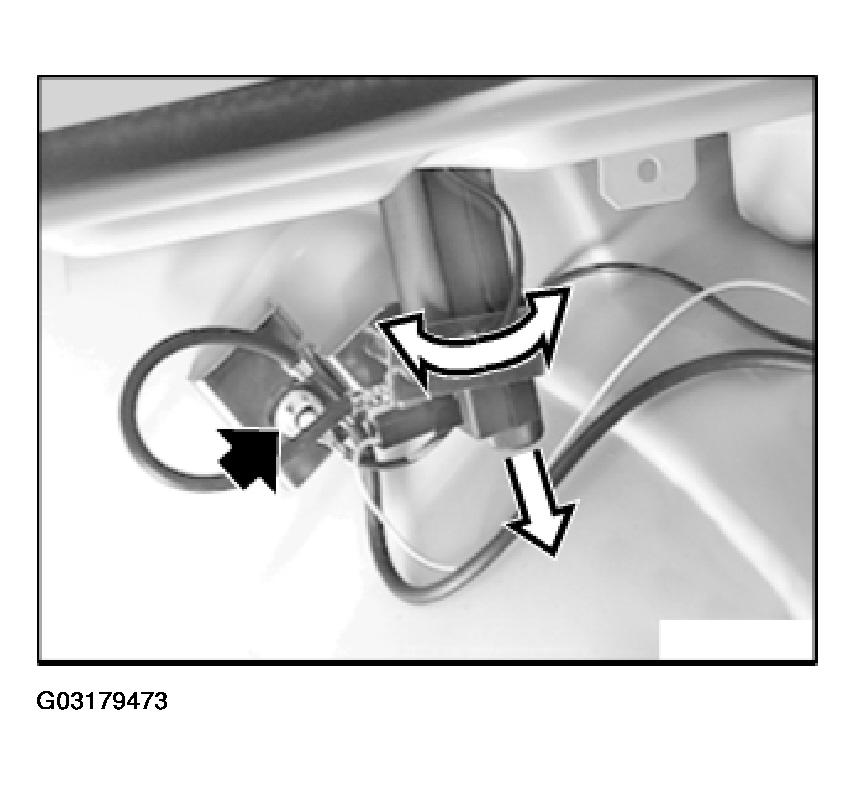

Unfasten nut and pull antenna downward out of rubber grommet by twisting back and forth.

Fig 2: Locating Nut

Courtesy of BMW OF NORTH AMERICA, INC.

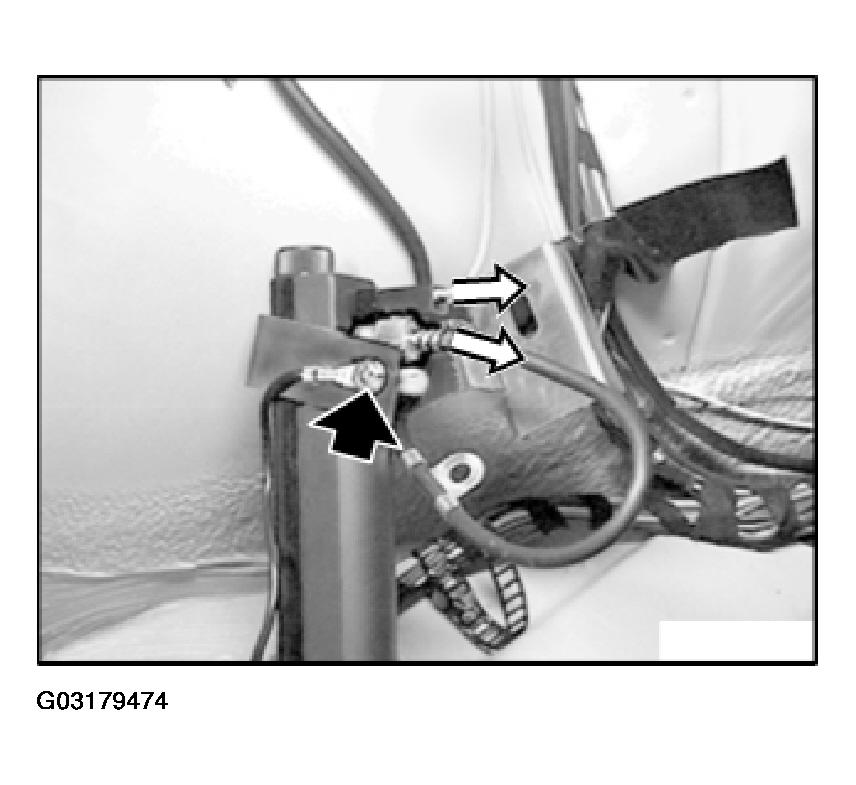

Loosen screws, pull off connector and remove antenna from bracket.

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.
