63 31 080 Removing and installing/replacing luggage compartment light (Z3,M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

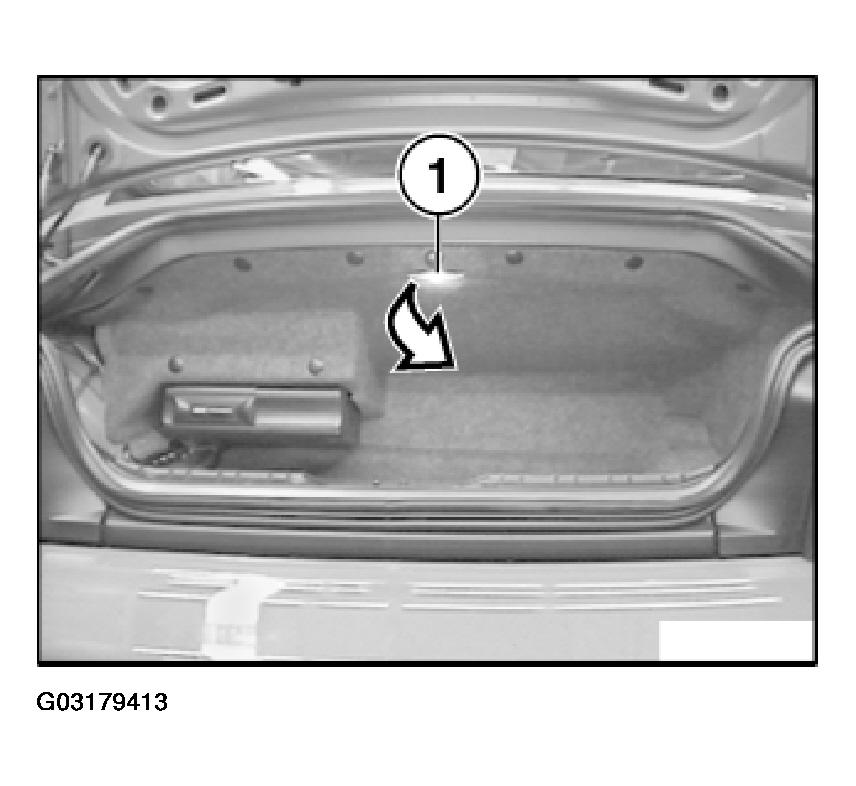

Pry out light at left.

Fig 1: Prying Out Light At Left

Courtesy of BMW OF NORTH AMERICA, INC.

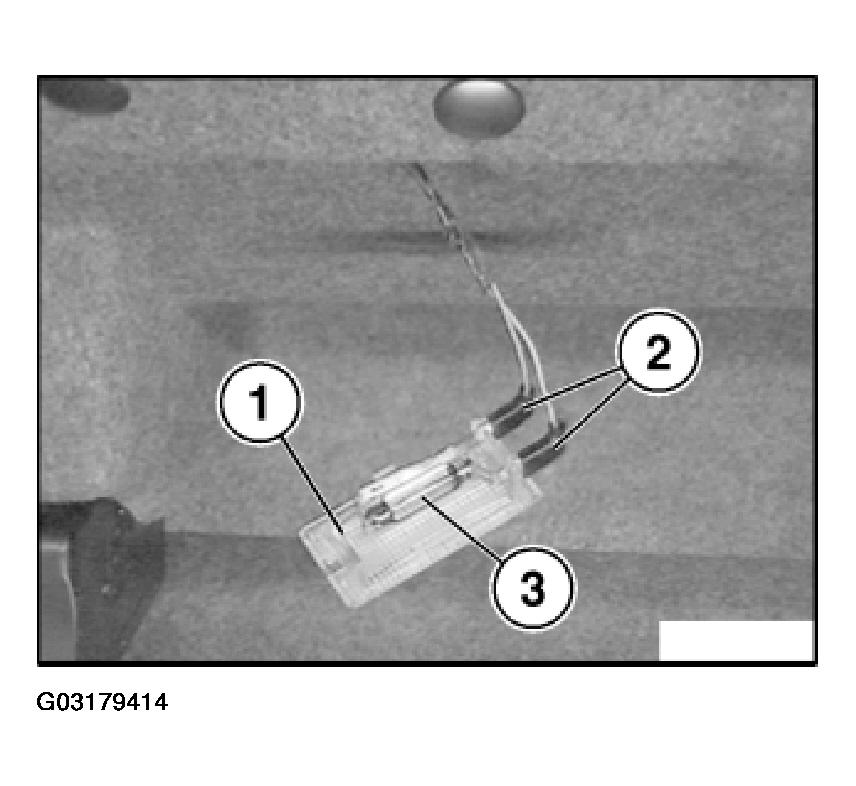

Pull off plug (2).

Fig 2: Pulling Off Plug

Courtesy of BMW OF NORTH AMERICA, INC.
