63 21 180 Removing and installing/replacing left or right rear light (Z3 Roadster)
WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.
From 04/99:

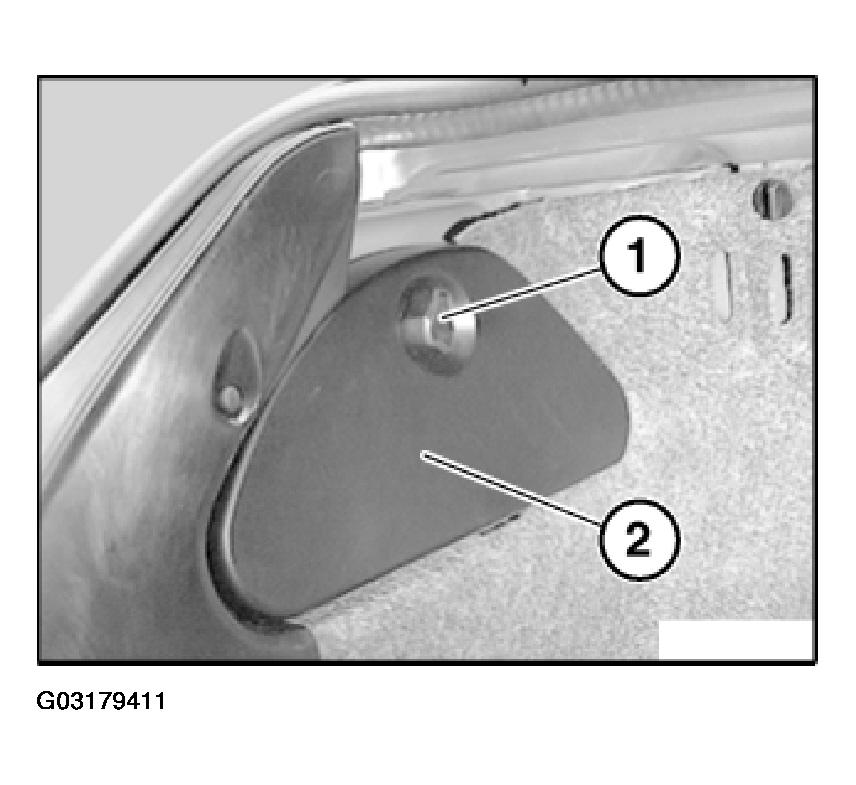

Release nut (1) and remove trim (2).
Fig 1: Removing Trim
Courtesy of BMW OF NORTH AMERICA, INC.

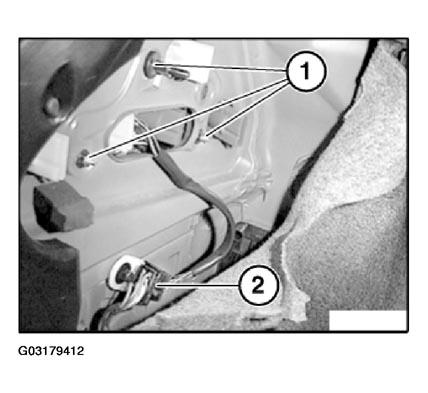

Unscrew nuts (1).
Disconnect plug connection (2) and pull out rear light.
Fig 2: Disconnecting Plug Connection And Pulling Out Rear Light
