63 99 451 Replacing light bulb for luggage compartment light (Z3 Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for replacing light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Lever out luggage compartment light (1) on left in direction of arrow.

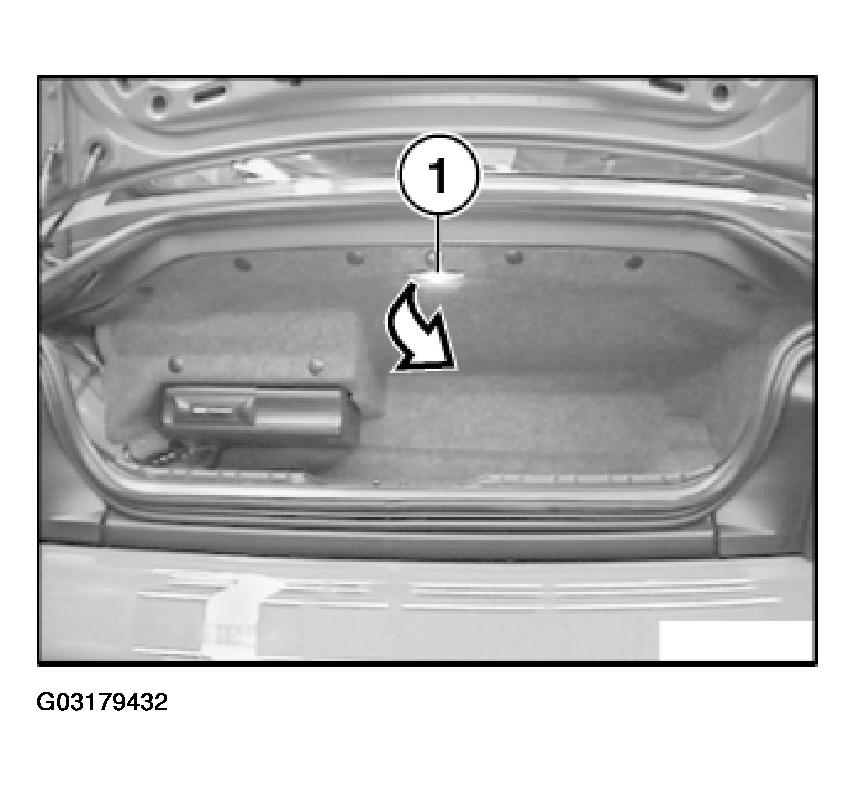

Fig 1: Levering Out Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach plug connections (2).

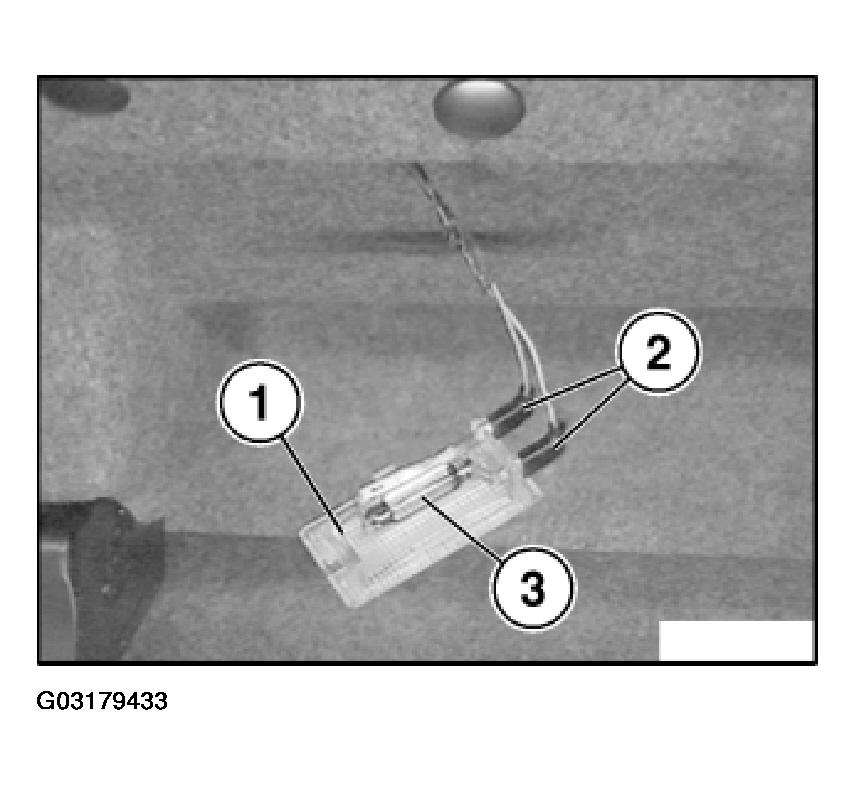

Fig 2: Detaching Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb (3) from luggage compartment light (1).

Installation:

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E36 .
