63 99 431 Replacing light bulb(s) for ceiling light (Z3 roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip lamp glass.

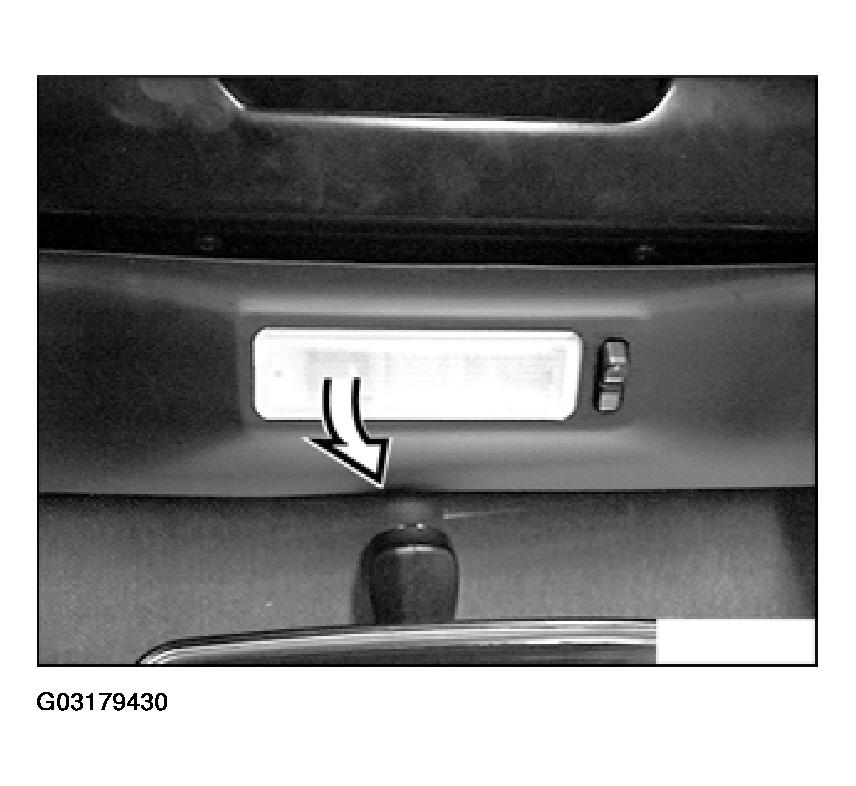

Fig 1: Unclipping Lamp Glass
G03179430Courtesy of BMW OF NORTH AMERICA, INC.

Remove light bulb.

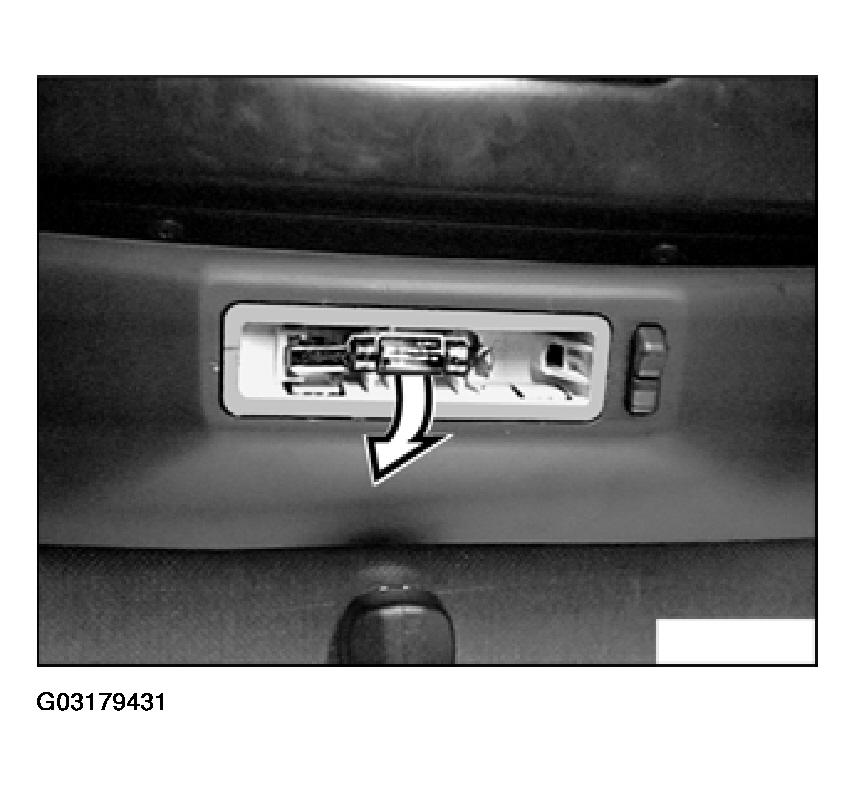

Fig 2: Removing Light Bulb
G03179431Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION: Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

Note type of bulb.
