63 10 004 Adjusting headlights

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Note test prerequisites for adjusting headlights, refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

Compact, Z3:

Adjust headlights by turning adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

Adjusting screw for vertical adjustment.
Adjusting screw for lateral adjustment.

NOTE: Adjusting screws are shown on a removed headlight.

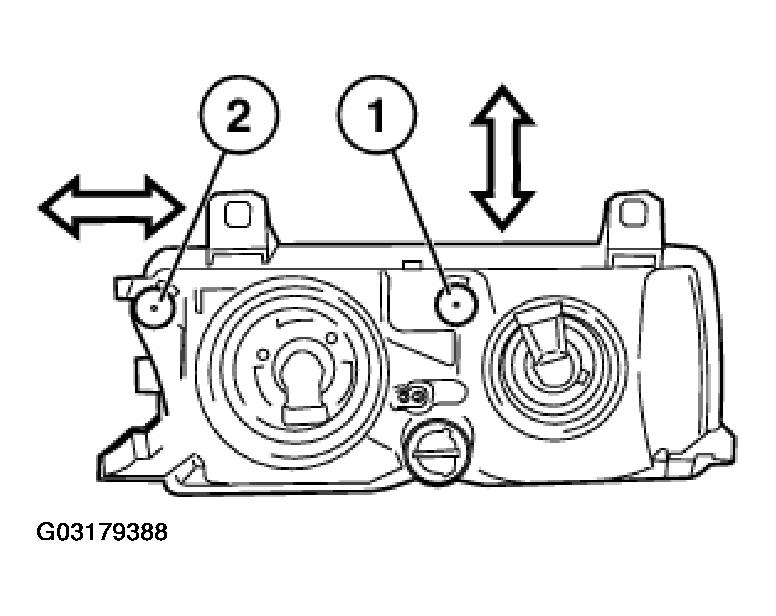

Fig 1: Identifying Adjusting Screws On Removed Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
