63 12 200 Removing and installing/replacing front left or right auxiliary turn indicator light (Z3 roadster, Z3 coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

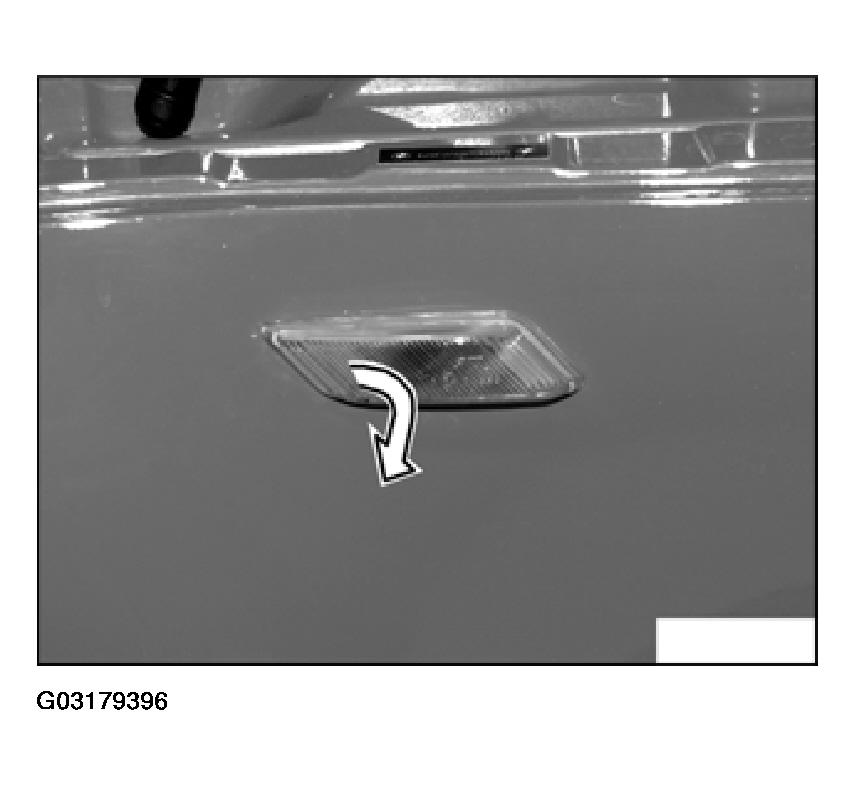

Press side lights backwards and press forwards to pry out.

Fig 1: Pressing Side Lights Backwards And Forwards To Pry Out
G03179396Courtesy of BMW OF NORTH AMERICA, INC.

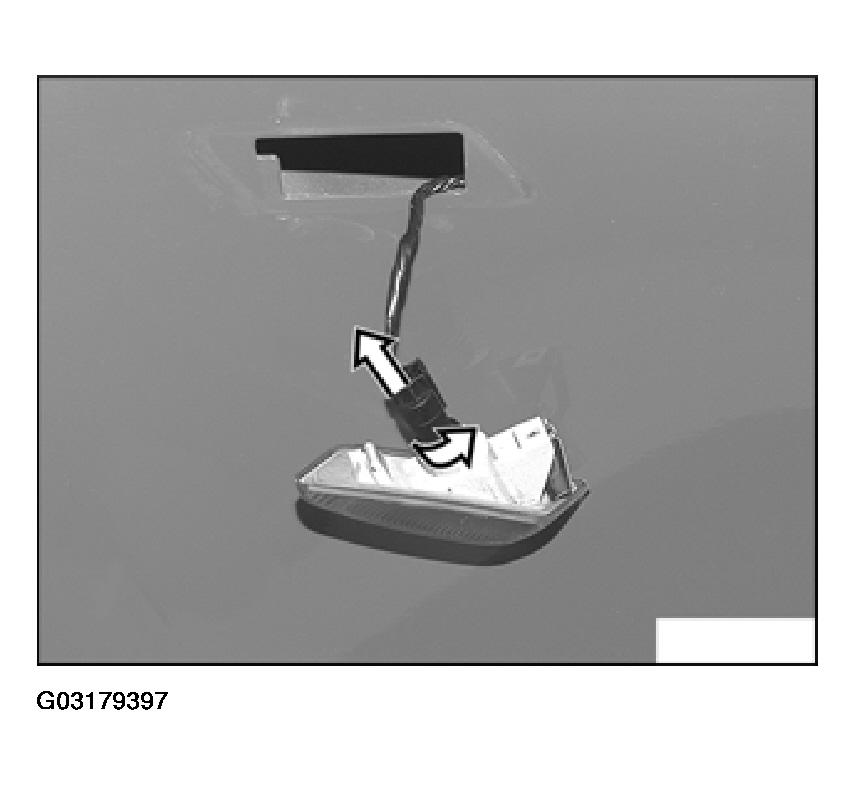

Twist lamp socket and lift out.

Fig 2: Twisting Lamp Socket And Lift Out
G03179397Courtesy of BMW OF NORTH AMERICA, INC.
