63 25 000 Removing and installing/replacing additional stop light

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

From 04/99:

Open trunk lid.

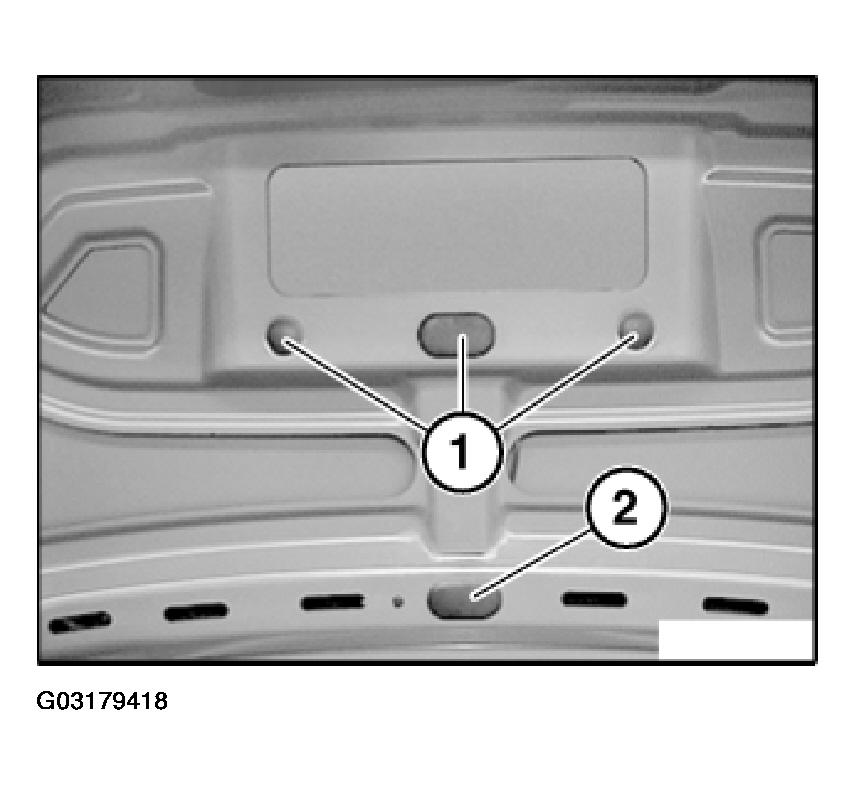

Remove covers (1) and release nuts.

Remove cover (2) and disconnect plug connection.

Pull out additional stop light towards top.

Fig 1: Pulling Out Additional Stop Lights Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

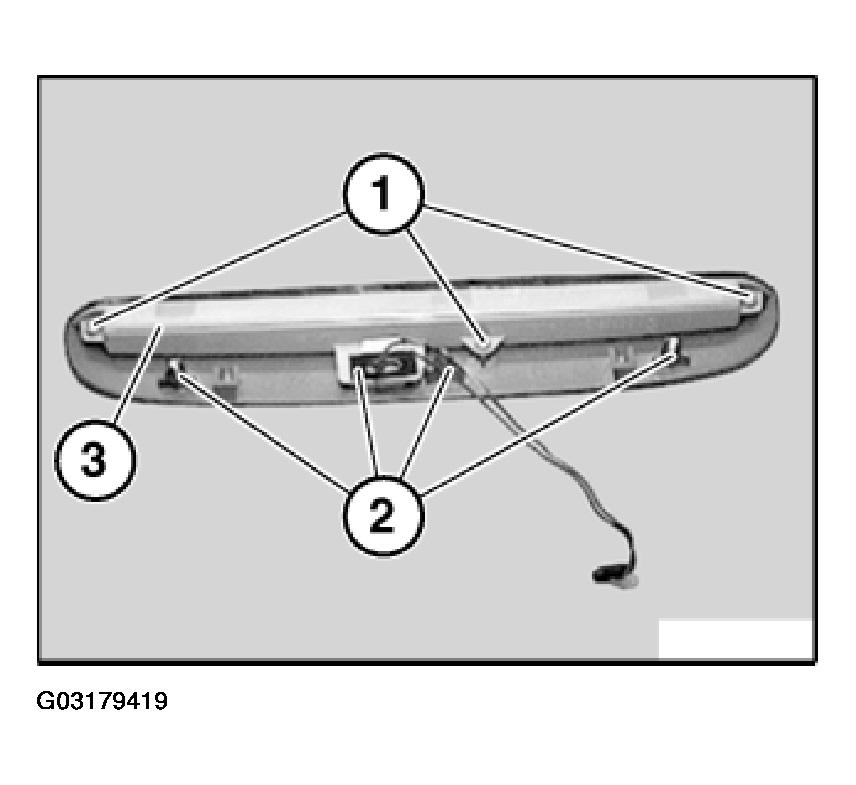

Release screws (1) and remove brake light (3).

Fig 2: Releasing Screws Of Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace seals (2).
