62 99 090 Replacing bulbs in instrument carrier

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING ENTIRE INSTRUMENT CARRIER (Z3 ROADSTER, Z3 COUPE) .

Fig 1: Removing Complete Instrument Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

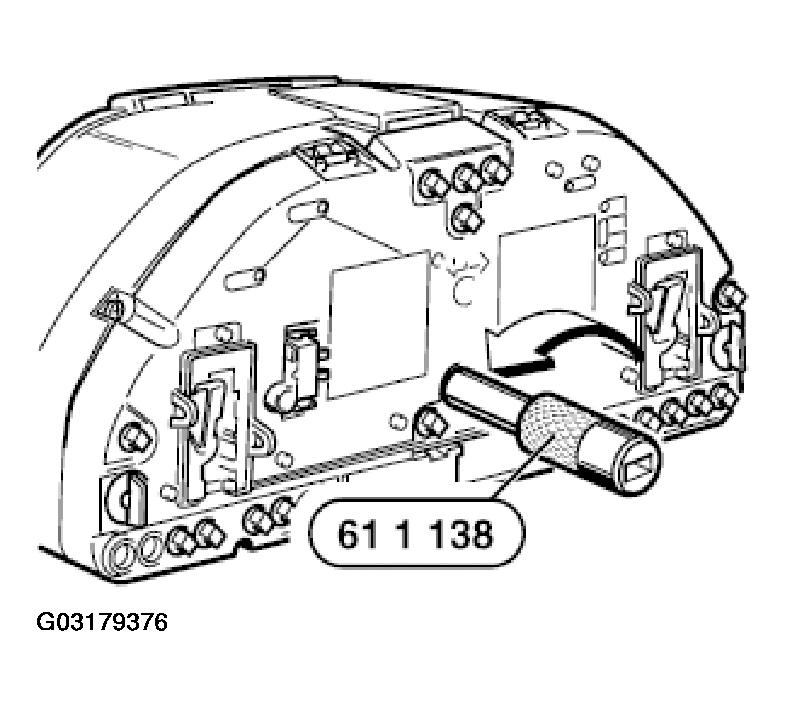

Turn bulb holder of faulty instrument lighting with special tool 61 1 138 in direction of arrow and remove. Pull bulb out of holder.

Fig 2: Identifying Instrument Carrier Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure bulb brightness is correct.

Bulb chamber could melt in event of excessive bulb power.
