54 21 000 Fitting hard top (with settings at fastening, B-pillar)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top.

Open side windows.

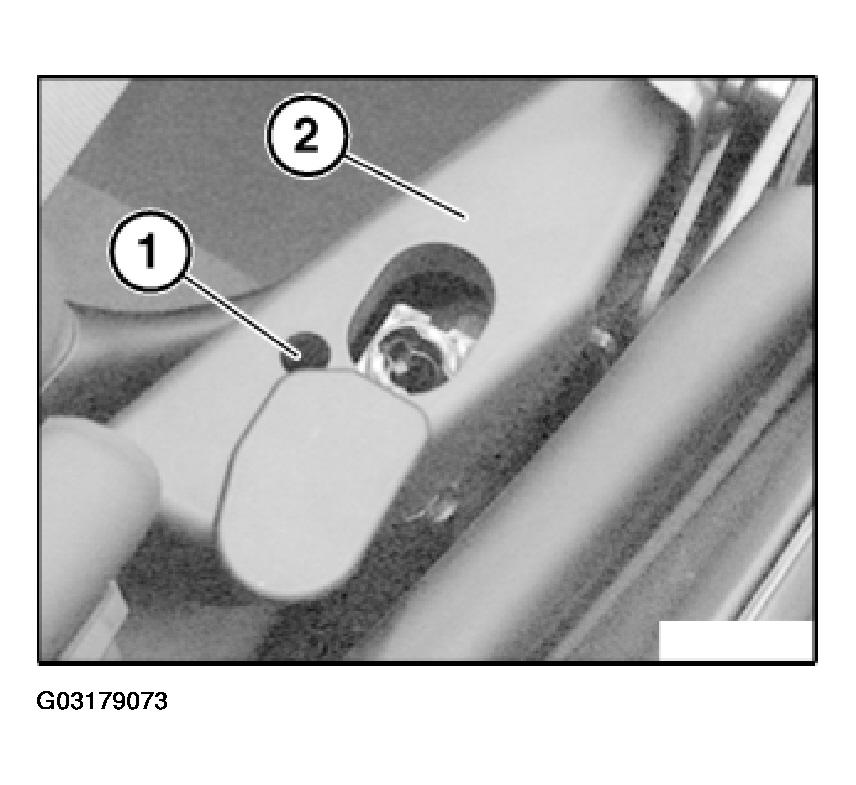

Open cap (1) on cover at top of B-pillar (2).

3 Hard top locating point.

Fig 1: Opening Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Remove cover at top of B-pillar (2).

Fit hard top and lock.

Fig 2: Removing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

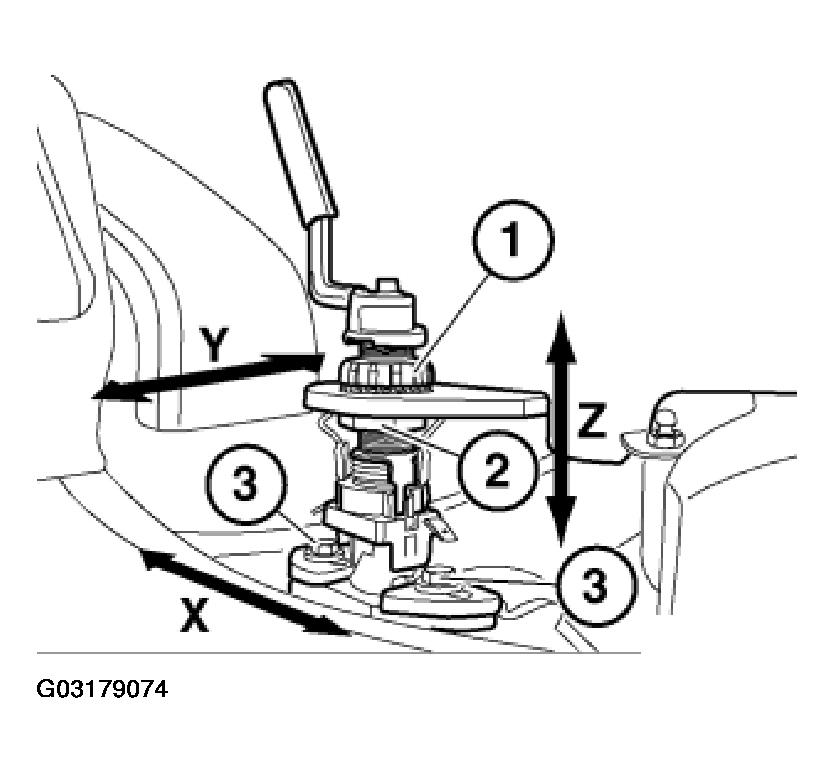

Release slotted nut (1). Adjust hard top in direction "Y" (transverse to vehicle axis) symmetrically on left and right.

Adjust vertical clearance "Z" between hard top and body (0.2 mm all round) with nut (2).

Release screws (3). Adjust hard top in direction "X" (vehicle longitudinal axis).

Fig 3: Releasing Slotted Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

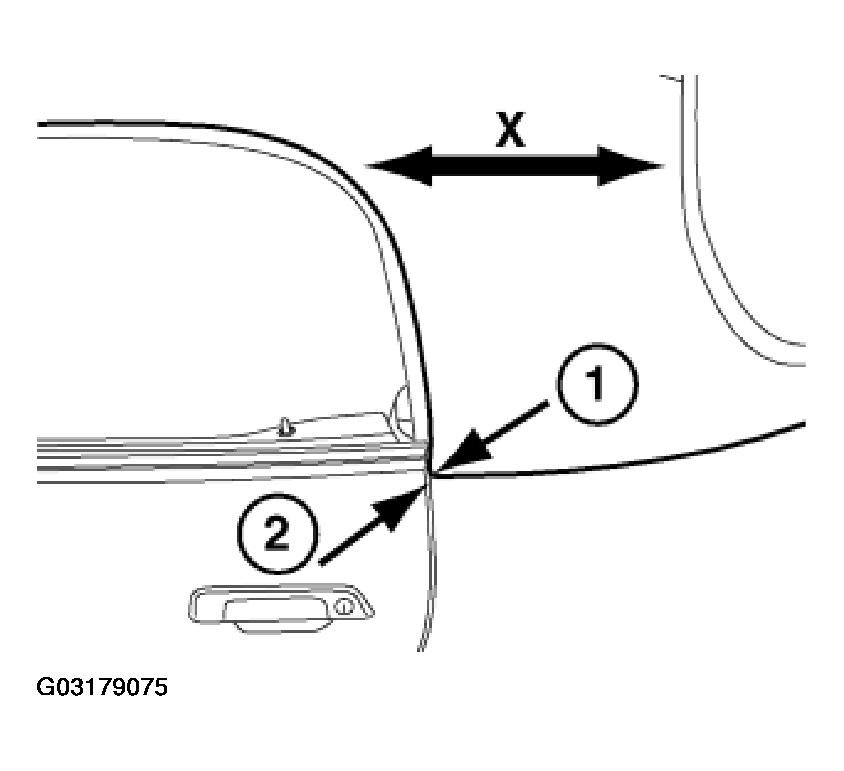

During movement in direction "X", edge of hard top (1) must be flush with edge of side panel at rear (2).

Fig 4: Locating Edge Of Hard Top And Edge Of Side Panel At Rear

Courtesy of BMW OF NORTH AMERICA, INC.
