54 31 030 Removing and installing/replacing roof liner in convertible top (Z3 Roadster)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top.

Unfasten screws (1).

Remove securing rail (2) from plastic retainer.

Installation:

Edges of securing rail (2) must be located under convertible top seal (window guide).

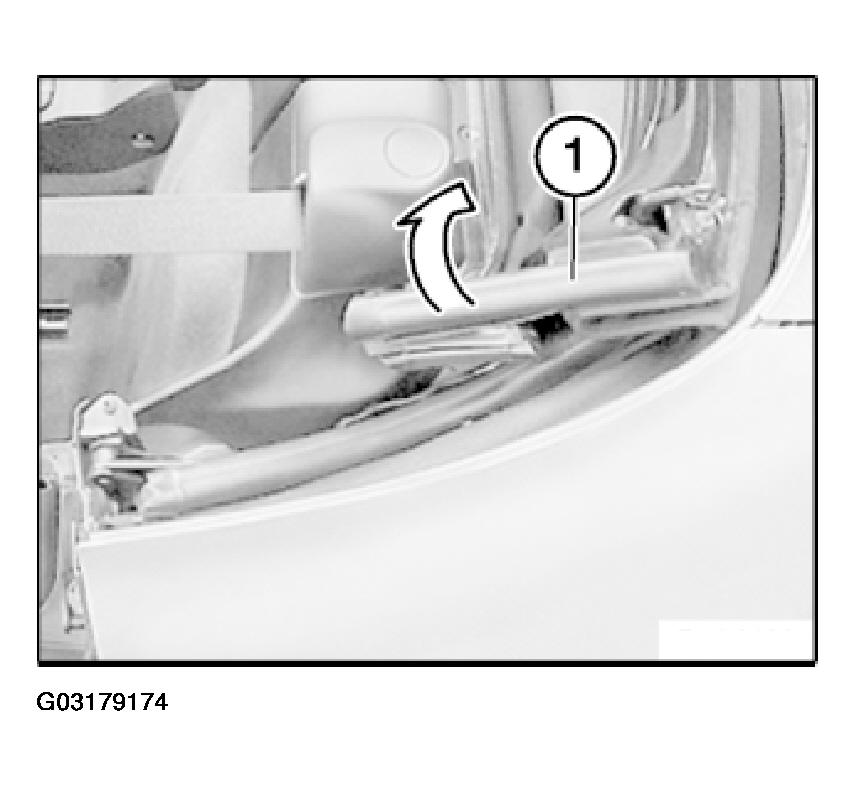

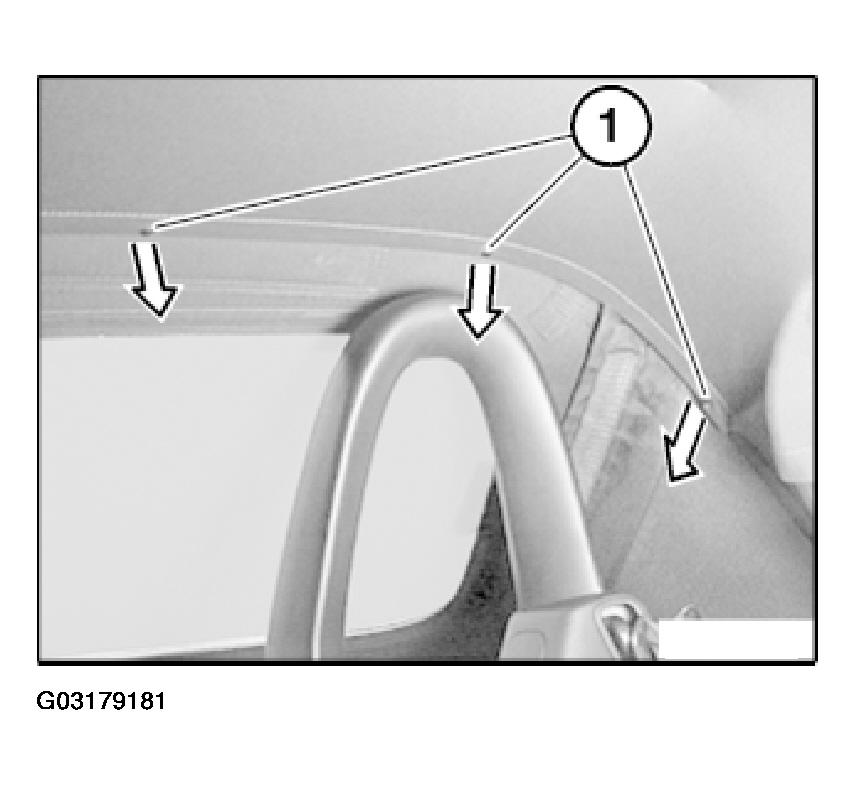

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull convertible top seal (1) out of securing rail.

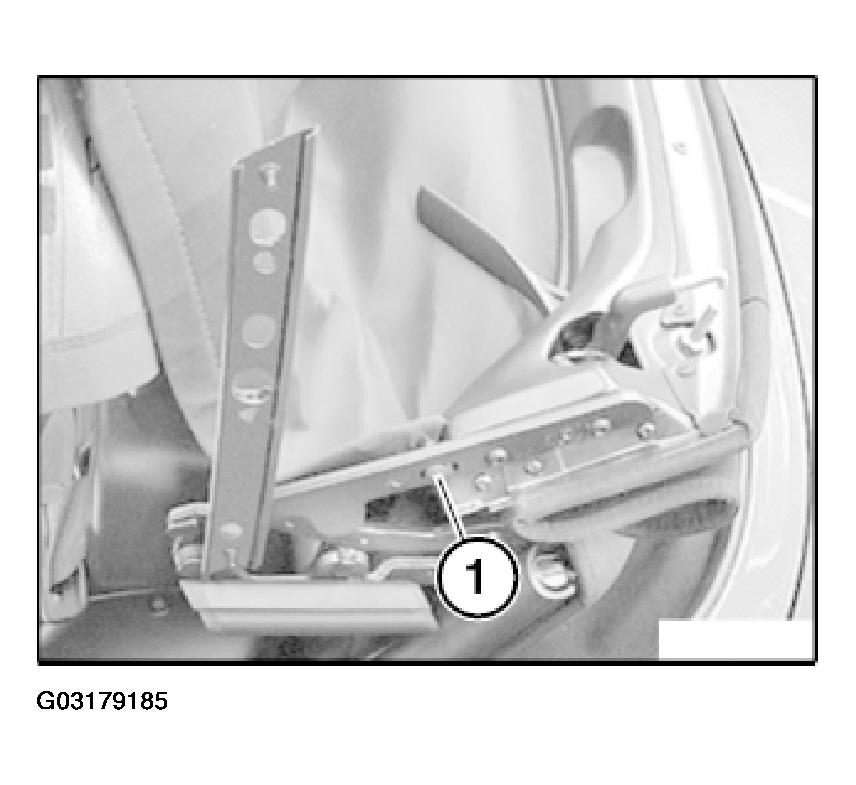

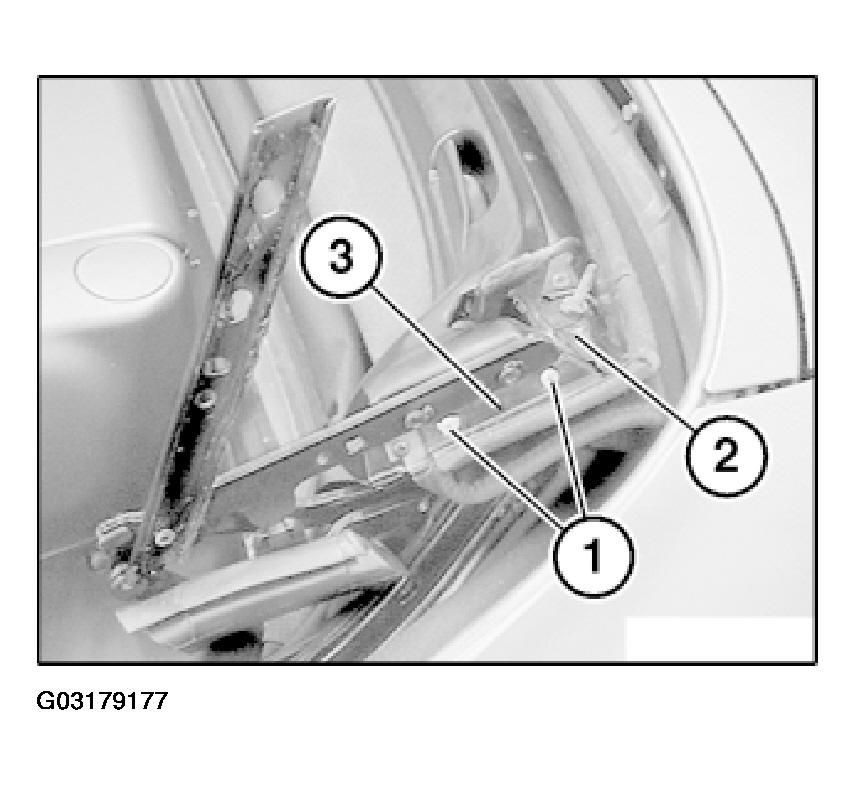

Fig 2: Pulling Convertible Top Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before releasing screws (1), make a note of the number of shims (2) (if fitted) since they must be reinstalled in the same positions (wind noises, leaks).

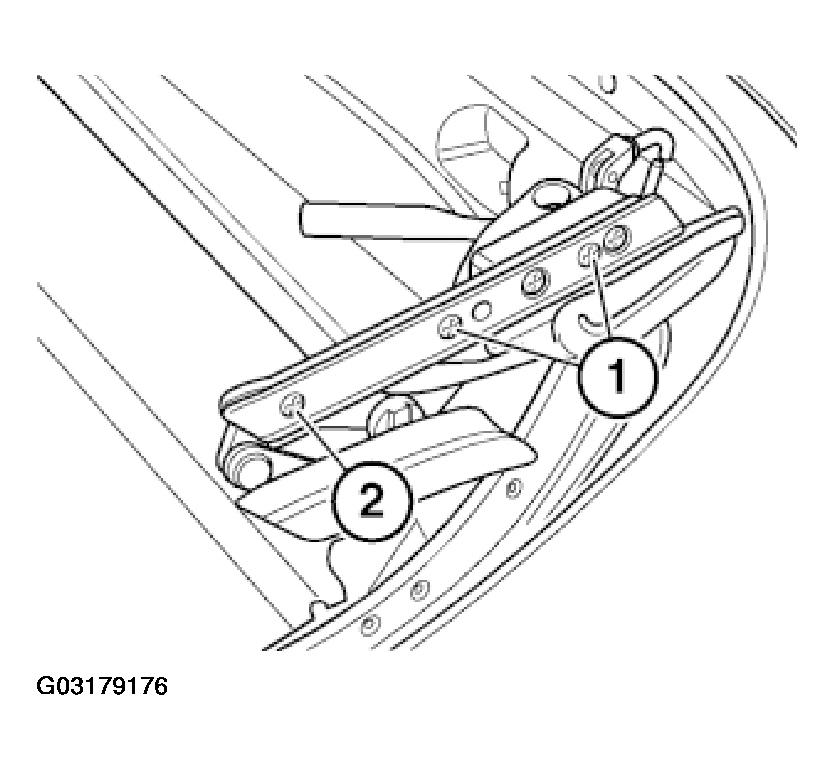

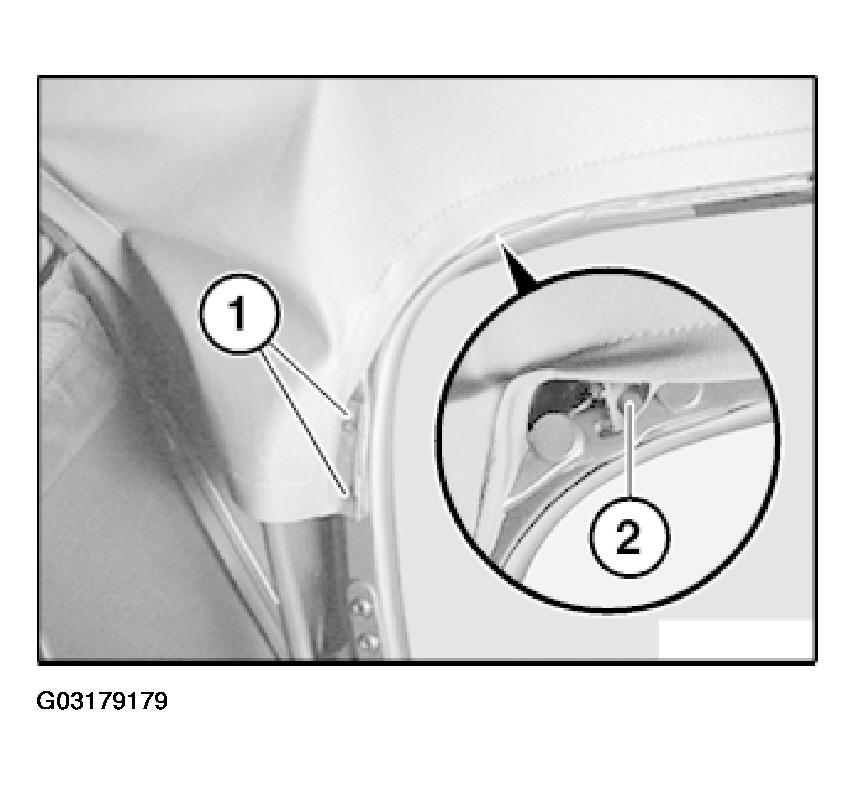

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1 and 2). Remove securing rail of convertible top seal.

Installation:

Mark screw positions so that the securing rail can be installed in the same position.

NOTE: Do not release the screw for the closure base plate, otherwise the setting will be altered.

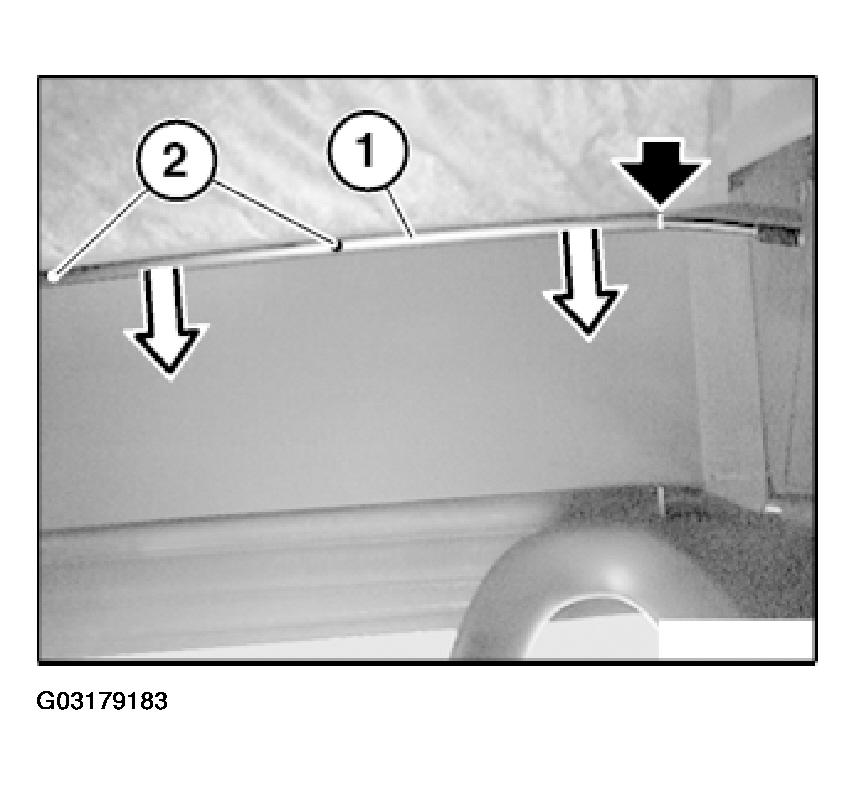

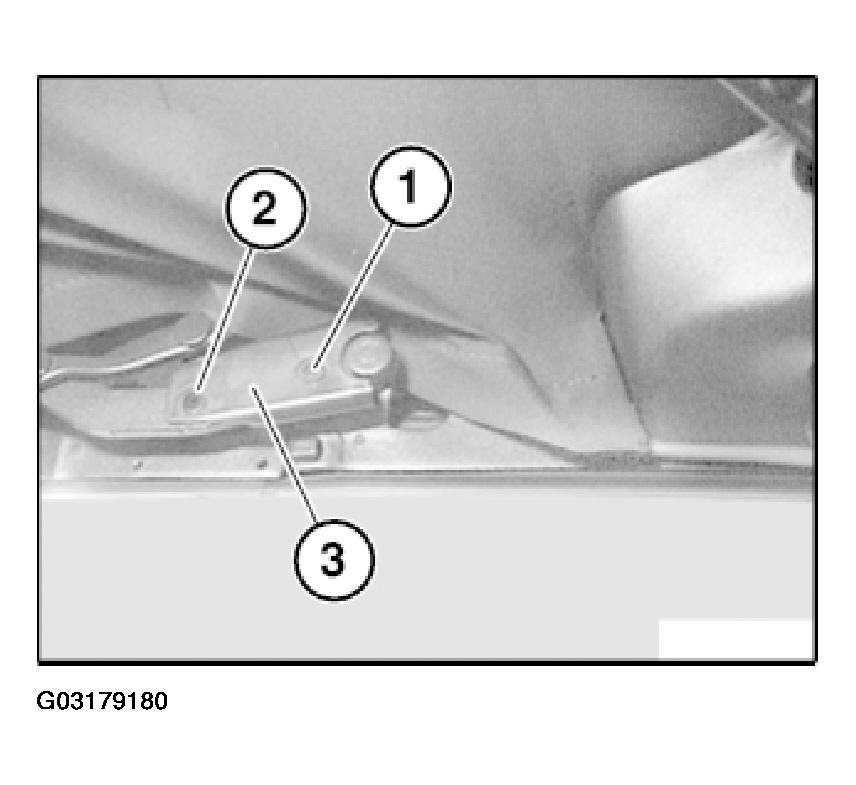

Fig 4: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on plastic retainer (2) and fold out lug (3).

NOTE: Securing rail is disassembled.

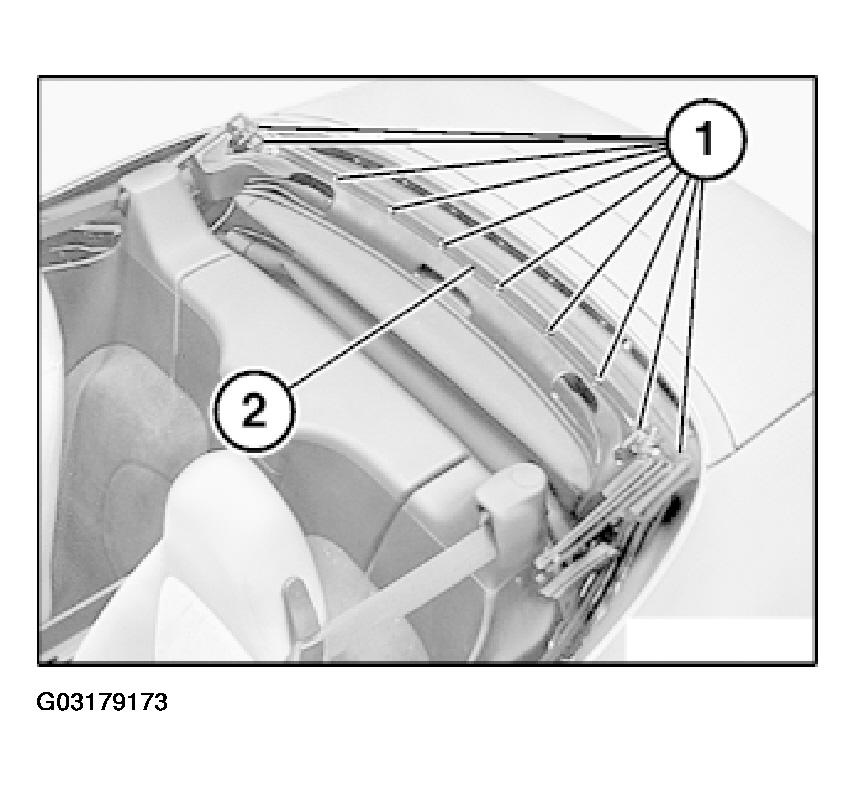

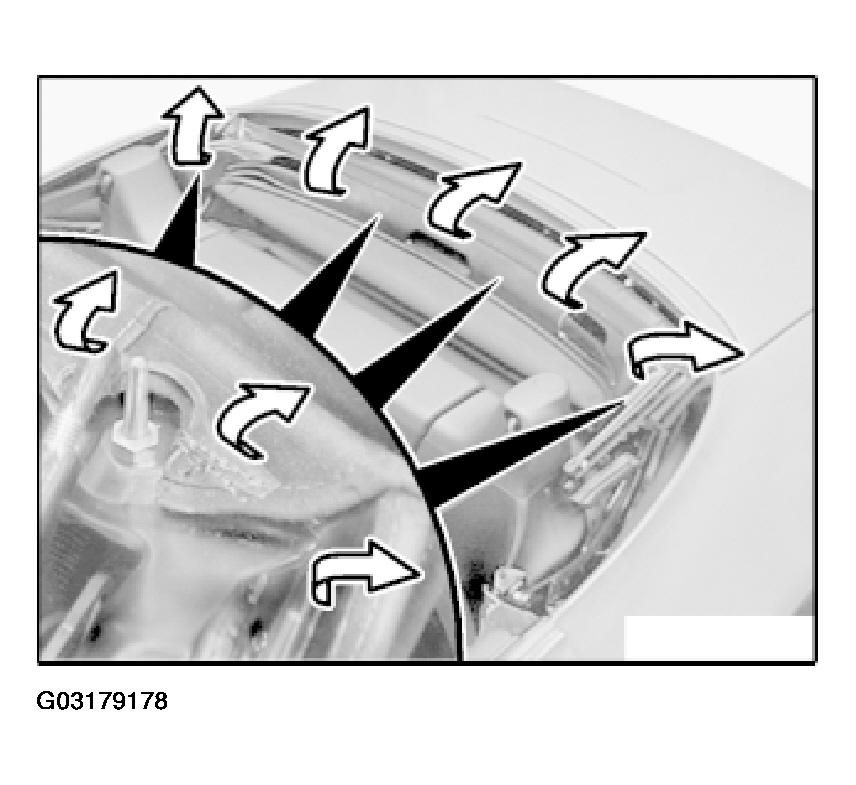

Fig 5: Removing Screws On Plastic Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover from adhesive fastening on plastic retainer.

Raise convertible top out of convertible top compartment.

Installation:

Stick on cover with double-sided adhesive tape, e.g. Tesafix 4965, to plastic retainer at front.

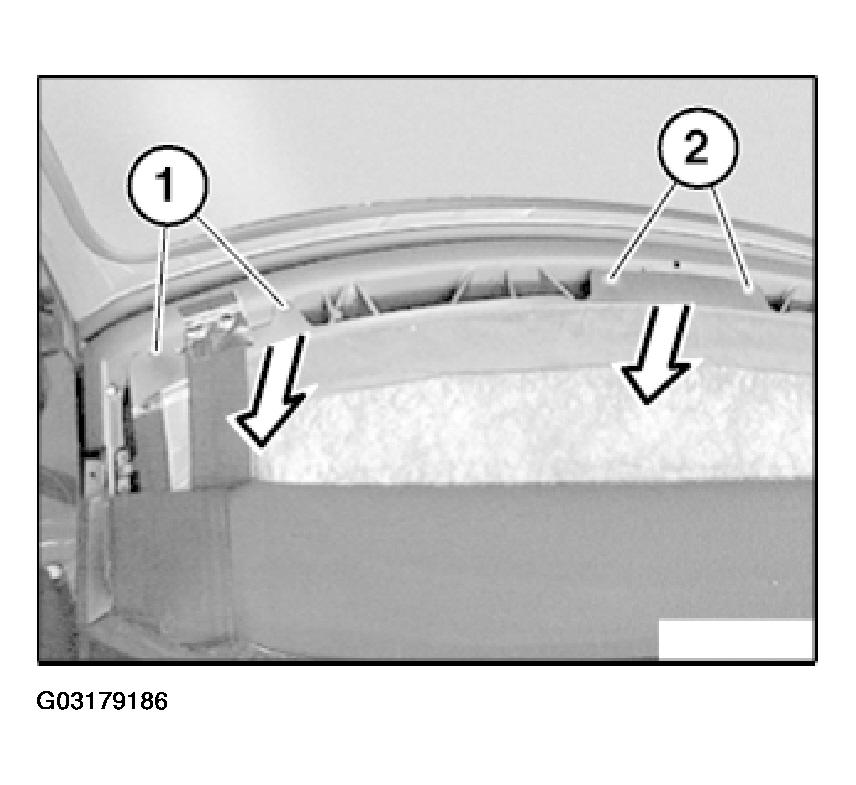

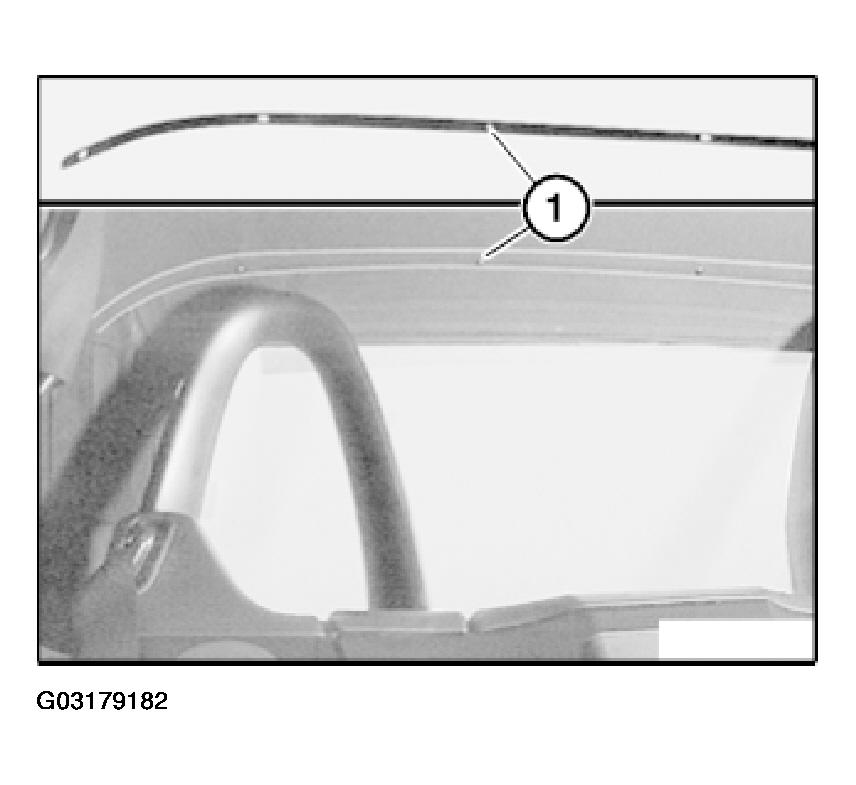

Fig 6: Raising Convertible Top

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (1) on B-pillar mounting.

Drill out rubber band mounting (2).

NOTE: Drill carefully so as not to damage convertible top cover.

Installation:

Only steel rivets (1) may be used.

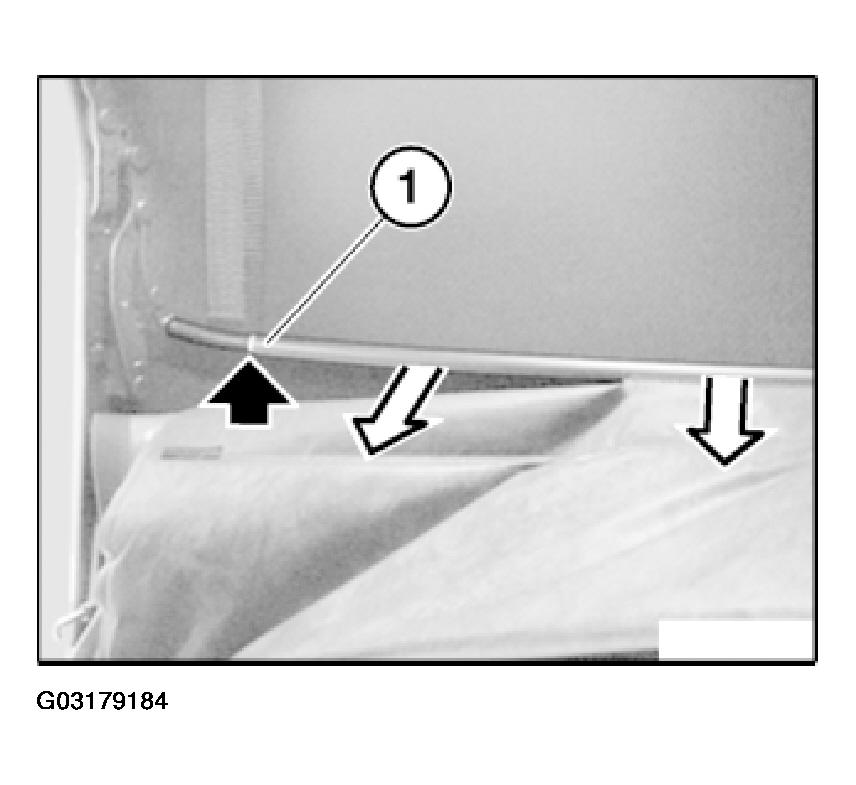

Fig 7: Drilling Out Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (1) and (2) from plastic deflector (3) on left/right.

Installation:

Rivet down spring part of mount on front rivet (1) under plastic deflector.

Only steel rivets (1 + 2) may be used.

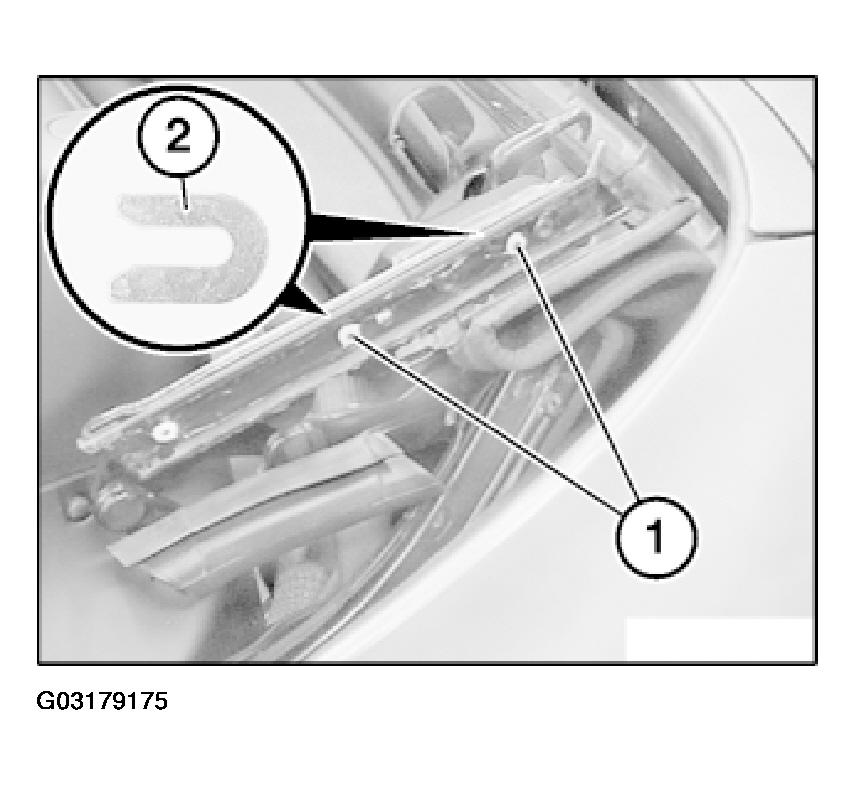

Fig 8: Drilling Out Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) on rear retainer (convertible top frame).

NOTE: Roof liner must not be damaged.

Fig 9: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace expansion rivets.

Insert expansion rivet for locating hole (1) first.

Locating hole (1) = round hole in wire bracket = 3rd hole from right

Fig 10: Locating Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Mark side position of shell crossrail (1).

Drill out any locating rivets if necessary.

Unclip shell crossrail.

Installation:

Align shell crossrail on marking so that roof liner does not have any folds.

Only steel rivets may be used.

Fig 11: Marking Side Position Of Shell Crossrail

Courtesy of BMW OF NORTH AMERICA, INC.

Mark side position of shell crossrail (1), then unclip.

Installation:

Align shell crossrail on marking so that roof liner does not have any folds.

Fig 12: Marking Side Position Of Shell Crossrail

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) of spacer on left/right.

NOTE: A mount can also be riveted down instead of a spacer.

Fig 13: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (1) on cowl on left/right.

Release screws (2) on center of cowl.

Fig 14: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out roof liner towards rear.

Installation:

Only aluminum rivets (1) may be used.
