Cover rear side walls and trunk lid (risk of damage), and use 10 mm-socket

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove tackstrip:

Open convertible top.

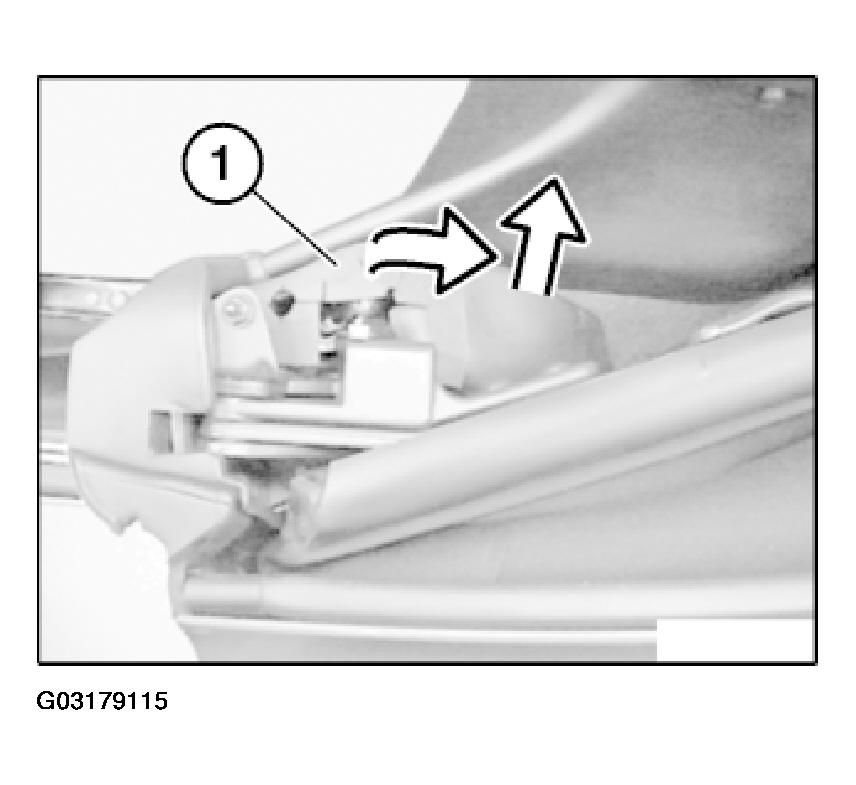

Lift right trim piece (1) out of the main pivot threading toward the rear and pull out upward.

Fig 1: Lifting Right Trim Piece Out Of Main Pivot Threading

Courtesy of BMW OF NORTH AMERICA, INC.

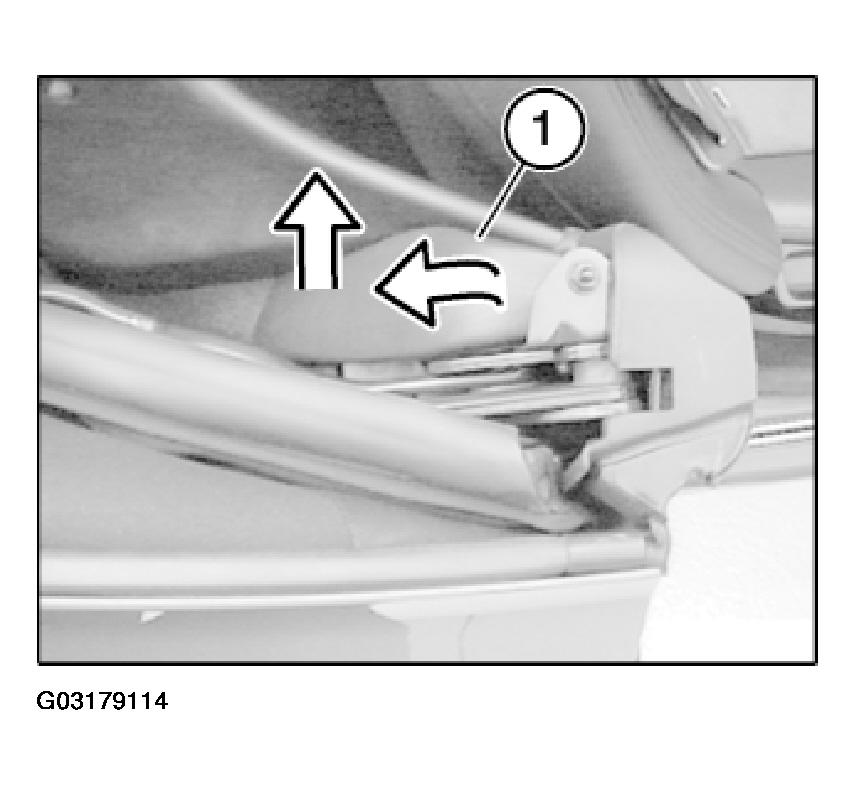

Lift right trim piece (1) out of the main bearing threading toward the rear and pull out upward.

Fig 2: Lifting Right Trim Piece Out Of Main Bearing Threading

Courtesy of BMW OF NORTH AMERICA, INC.

Close convertible top (do not lock).

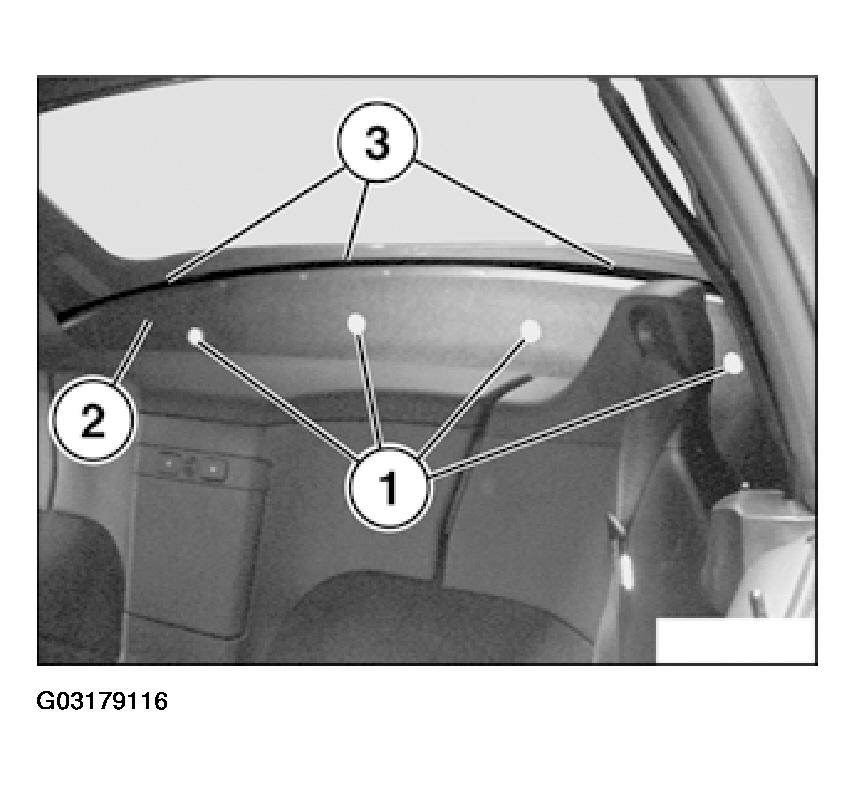

Unfasten clips (1) and pull inner trim of convertible top compartment (2) downwards out of groove in tackstrip (3).

Fig 3: Unfastening Clips

Courtesy of BMW OF NORTH AMERICA, INC.

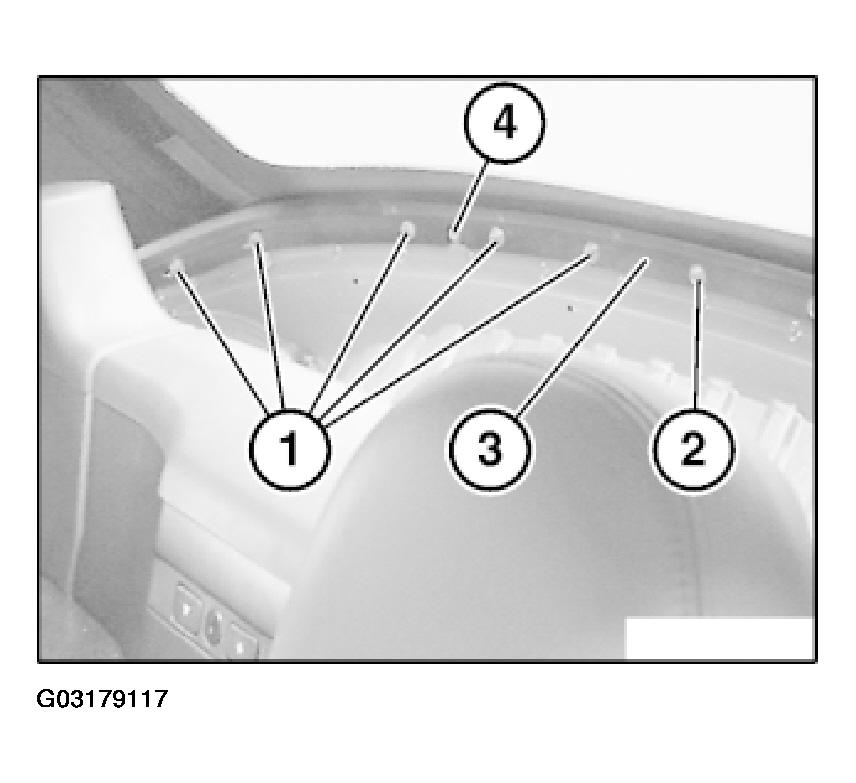

Unfasten left/right screws (1) and center (2) of tackstrip (3).

NOTE: Do not unfasten screw (4).

Fig 4: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

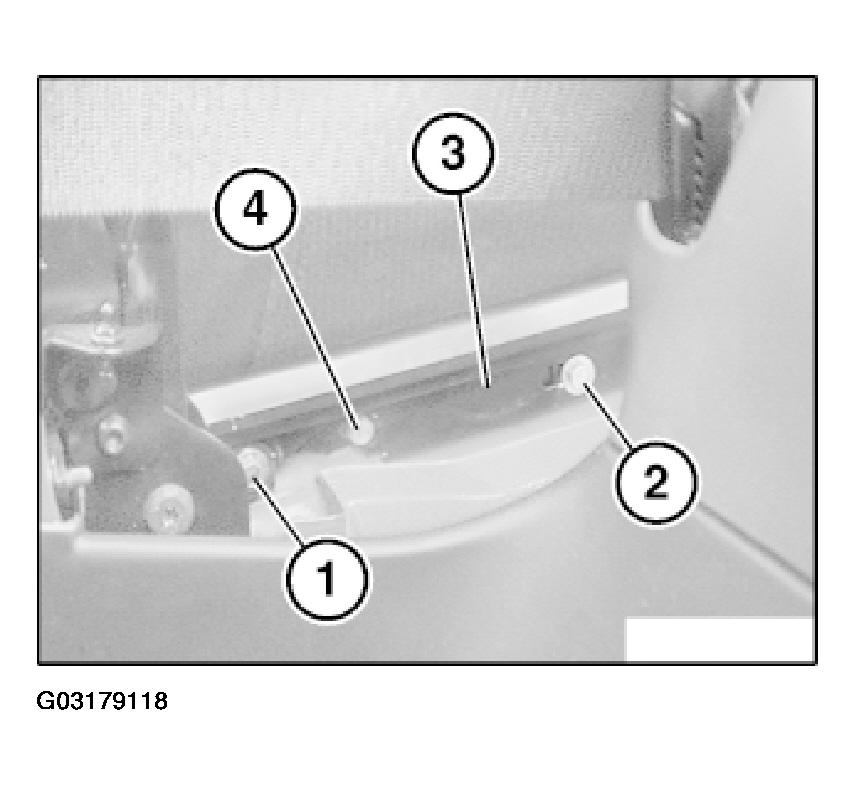

Unfasten screws (1) and (2) on left/right of tackstrip (3) in convertible top compartment.

NOTE: Do not unfasten left/right screw (4). If necessary, note number of shims on left/right screw (1) and fit back in same location during installation.

Fig 5: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing tackstrip" ends here. Follow installation instructions, refer to "Installing tackstrip".

Removing Complete Convertible Top:

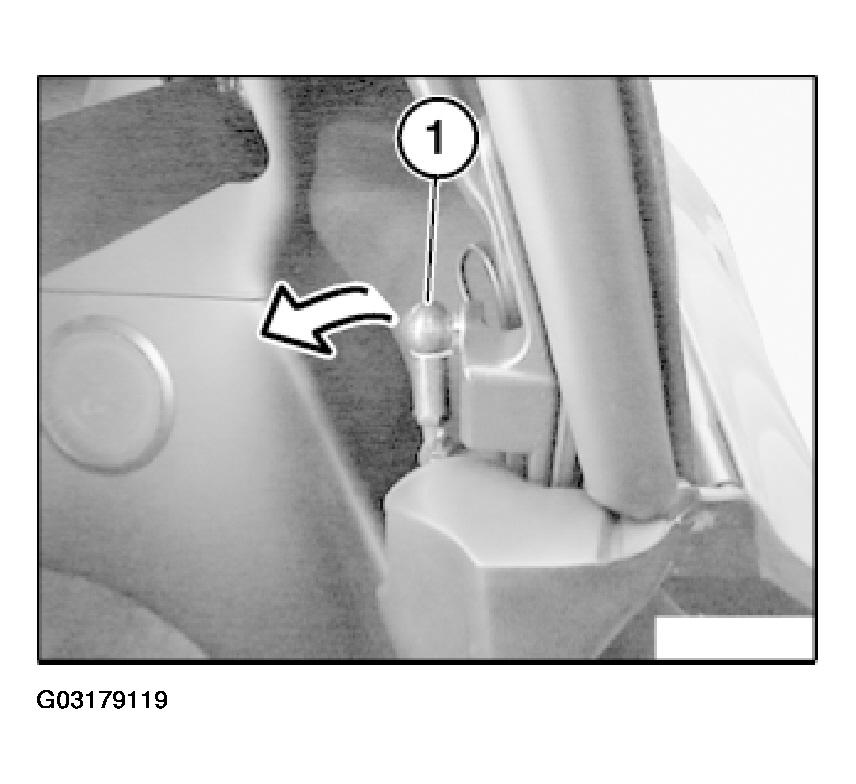

Pry out gas spring strut inward at top with special tool 00 9 319.

Fig 6: Prying Out Gas Spring Strut Inward At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Version with electrohydraulic/semi-automatic convertible top operation only:

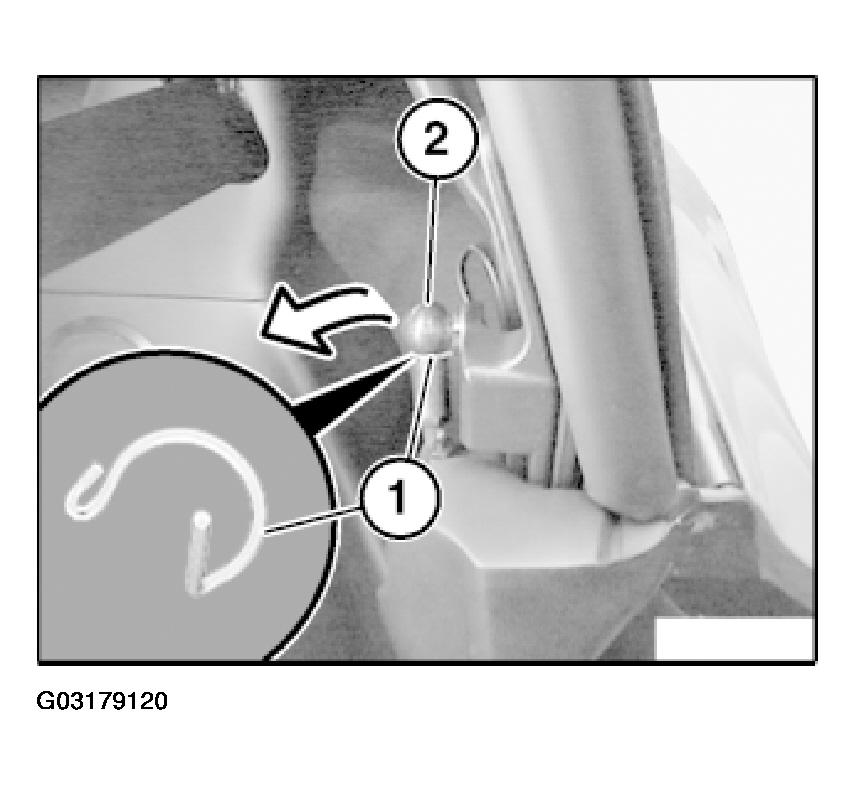

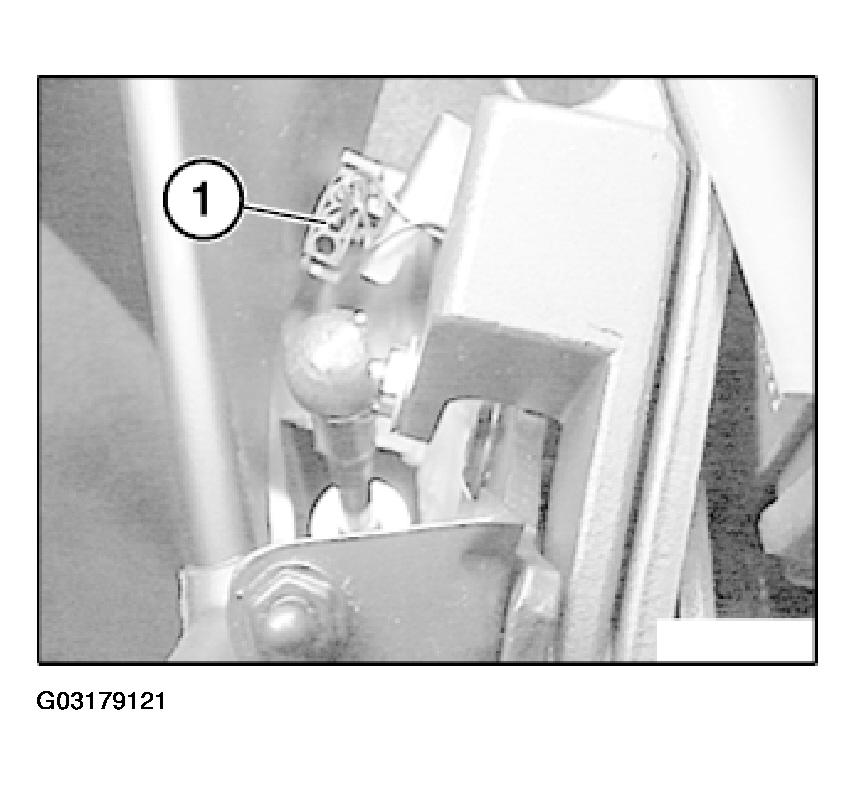

Release retaining clip (1) and pull off downward.

Pry out hydraulic cylinder (2) inward with special tool 00 9 319.

Fig 7: Prying Out Hydraulic Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Stow convertible top in its compartment.

Version with electrohydraulic/semi-automatic convertible top operation only:

Unlock connector (1) and remove.

Fig 8: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

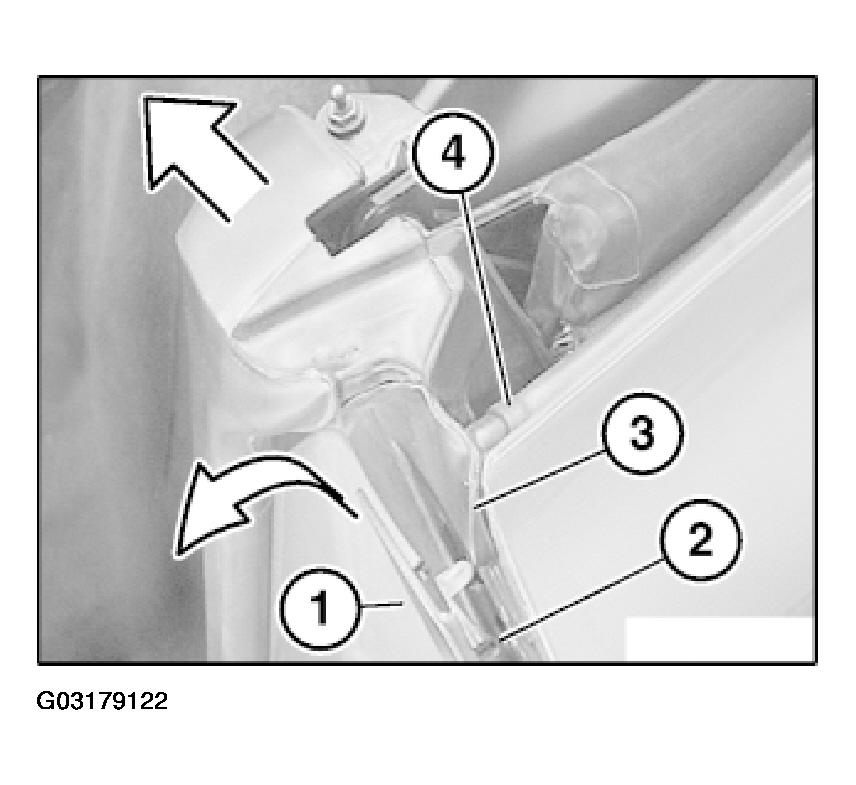

Unclip finisher strip (1) until guide (2) leaves the mucket (3) and remove the mucket.

Installation:

Insert mucket (3) in the convertible top compartment seal (4) (leaks).

Fig 9: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

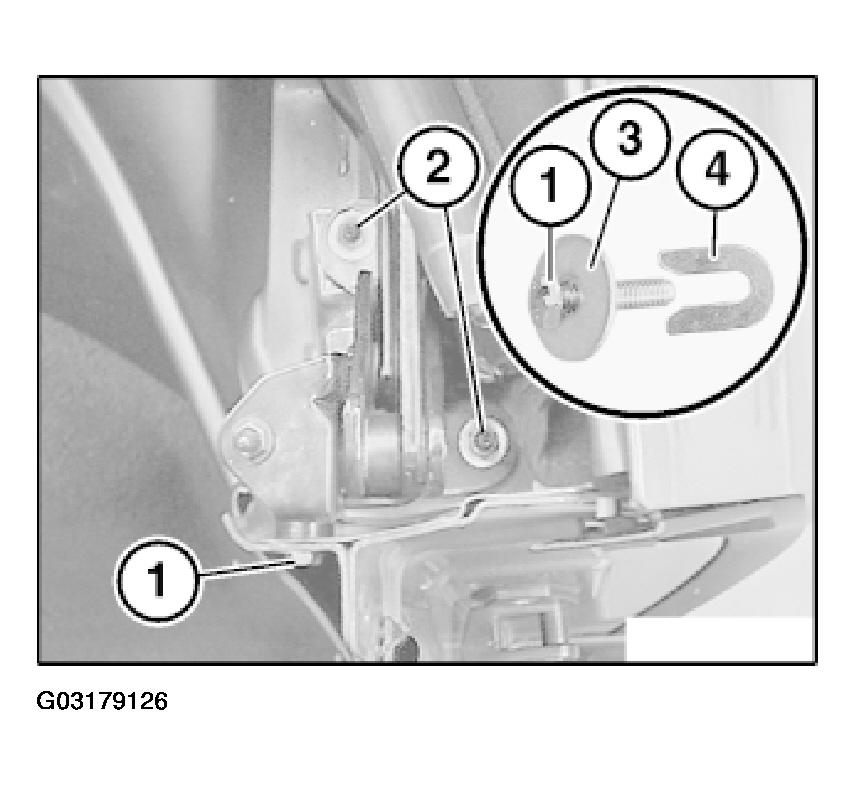

Unfasten left/right screw (1) and nut (2).

Remove screw (1) with washer (3) and shim (4).

Fig 10: Removing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Note down number of shims (4).

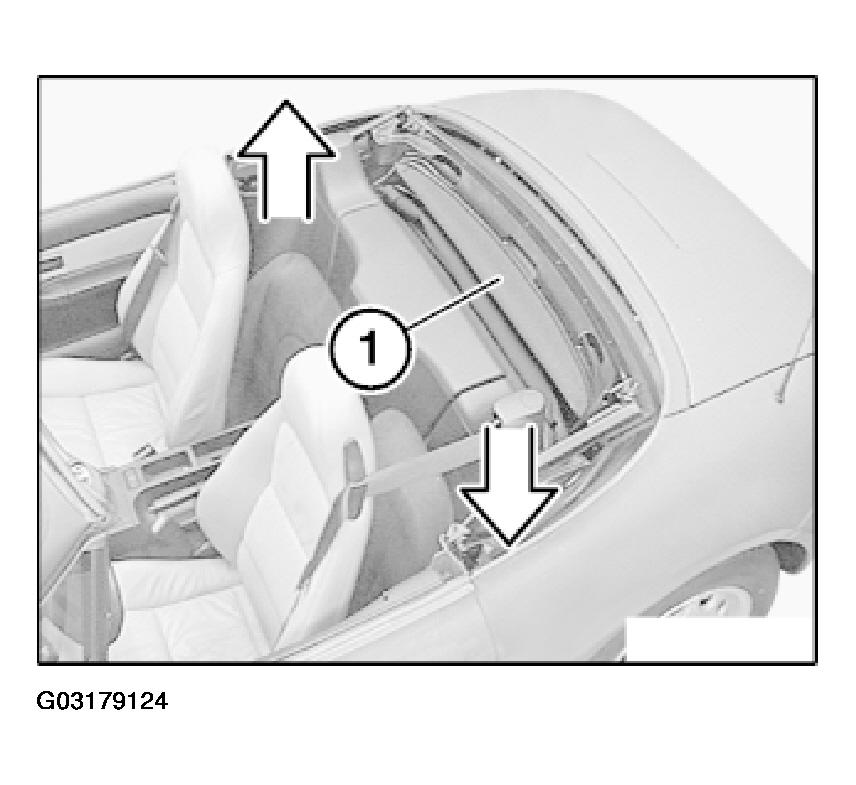

Press down convertible top (1) on one side of main bearing with second person lifting opposite side at the same time, thus lifting convertible top out of its compartment.

Fig 11: Pressing Down Convertible Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installing Complete Convertible Top:

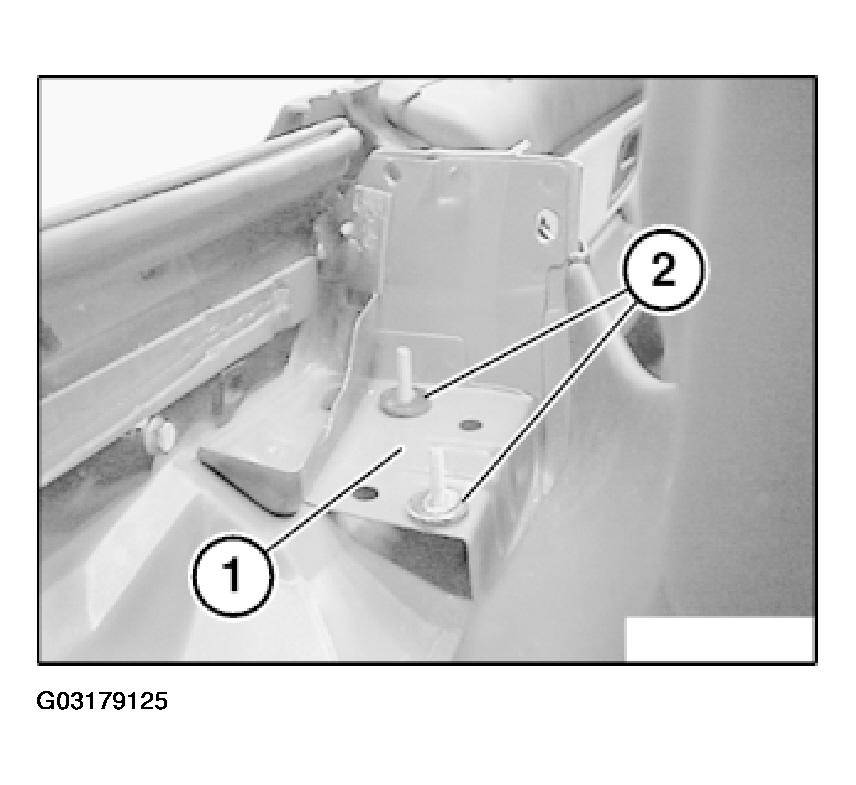

Four shims (2) (each 1 mm) should be fitted to left/right of attachment studs (1).

Fig 12: Identifying Shims

Courtesy of BMW OF NORTH AMERICA, INC.

Install convertible top.

Install left/right nuts (2) on main pivot bracket, tighten down then loosen slightly again.

Insert screw (1).

Insert shim (4) between main pivot bracket and body and tighten left/right screw (1).

NOTE: For the basic setting, fit seven shims (4).

Tighten left/right nut (2).

Close convertible top (do not lock).

Fig 13: Locating Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The convertible top is now fitted in its basic setting and this may need correcting after the tackstrip is fitted.

Installing Tackstrip:

Attach a butylene tape with a total thickness of 2 mm between tackstrip (2) and convertible top compartment (apply twice if necessary).

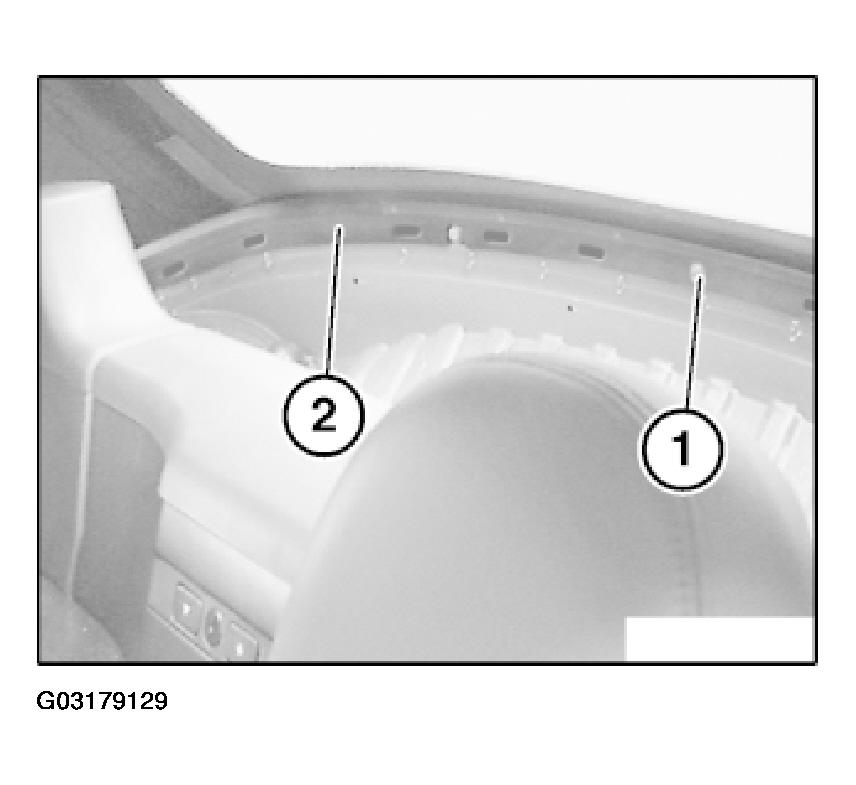

Insert screw (1) in center of tackstrip (2) but do not tighten down.

Fig 14: Inserting Screw In Center Of Tackstrip

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (1) and (2) in the tackstrip (3) (beside B-pillar) on left/right sides but do not tighten down.

NOTE: If necessary, fit a shim on the left/right screw (1).

Fig 15: Inserting Screws And In Tackstrip

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) in center of tackstrip (2).

Fig 16: Tightening Screw In Center Of Tackstrip

Courtesy of BMW OF NORTH AMERICA, INC.

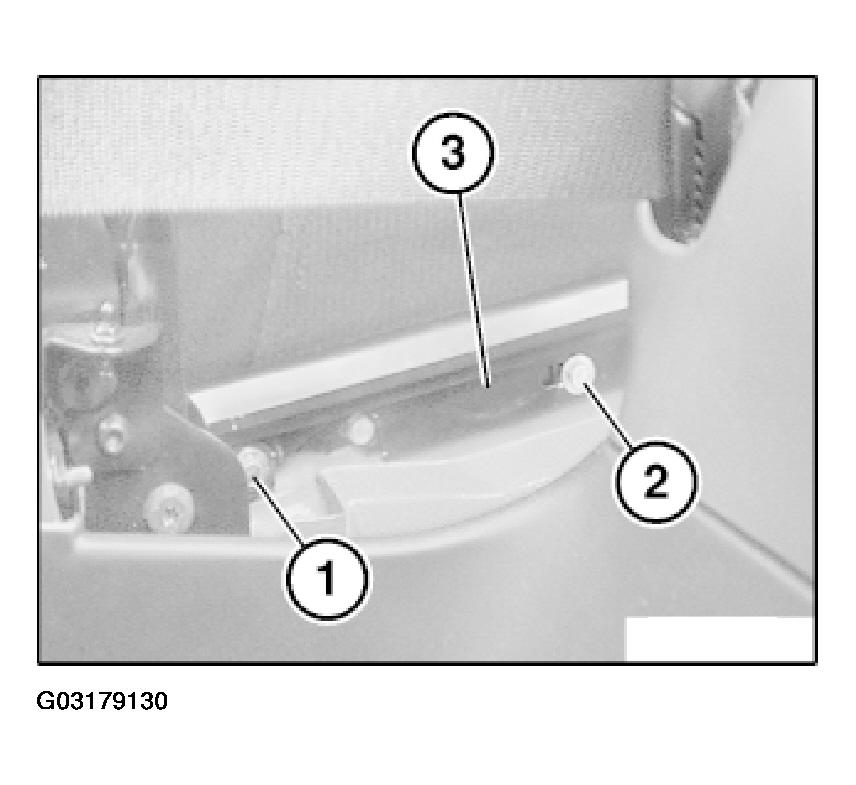

Tighten down screws (1) and (2) to left/right of tackstrip (3) (beside B-pillar).

Fig 17: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

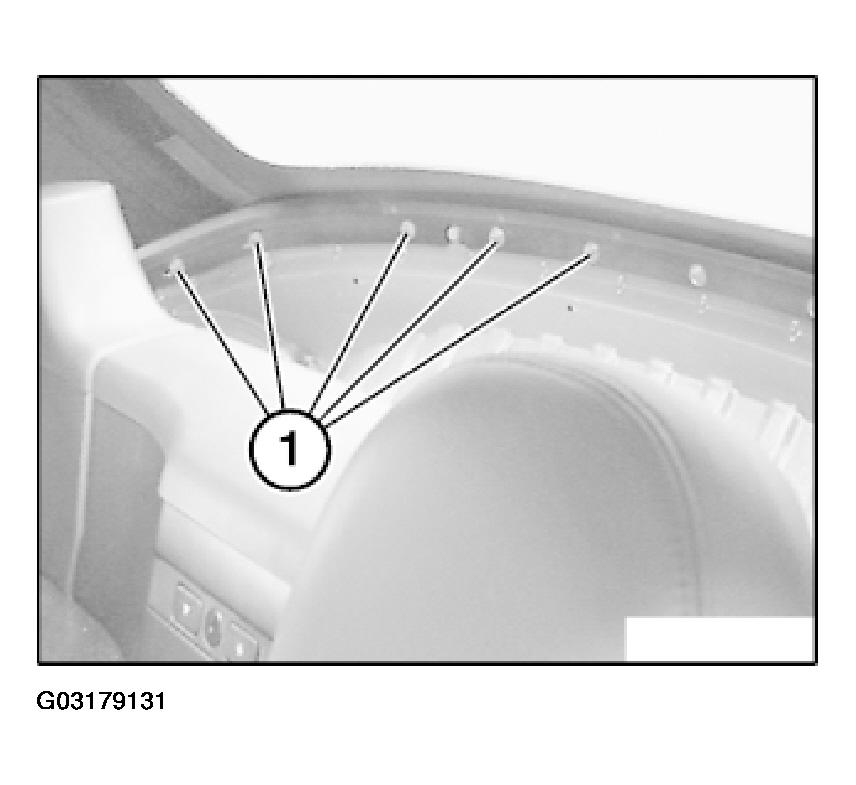

Screw in all remaining screws (1) on left/right sides and tighten down.

Fig 18: Installing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation for "Installing tackstrip" ends here.

Fine Adjustment Of Convertible Top:

Lock down convertible top.

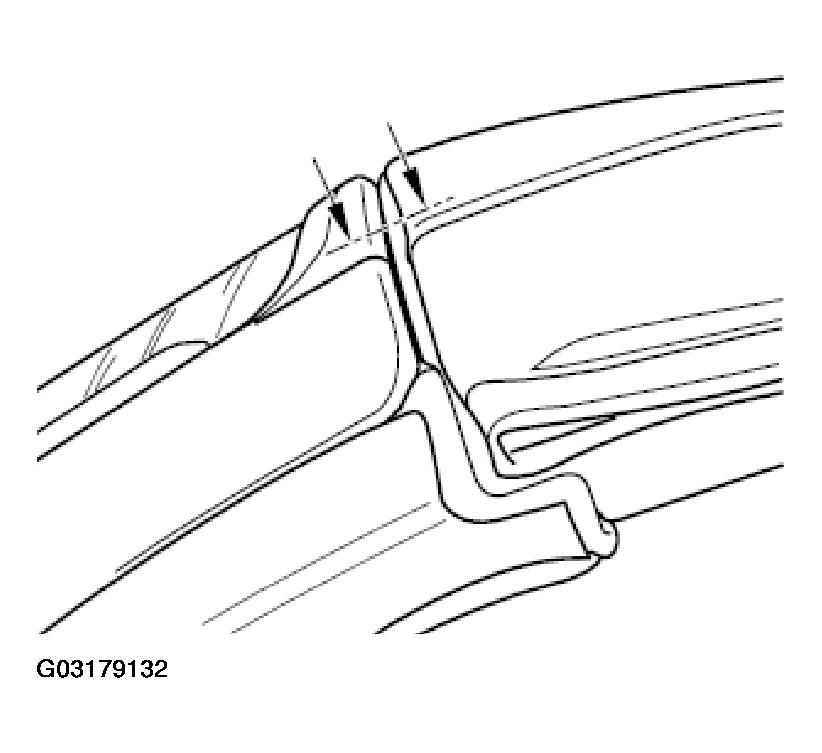

The convertible top must close flush with front of windshield (up to 2 mm lower than the windshield). For correction, where necessary, adjust the locking hooks. Locking hook operates in two directions, longitudinally and downwards, identical to angle of centering pin.

Fig 19: Locking Down Convertible Top

Courtesy of BMW OF NORTH AMERICA, INC.

If the convertible top does not fit in longitudinal direction, change the number of shims (4) in longitudinal direction.

If necessary, open convertible top.

Loosen screw (1) and nut (2) on left/right of main bearing and use appropriate shims (4) to correct any deviation.

Fig 20: Loosening Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down left/right nuts (2) then loosen slightly again.

Tighten down left/right screw (1).

Tighten left/right nut (2).
