51 46 050 Removing and installing/replacing finisher for tail panel, top (Z3 Roadster, M Roadster)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Remove Hazard Warning Triangle. Refer To  00 00... INFORMATION / WARNING LABELS  .

Remove floor mat (1).

Unfasten screws (2) and expanding rivets (3) and lift off finisher strip.

If necessary, unfasten screws (4).

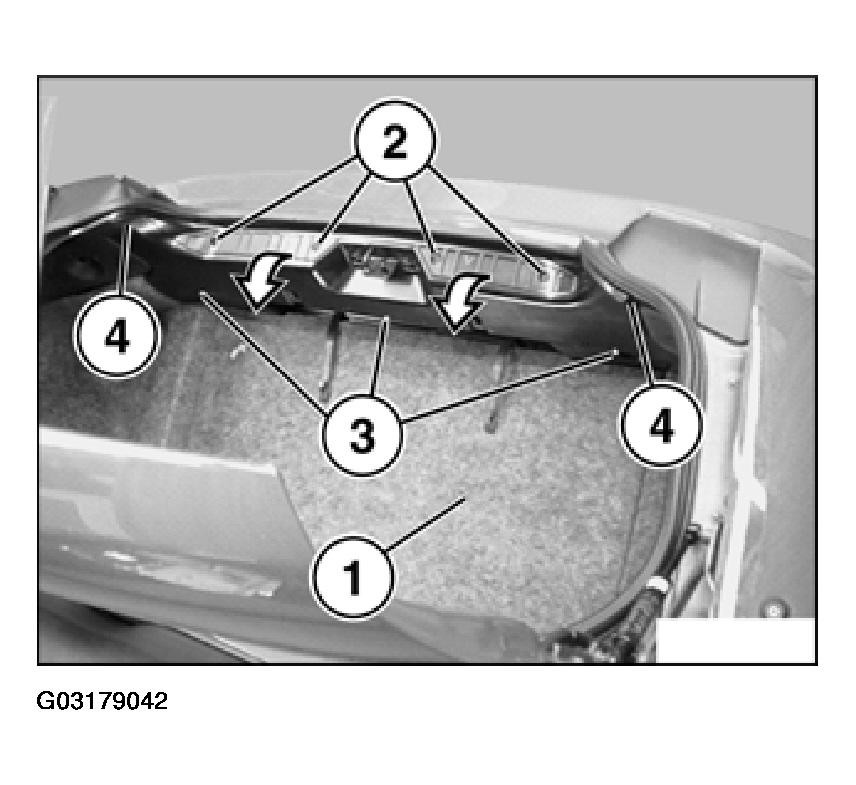

Fig 1: Removing Finisher Strip
G03179042Courtesy of BMW OF NORTH AMERICA, INC.
