51 16 360 Removing and installing glovebox, right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Release rotary clips (1) at bottom and lever out lower trim panel on left (risk of damage) and center.

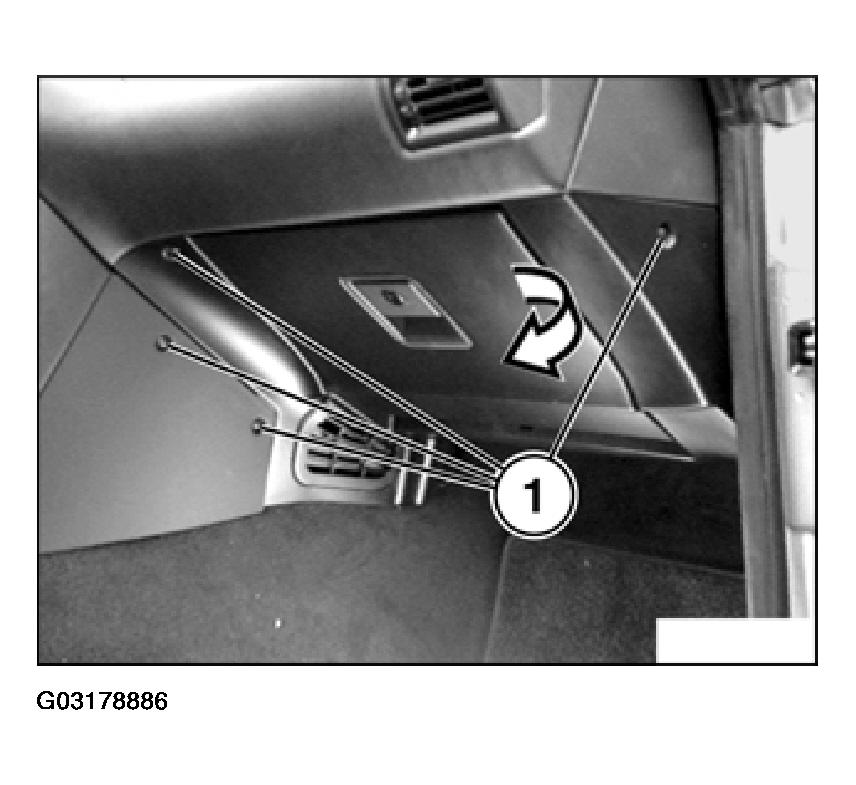

Fig 1: Identifying Rotary Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Open glove compartment cover.

Lift out finisher strips (1) and unfasten screws.

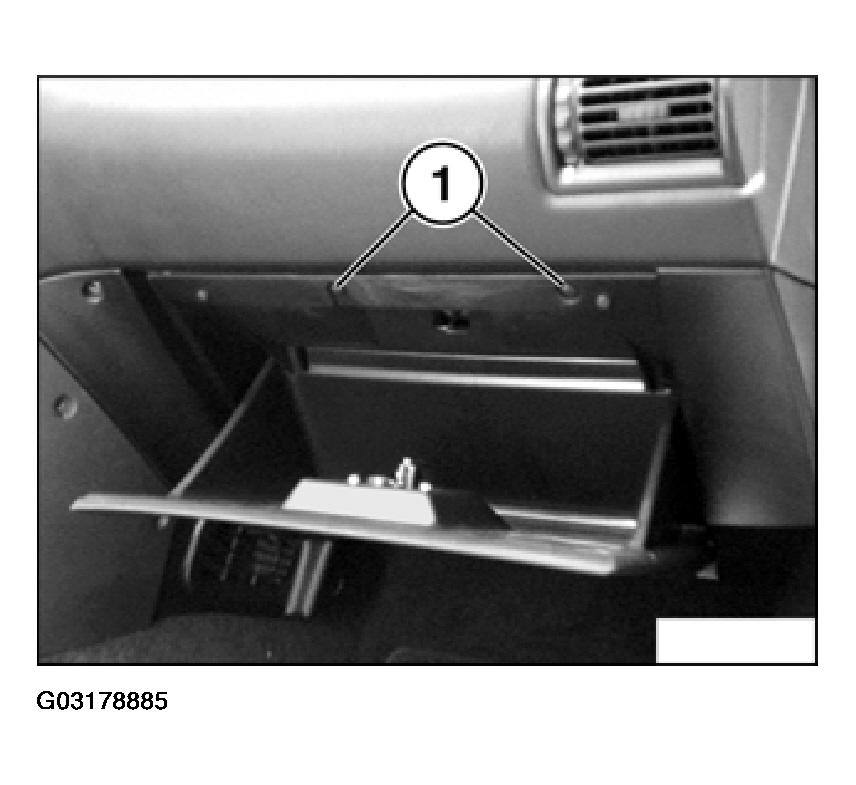

Fig 2: Removing Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Close glove compartment cover.

Lift out finisher strips (1) and unfasten screws. Remove glove compartment outward/downward.

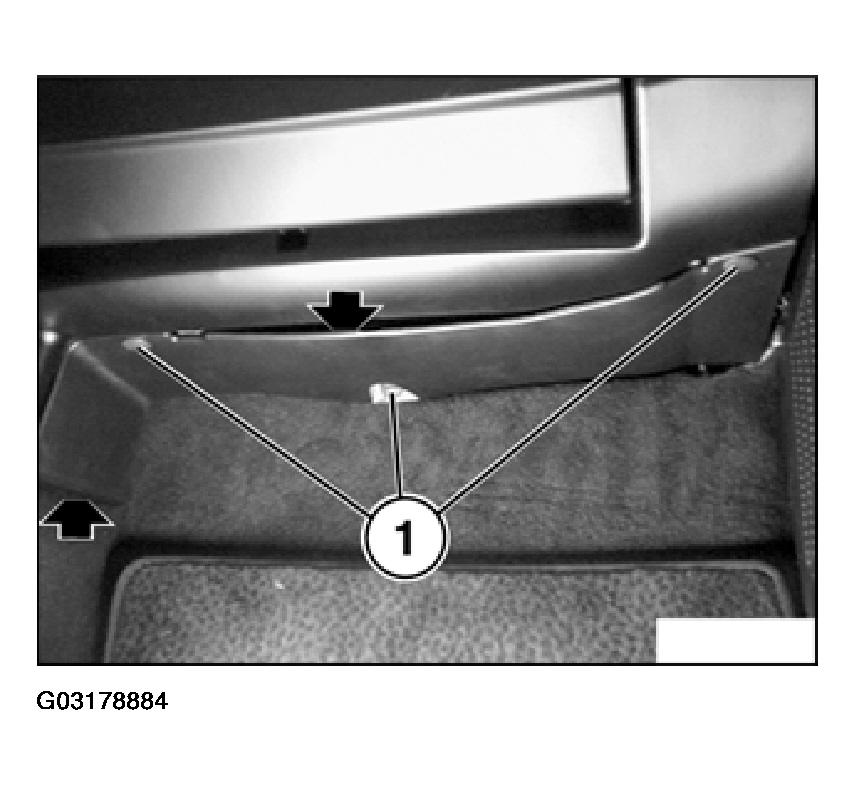

Fig 3: Removing Glove Compartment Outward/Downward

Courtesy of BMW OF NORTH AMERICA, INC.
