51 16 201 Replacing oddments tray (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW Z3 and 2001 BMW Z3. However, it is still accessible from the selected car via links, so may be relevant.

Removing center console, refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE) .

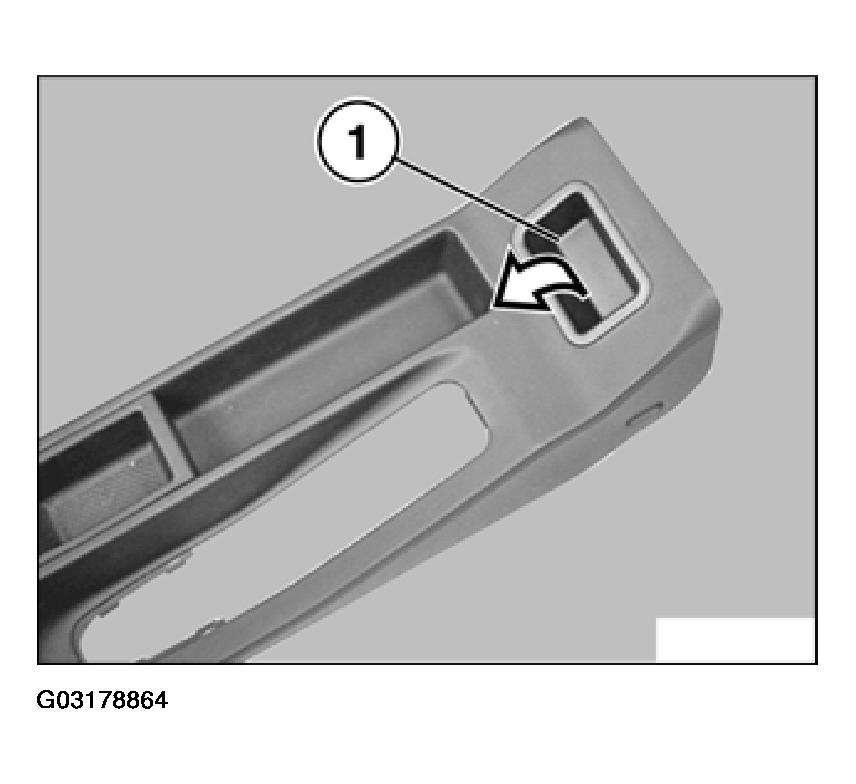

Unclip tray (1).

Fig 1: Removing Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

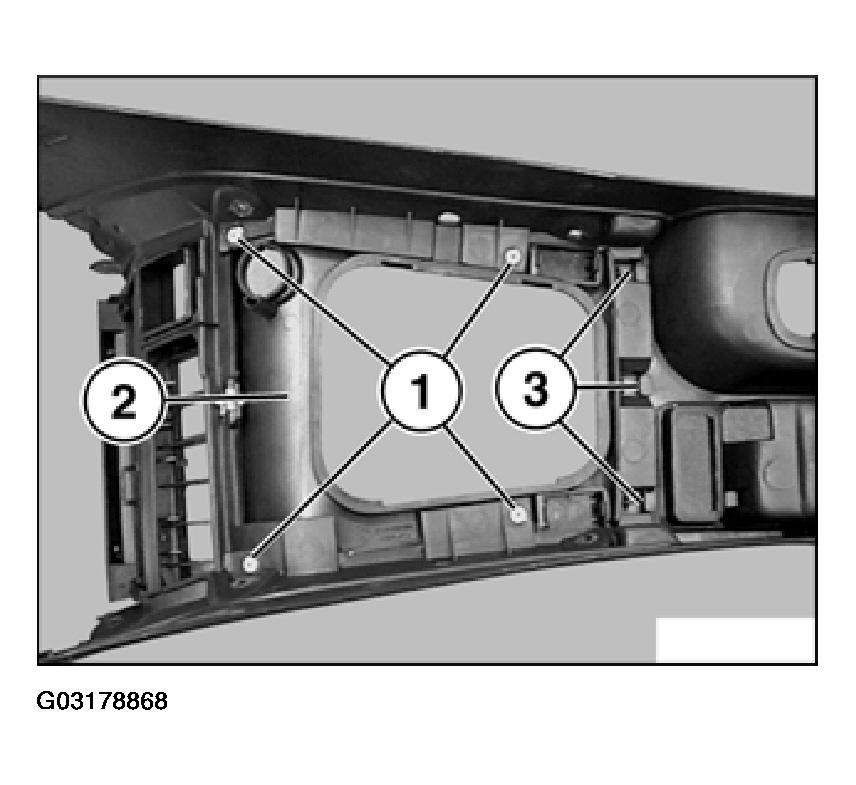

Clip tray (1) correctly into frame (2).

Fig 2: Installing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

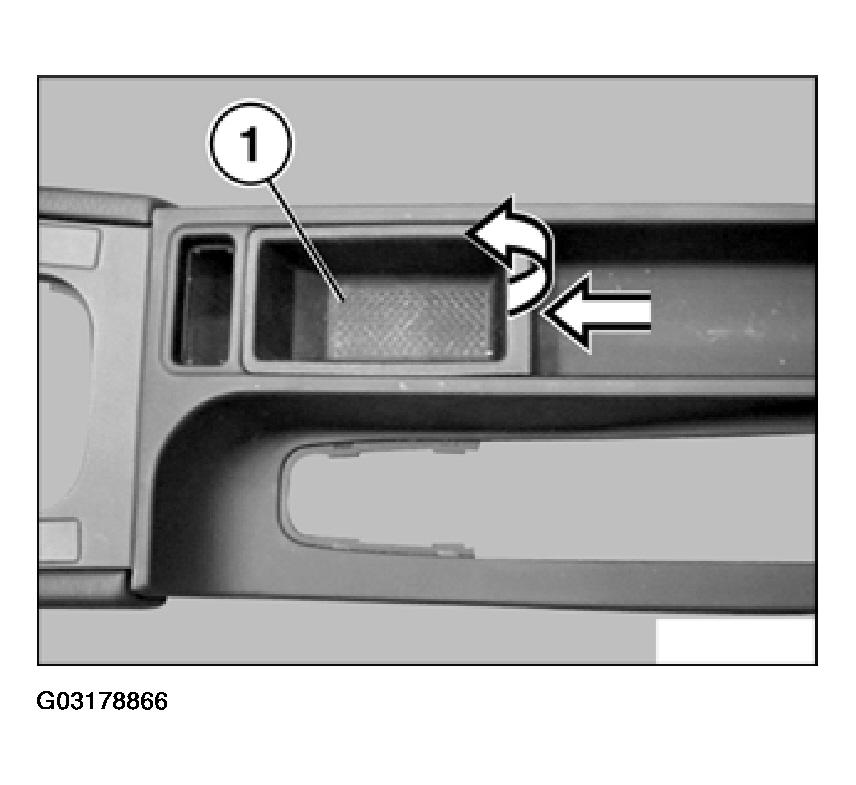

Unclip tray (1).

Fig 3: Removing Tray

Courtesy of BMW OF NORTH AMERICA, INC.

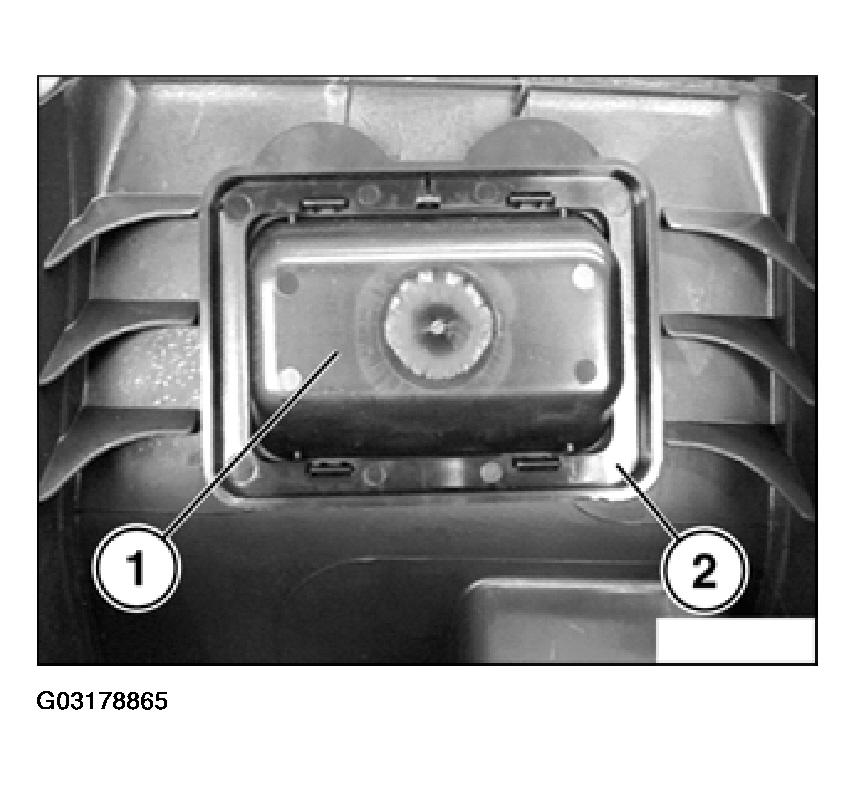

Remove cigar lighter (1).

Fig 4: Removing Cigar Lighter

Courtesy of BMW OF NORTH AMERICA, INC.

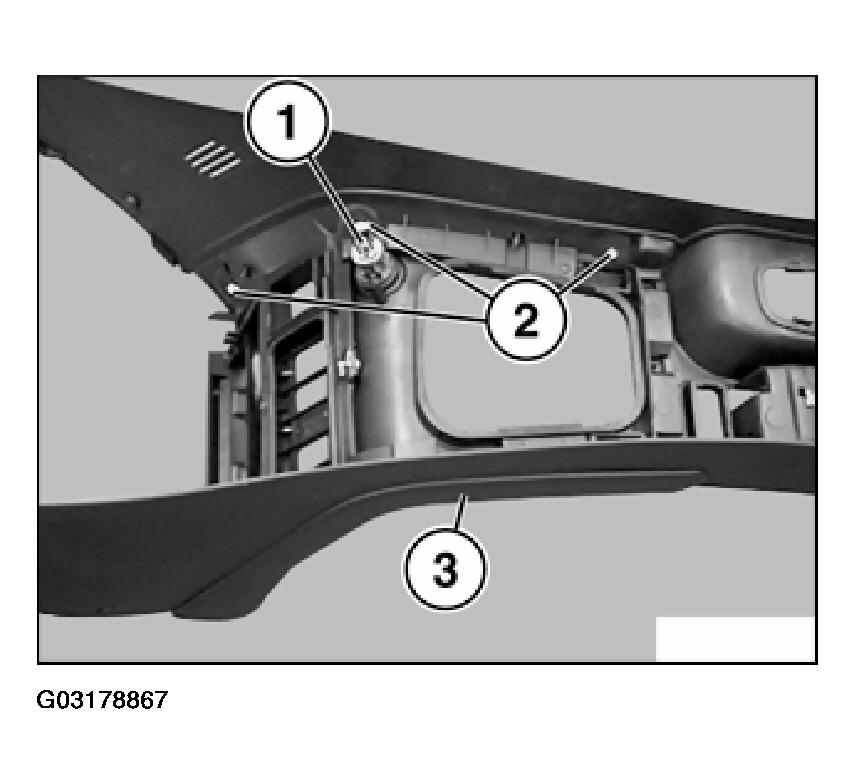

Unfasten left/right screws (2) and remove left / right finisher strips (3).

Unfasten screws (1) and remove selector lever finisher strip (2).

Installation:

Insert correctly in supports (3).

Fig 5: Removing Selector Lever Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

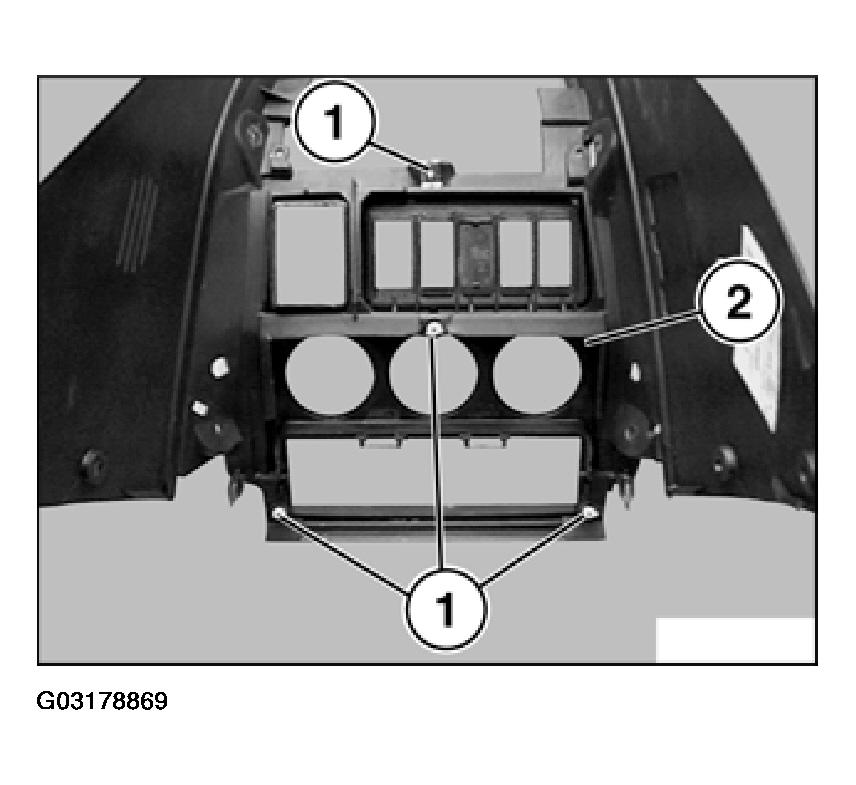

Unfasten screws (1) and remove radio finisher strip (2).

Fig 6: Removing Radio Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

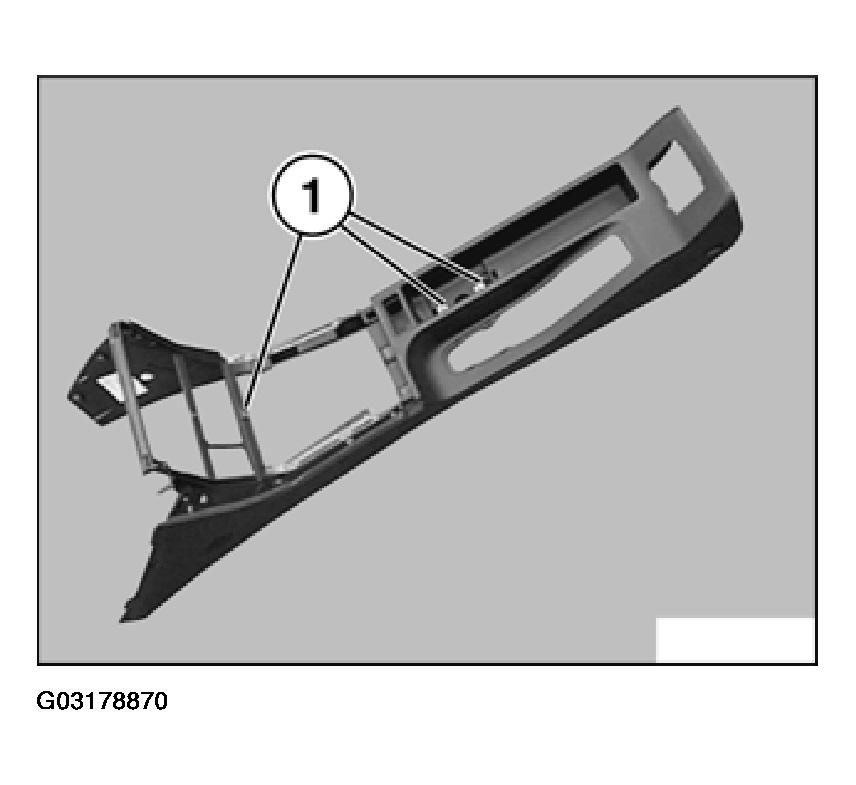

Remove speed nuts (1).

Fig 7: Removing Speed Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
